11.7.5 Connecting the APS or APS-NA to the Condair GS

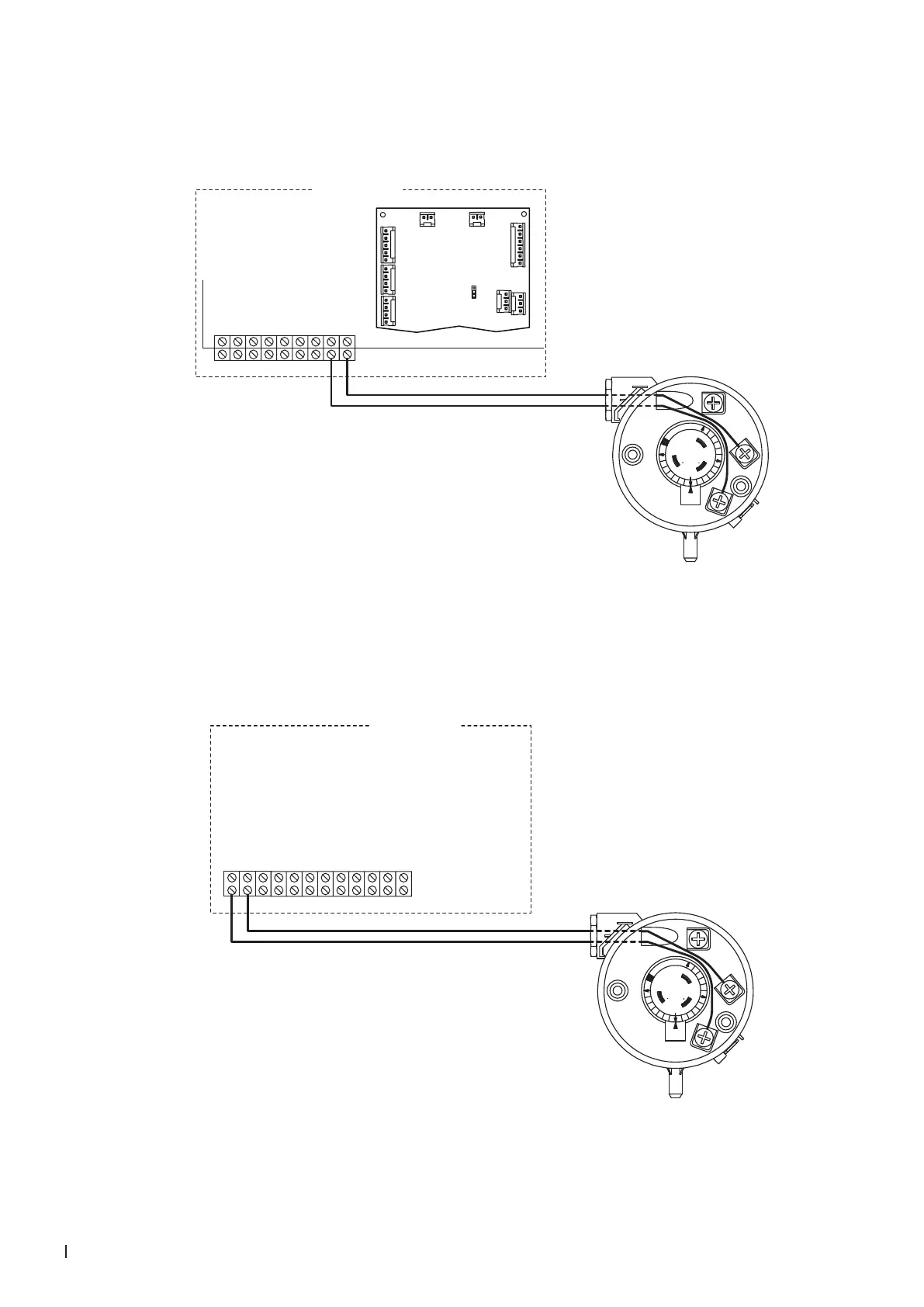

Connect the Condair APS or APS-NA to the corresponding terminals on the terminal block of the Condair
GS according to the following diagram.
1
2
3
4
5
67
89
24VAC
Safety Loop
GND GND
FTBD
CH1 CH2
+24 VDC
Condair GS
J1
J10
J3
J7
J8
J1
J2
JP2
24V 10V
APS/APS-NA
1
3
2
Driver board
Condair GS
11.7.6 Connecting the APS or APS-NA to the Condair SE
Connect the Condair APS or APS-NA to the corresponding terminals on the terminal block of the Condair
SE according to the following diagram.
12
11
10
9
8
76
54
321
24VAC 0-10V VDC Out On/Off Loop Ground Actuator Power Actuator Power Control Signal Limit Signal (SETC only) Full Tank Blowdown Ground Ground 5 VDC
Condair SE
APS/APS-NA
1
3
2
