3. Hardware Setup
16
BX-220 User’s manual
Hardware Setup
- Before you start, be sure that the power is turned off.
- Remove only those screws that are explained. Do not move any other screw.
Inserting an Embedded CFast Card
One CFast card (Type I) can be embedded. BX-220D-DC7x121x come with CFast cards with the OS
already installed.
(1) Detach the side panel and insert the CFast card.
(2) Reattach the side panel and tighten the screws to secure it.

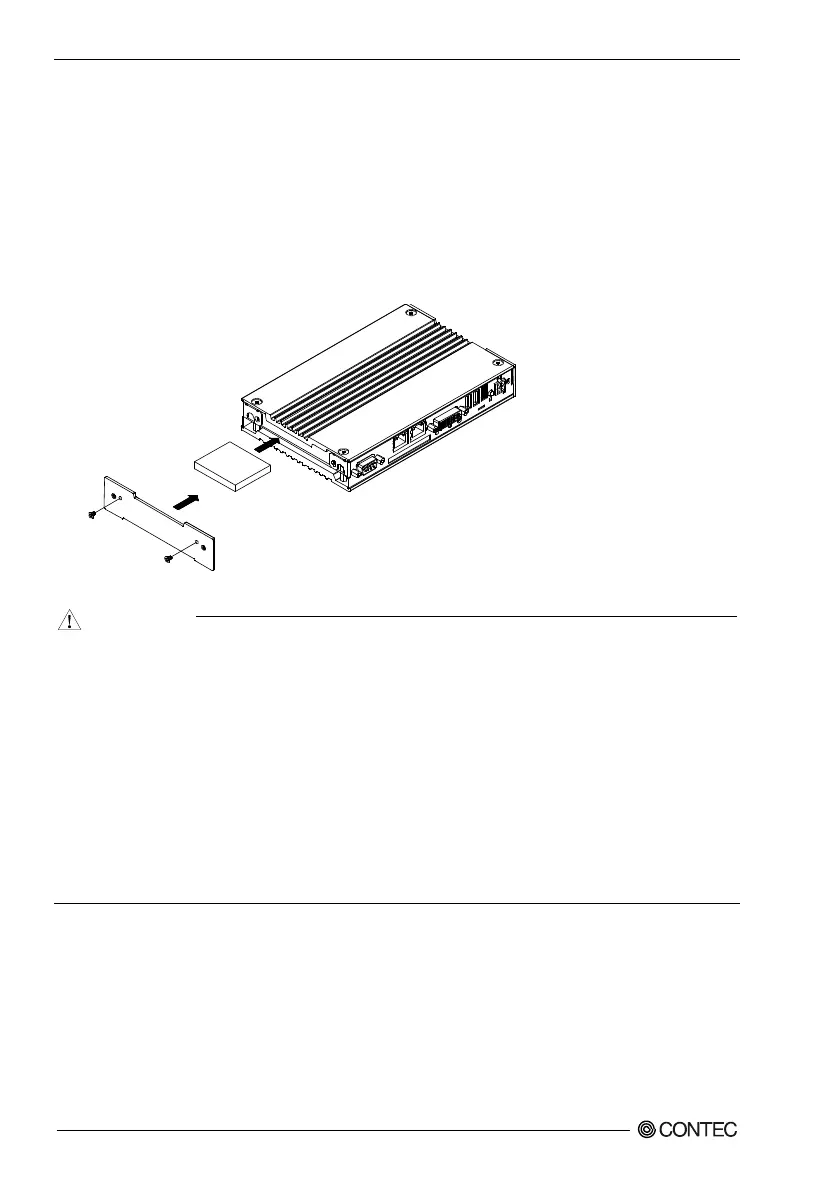

Figure 3.1. Inserting an Embedded CFast Card
-
Screw holes may be damaged if screws are tightened with a torque greater than the specified torque.
The specified tightening torque is 5 - 6kgf
⋅
cm.
-
If you use a CFast card other than the optional card, we cannot guarantee the specifications of this
product. To use the product within its specifications, be sure to use the optional CFast card.
-
To prevent potential damage caused by static electricity, take appropriate anti-static measures (for
example, wearing an anti-static wristband) when inserting or removing the CFast card.
-
Do not touch the electronic board components when inserting or removing the CFast card.
-
Do not touch the terminals on the CFast card. Doing so may damage the card.
-
Be careful not to mistake the orientation of the CFast card when inserting it. Also, do not use
excessive force when inserting the CFast card. Doing so may damage the connector.
-
Do not drop or otherwise subject the CFast card to strong impacts before insertion. Doing so may
damage the card.
