3. Hardware Setup
BX-220 User’s manual
19
Fastening the Cable
This product comes with clamps for fixing cables.
Fastening the LINEOUT, USB Cable
(1) The system unit has a hole for attaching cable clamp to USB removal prevention fitting. Using a
cable clamp for a cable with lock-less connector, such as the LINEOUT and USB Cable, prevents the
connector from being unplugged. Use the cable ties and cable clamps appropriately according to the
connecting states and wiring directions of cables.
*1
Wind the USB cable around
the USB removal prevention fitting.
*2
No. of connected USB cables and winding patterns
(removal prevention fitting viewed from above).
3 USB cable
USB remov
al prevention
clamp
2 USB cable 1 USB cable
*1 Attached screw (M3 x 6)
*2 Attached USB removal prevention clamp.

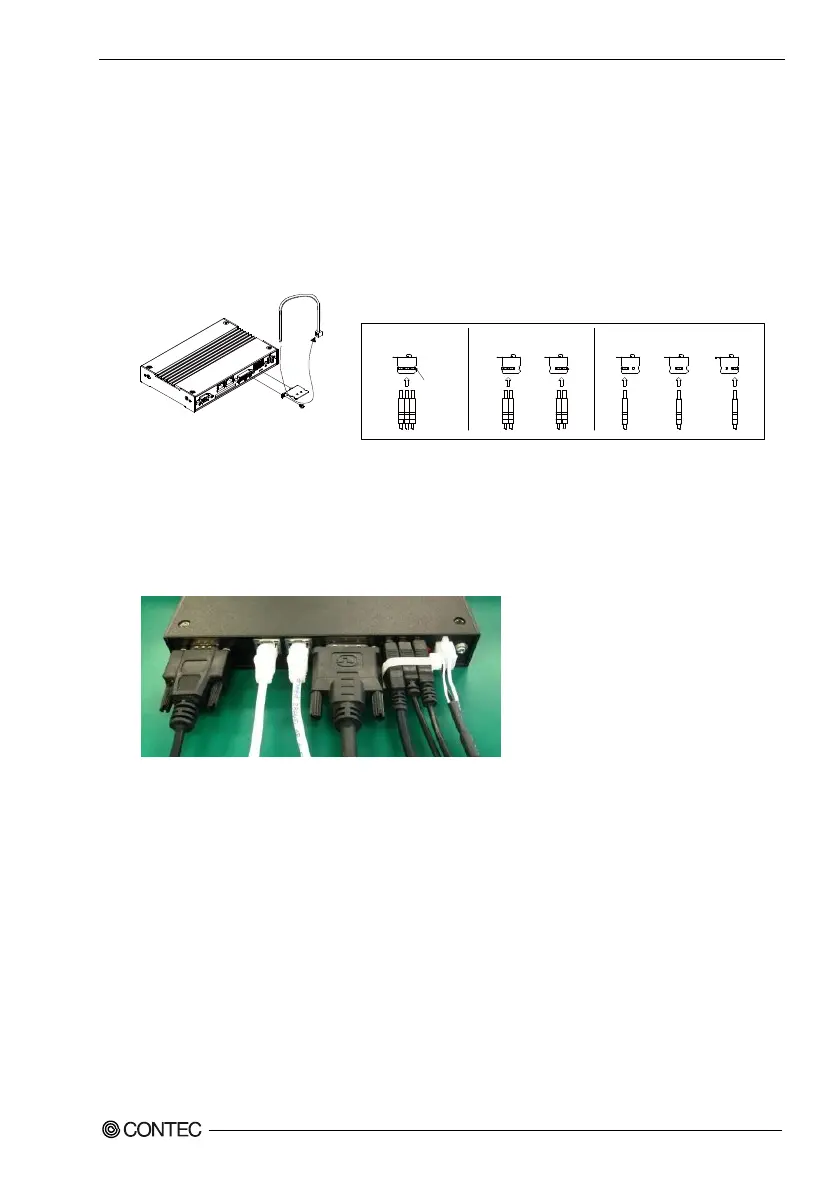

Figure 3.5. Attaching the cable clamp
(2) The photo below shows an example of using a cable clamp. Fix the cable with a clamp without
applying stress to the connector.
Figure 3.6. Using example of cable clamp
