5. Each Component Function
60
BX-220 User’s manual
USB3.0 Port : USB3.0
This product is equipped with 1 channel for USB 3.0 TYPE-A interface.

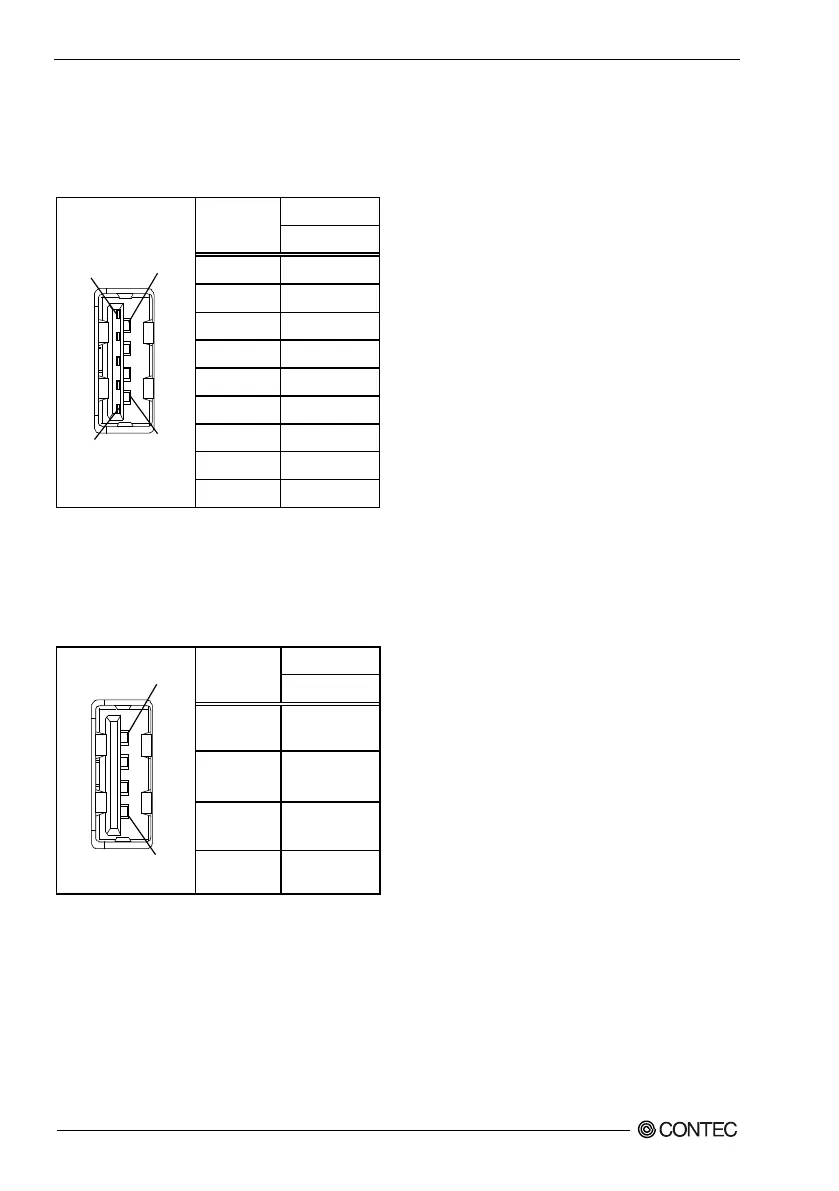

Table 5.7 USB3.0 Connector
1
9
5 4
Pin No.
Signal name
USB3.0
1
USB_VCC
2
DATA-
3
DATA+
4
USB_GND
5 SSRX-
6
SSRX+
7 USB_GND
8
SSTX-
9 SSTX+
USB2.0 Port : USB2.0
This product is equipped with 2 channel for USB 2.0 TYPE-A interface.
Table 5.8 USB2.0 Connector
1
4
Pin No.
Signal name
USB2.0
1 USB_VCC
2 DATA-
3 DATA+
4 USB_GND
