USB Ports
The BOX-PC is equipped with two USB interface channels.

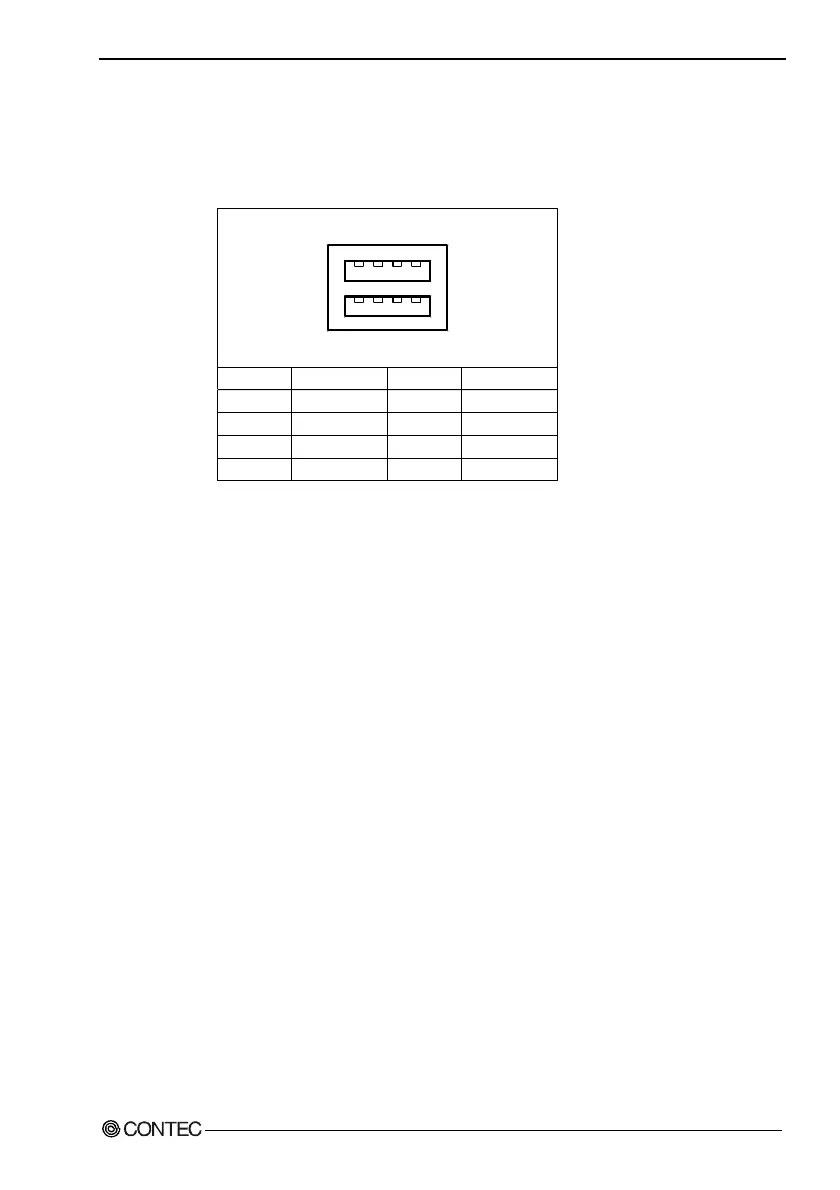

Table 5.25. USB Connector
Pin No.
A1
A2
A3
A4
Signal
USB0 Vcc
USB0 -Data
USB0 +Data
USB0 GND
Pin No.
B1
B2
B3
B4
Signal
USB1 Vcc
USB1 -Data
USB1 +Data
USB1 GND
B1 B4
A1 A4
