Expansion Slots (CP and C4P Model)
CP model is equipped with two PCI/ISA slots to allow either a PCI
or ISA bus-type board to be mounted. The C4P model has two
PCI slots for accepting only PCI boards as well as two PCI/ISA
slots.
Board Dimensions Allowed
240mm(Max.)
122mm(Max.)

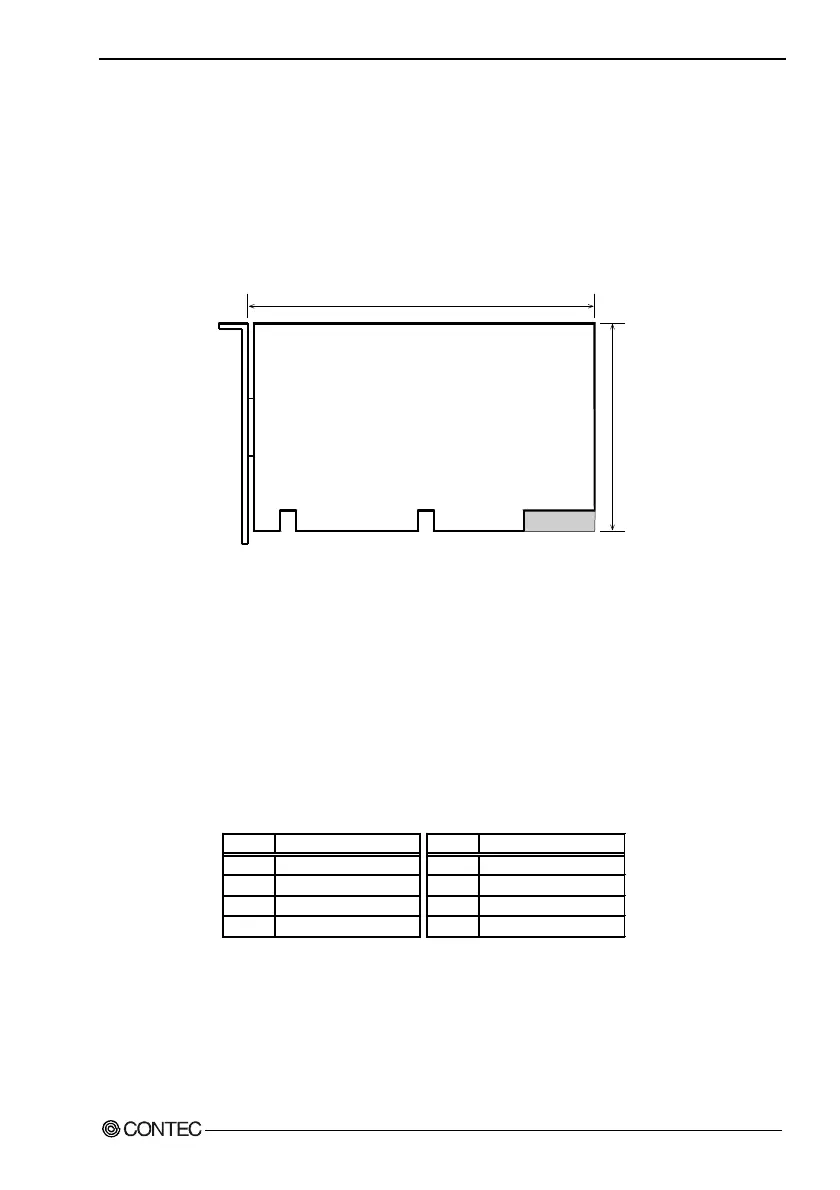

Figure 5.24. Expansion Board Dimensions
Note!
A board that uses the back of the board edge connector (the shaded
area in the figure) may not be mounted.
Power Supply to Expansion Slots
The following table lists the voltage that can be supplied to a board
in an expansion slot and the total current capacity of all slot:
Table 5.32. Expansion Slots
Voltage Current capacity (Max.) Voltage Current capacity (Max.)
+5V 2A +5V 4A
-5V Not supplied -5V Not supplied
+12V 0.5A +12V 0.5A
-12V 80mA -12V 80mA
<IPC-BX/M600(PCW)CP> <IPC-BX/M600(PCW)C4P>
Note!
Make sure that the total current consumption by the boards
installed in the expansion slots does not exceed the above current
capacity.
