3. Hardware Setup
24 User’s Manual
Installation Requirements
The BOX-PC can be installed in any orientation (1) through (5).
Avoid orientation (6) since it might not adequately dissipate heat.
Similarly, to maintain the ambient temperature within the range
specified in the specifications, ensure a clearance between the unit
and surrounding equipment of at least 100mm for the top and rear
and 50mm for the bottom and sides.
Installation Orientation
(1)
(2)
(6)
(5)(4)(3)
Floor
Wall
Wall
Ceiling
Connectors
Wall
Connectors
Wall

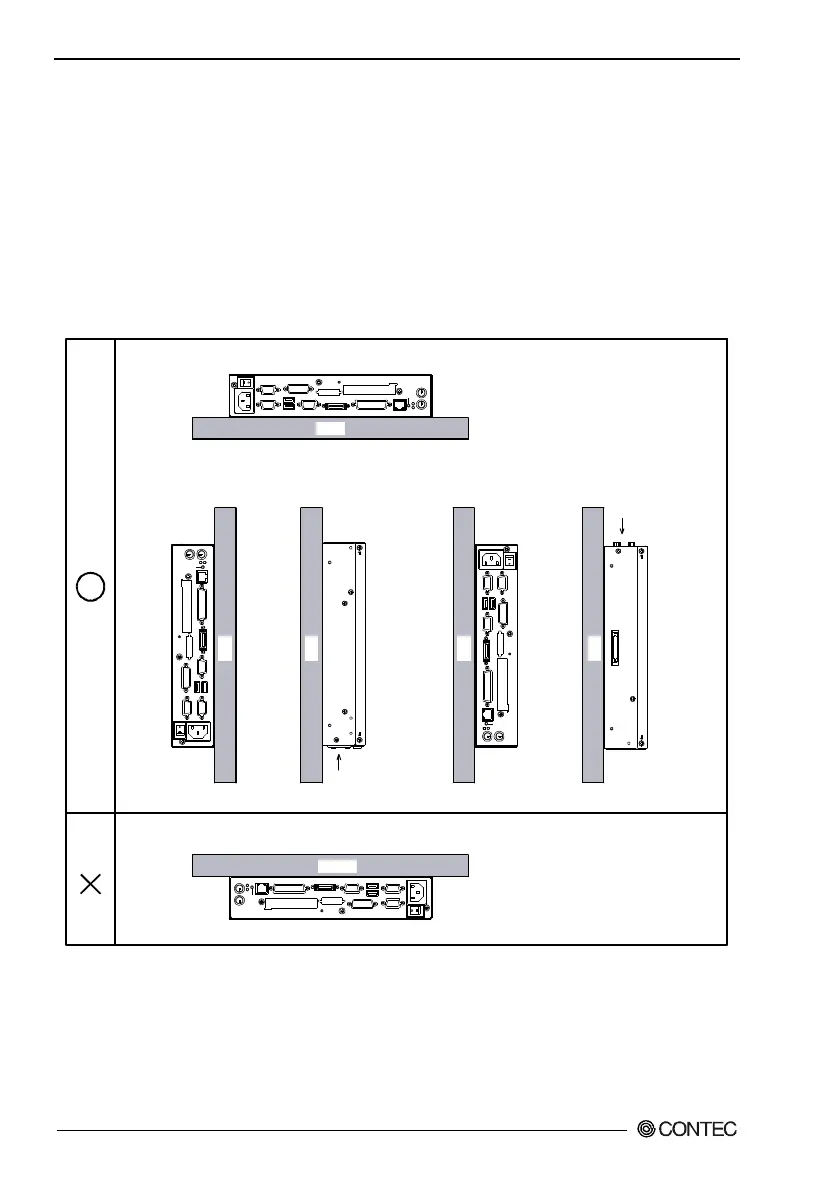

Figure 3.10. Installation Orientation
