MAINTENANCE
!
WARNING:
Never use a water jet (power washer) to clean the exterior of the unit.
!
WARNING:
Do not store explosive substances, such as aerosol cans with a flammable
propellant in this unit.
The Helix unit is capable of using syrups with particulate matter up to 1/8” in size.
REPLACING SUPPLIES

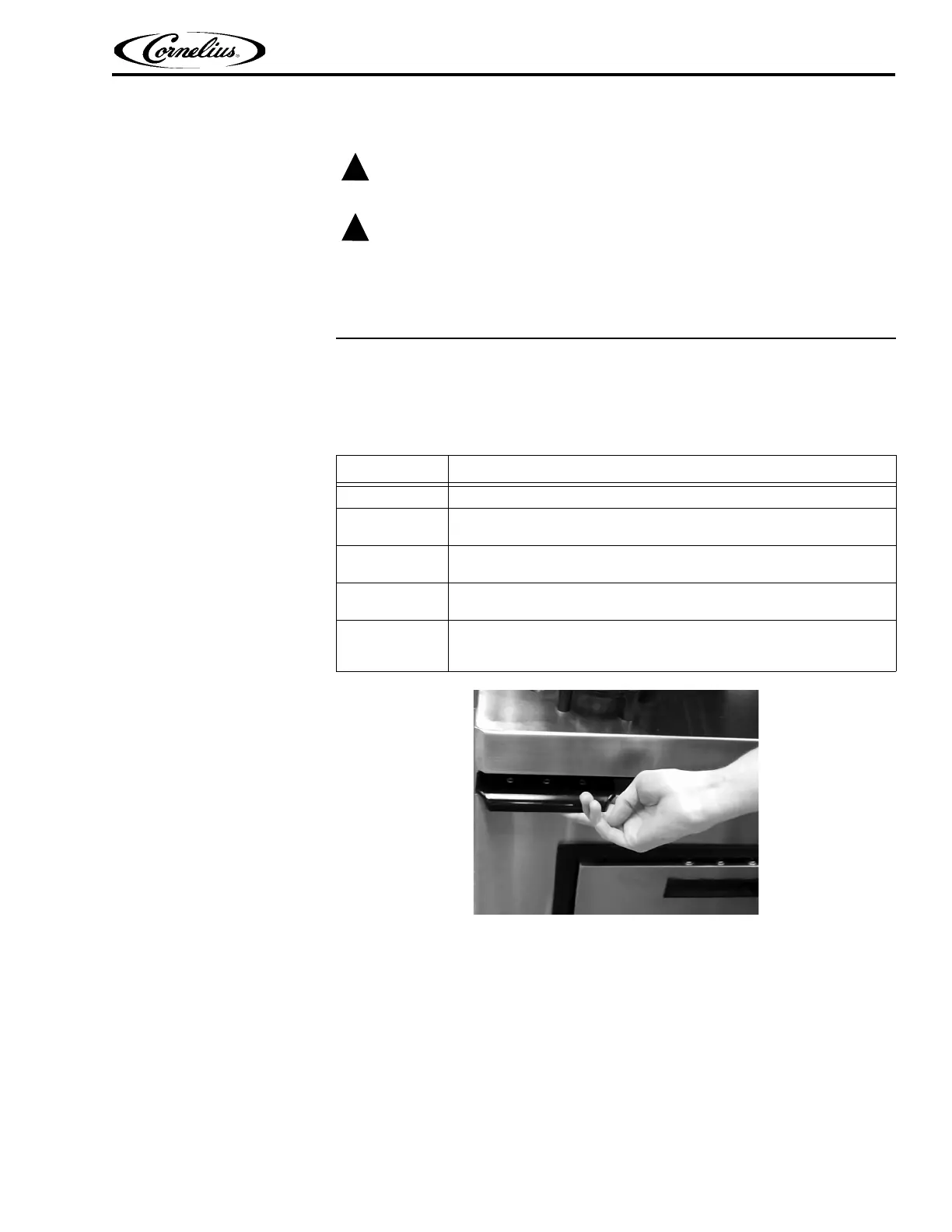

To replace a product bag, perform the procedure in Table 12.
Figure 22.
Table 12.
Step Action
1 Open the product door, shown in Figure 22.
2
Remove the tray containing the empty product bag, shown in Figure 23.
Make sure to close the cabinet door after removing the tray.
3
Remove the bag from the tray by pulling the BIB connector up and
unsnapping it from the tray.
4
Replace the product bag in the tray and snap the BIB connection into
the tray.
5
Place the tray into the appropriate shelf and make sure the BIB connec-
tion is snug on the nozzle, as shown in Figure 24. Make sure the cabi-
net door is completely closed.
