⚫ Figure 1-128
⚫ Step 3 Set corresponding parameters. Step 4 Click Apply.
1.7.2.4.1 Tripwire
⚫ When the detection target crosses the warning line along the set direction, the system performs an alarm
linkage action.
Step 1 Select Main Menu > AI > PARAMETERS > IVS.
In the Type drop-down list, select Tripwire. See Figure 1-129.

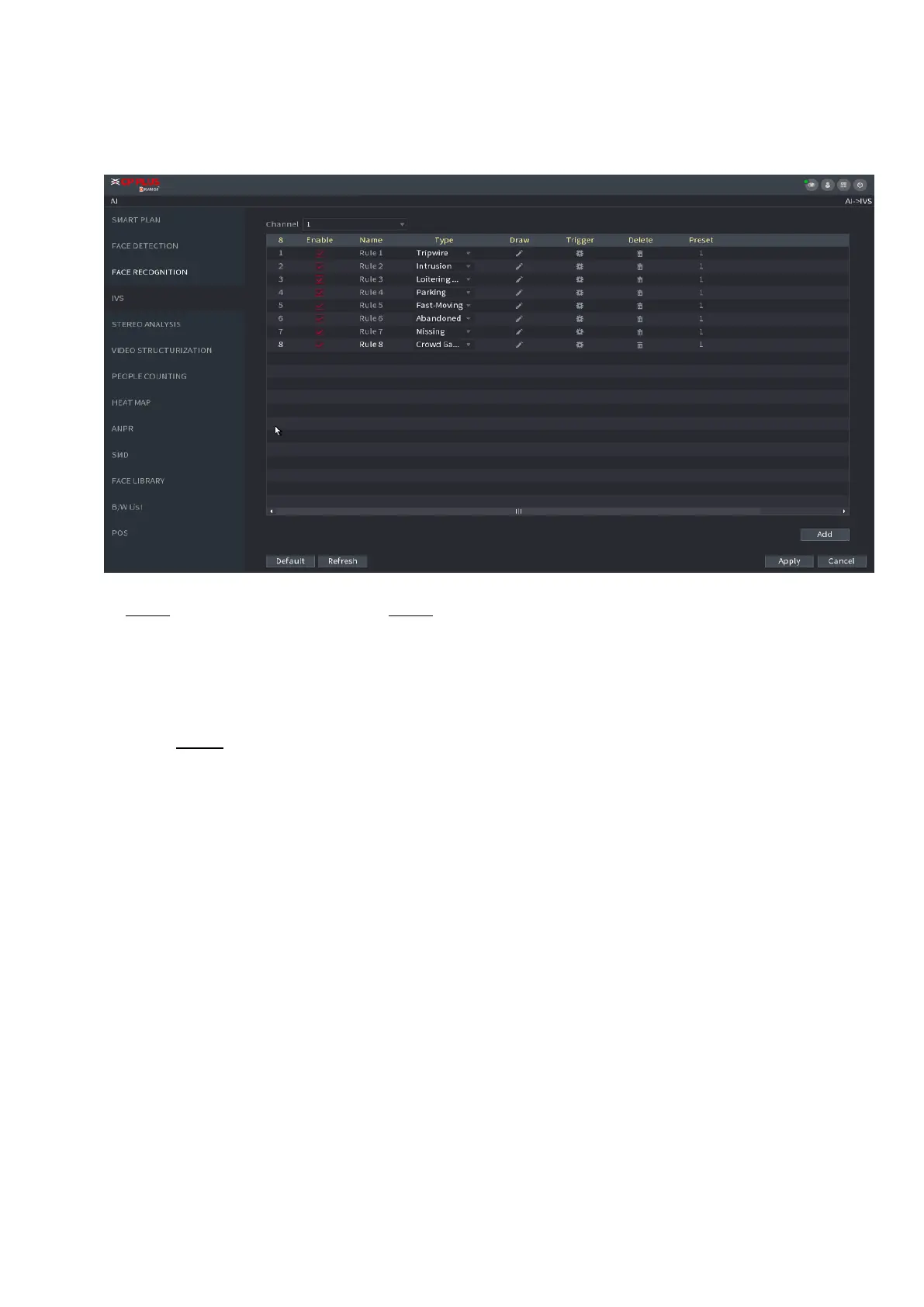

Figure 1-129
