102
3. Q(U) Curve：Q(U) curve mode. Using the curves to set the reactive
power setpoints (See Figure 6-16). The reactive power
compensation changes according to the grid voltage. These
functions are only available for IEEE-1547 and Rule21 grid
standards.

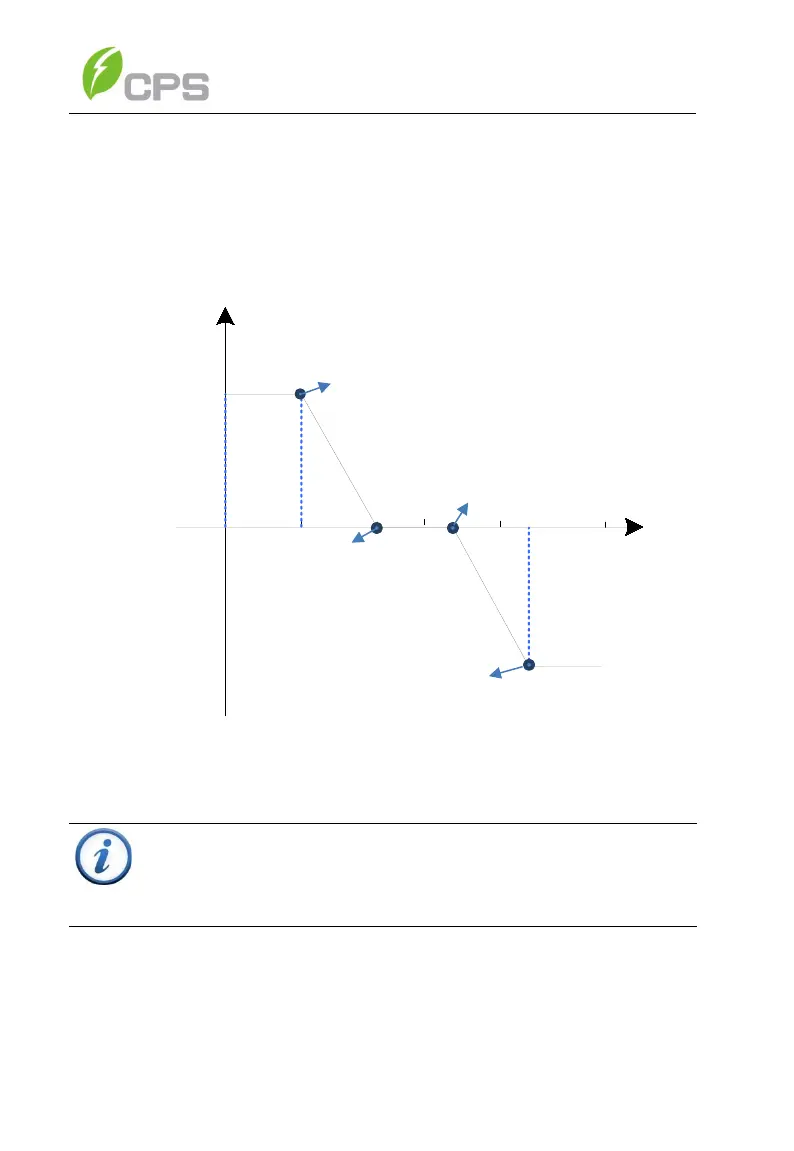

Figure 6-16 Q(U) Curve Mode
INSTRUCTION:
The Q(U) curve function is available for IEEE-1547 and Rule21 grid
standards.
Table 6-9 lists the parameters for PF Set and Q(U) Curve modes. Press
ENT to start the modes after the parameters are set.
Capacitive
Q
(%)
_
+
Inductive
(
QuCurveU
2
i
,
QuCurveQ
2
i
)
U
(
V
)
(
QuCurveU
1
i
,
QuCurveQ
1
i
)
(
QuCurveU
1
,
QuCurveQ
1
)
(
QuCurveU
2
,
QuCurveQ
2
)
