52

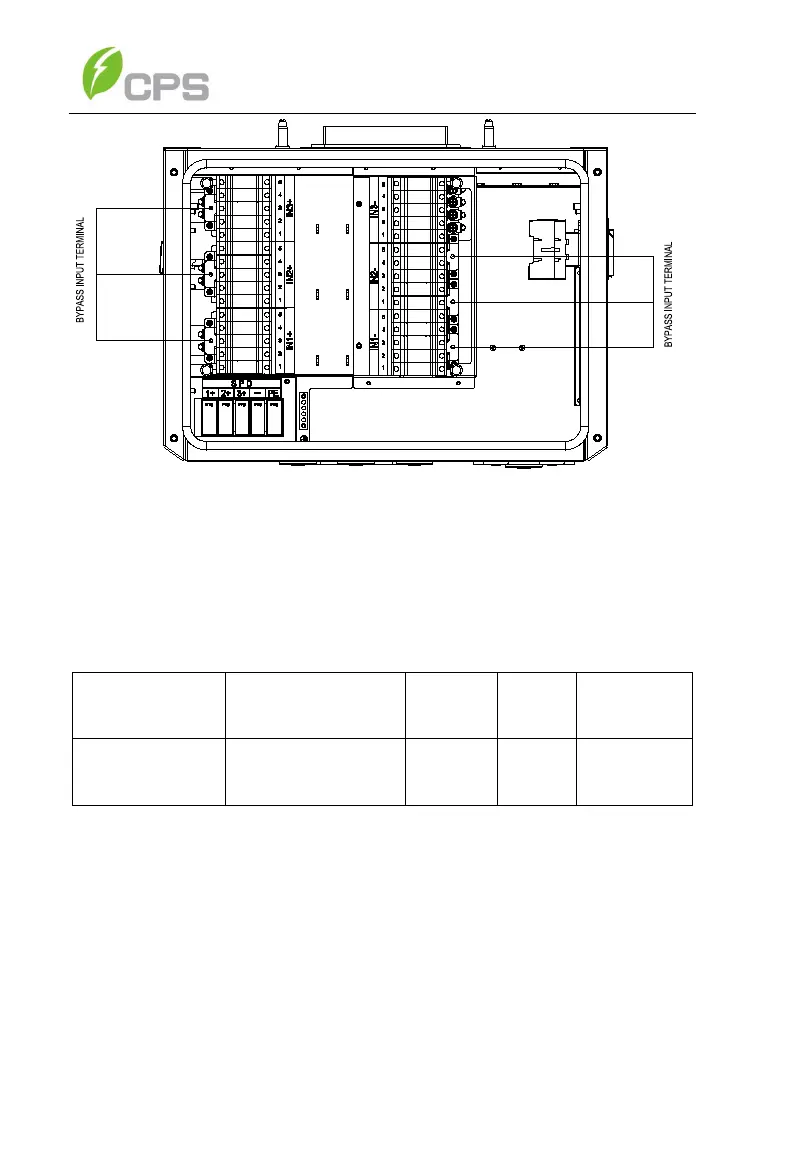

Figure 3-25 Bypass Terminal option installed within the Standard wirebox
Before terminating the PV conductors to the Bypass Terminals, verify
connector specifications (Table 3-9) and always verify polarity to avoid
risk of reverse polarity.
Table 3-9 Connector Specifications
Bypass
Terminal Kit
Conductor
Termination
Wire
Range
Wire
Type
Min Torque
50/60KTL M6 Machine Screw
#10 -
#1AWG
AL/CU
6.0N.m
(53.1 lbf-in)
