14 • HD-MD4X2-4KZ-E and HD-MD4X1-4KZ-E Web Interface Configuration Guide — Doc. 8907B

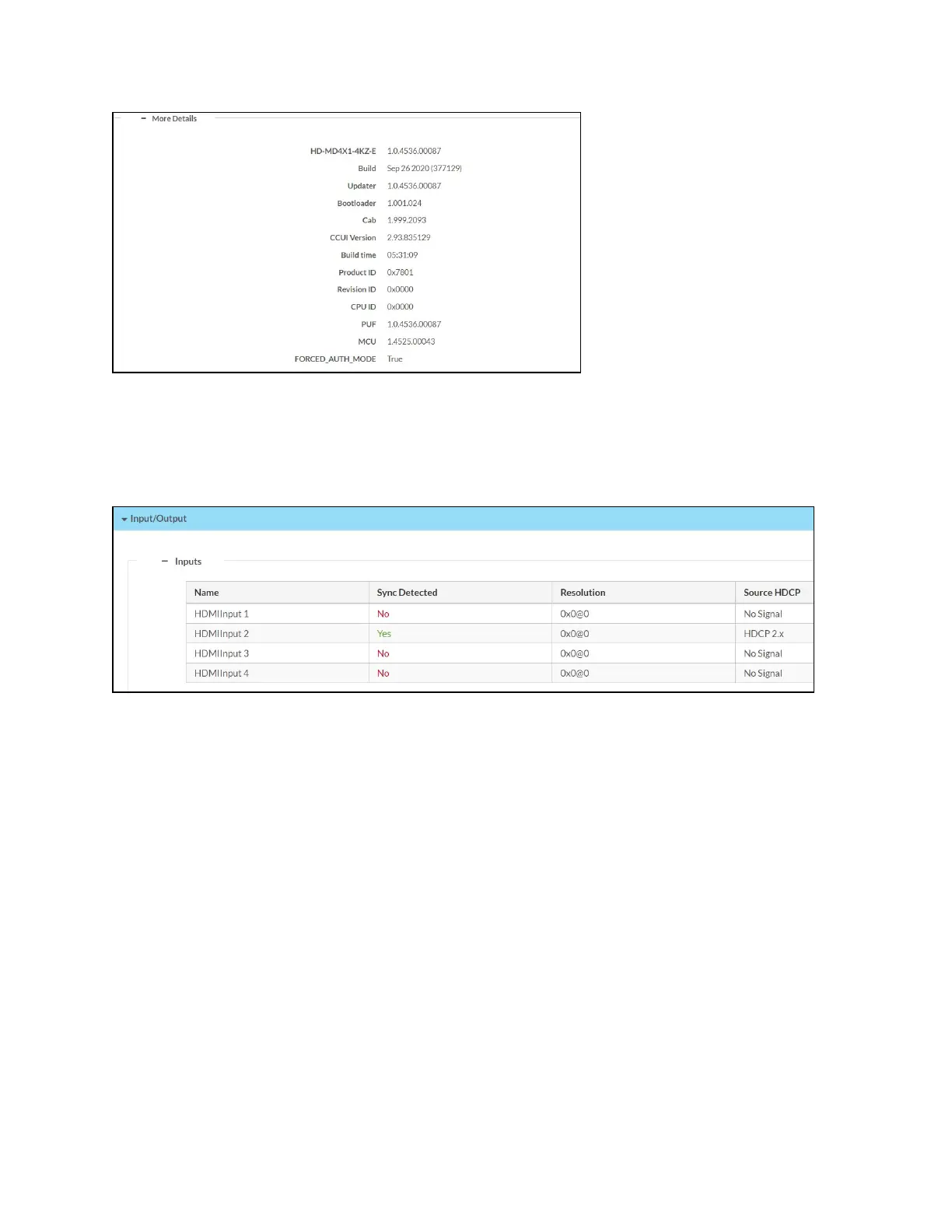

Input/Output
The Input/Output section displays information about available inputs and outputs of the AV
switchers.
Inputs
l
Name: Displays the name of the input source.
l
Sync Detected: Displays Yes if connection is detected or No if connection is not detected.
l
Resolution: Resolution when video with valid resolution is detected. If no video is detected,
the reported resolution will be 0x0@0.
l
Source HDCP: Reports HDCP 1.x or HDCP 2.x when the HDCP source is connected. Reports
Non-HDCP when a non-HDCP source is connected and reports No Signal when no source
is connected.
