Product Manual — Doc. 7750C TST-902 • 41

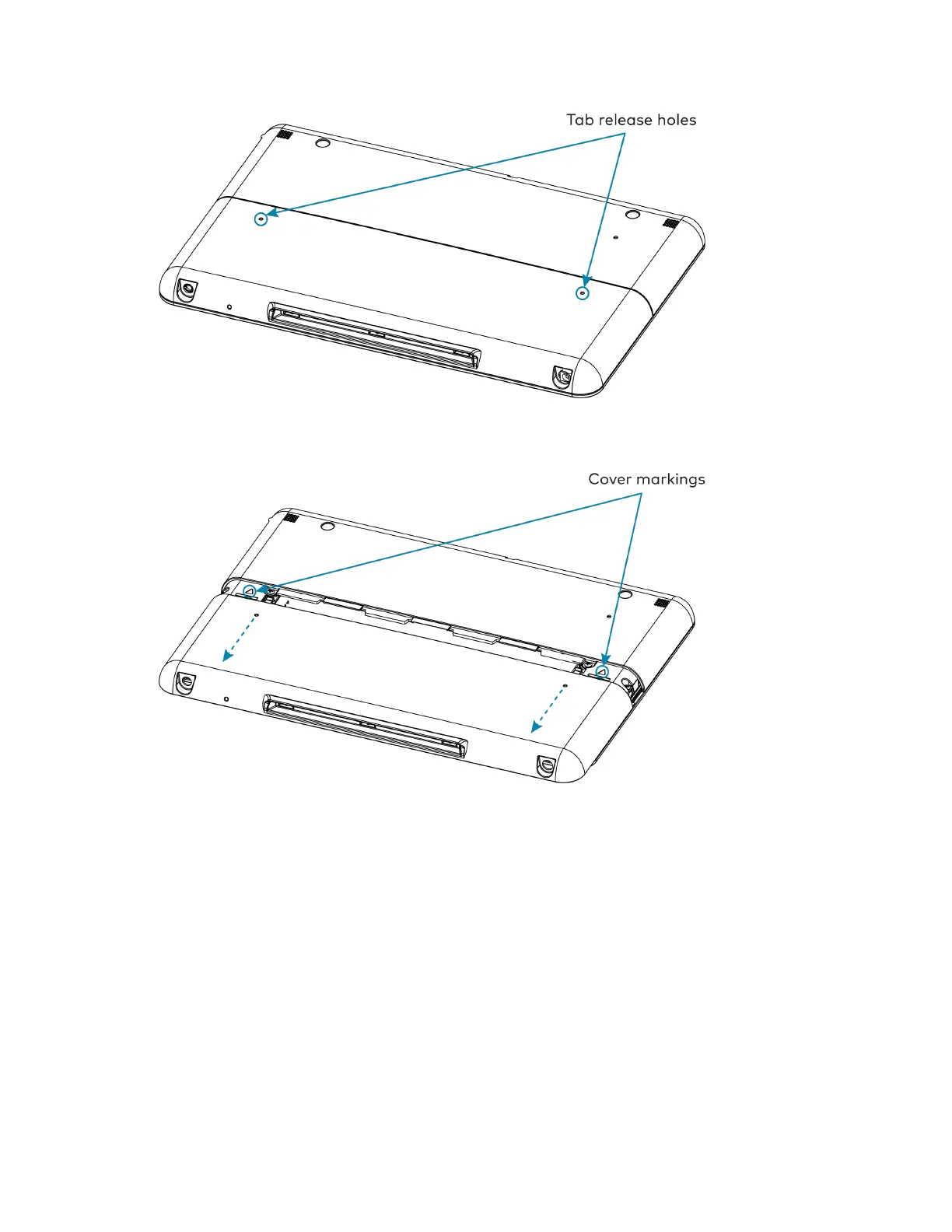

3. Slide the bottom cover downward about 3/4in. (19mm)to expose the cover markings.
4. Lift the bottom cover upward to remove it from the touch screen.
5. Pull the "Lift to Remove"tag on the battery gently to unseat it from the touch screen.
6. Disconnect the battery pack wire harness from the multipin connector on the touch
screen.
