48 • TST-902 Product Manual — Doc. 7750C
4. While holding the included bezel, connect the small plug attached to the thin cable on the
TST-902-DSWto the connector located behind the release button on the right of the

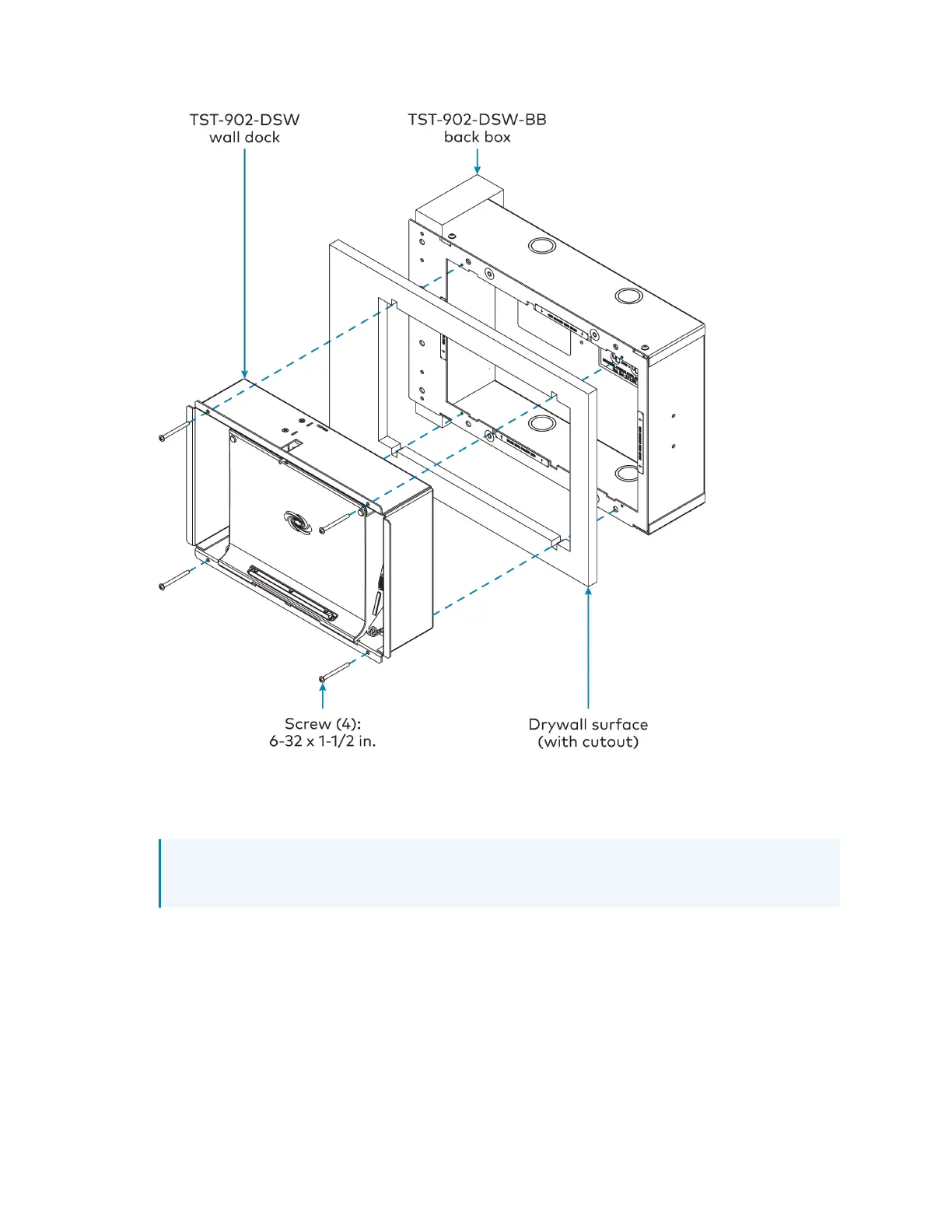

bezel. Refer to the illustration below step 7.
NOTE:If the bezel must be removed for any reason, disconnect this cable carefully
prior to removal.
5. Attach the bezel to the TST-902-DSWusing the four 6-32x3/4in. screws, but do not
tighten the screws. Refer to the illustration below step 7.
6. While viewing the assembly from the front, ensure that the gaps to the left and right of
the cradle are about equal. Then, tighten the screws fully to secure the bezel.
To Next Page
