6.4.7 VLAN
This s
witch supports 802.1Q VLAN, Port-based VLAN, and Private VLAN.
1). 802.1Q VLAN
1-1). 802.1Q VLAN
802.1Q VLAN : This is used to enable/disable 802.1Q VLAN function.
GVRP : The GVRP protocol can learn remote 802.1Q VLAN on other switches and add to dynamic 802.1Q VLAN
table. You can enable/disable the operation of this protocol.
Ingress Filter : This is used to enable/disable doing VLAN filtering function at ingress port. If it is enable, the ingress
port must be in the same VLAN for packet forwarding. If it is disable, VLAN filtering function will be done at egress
port.

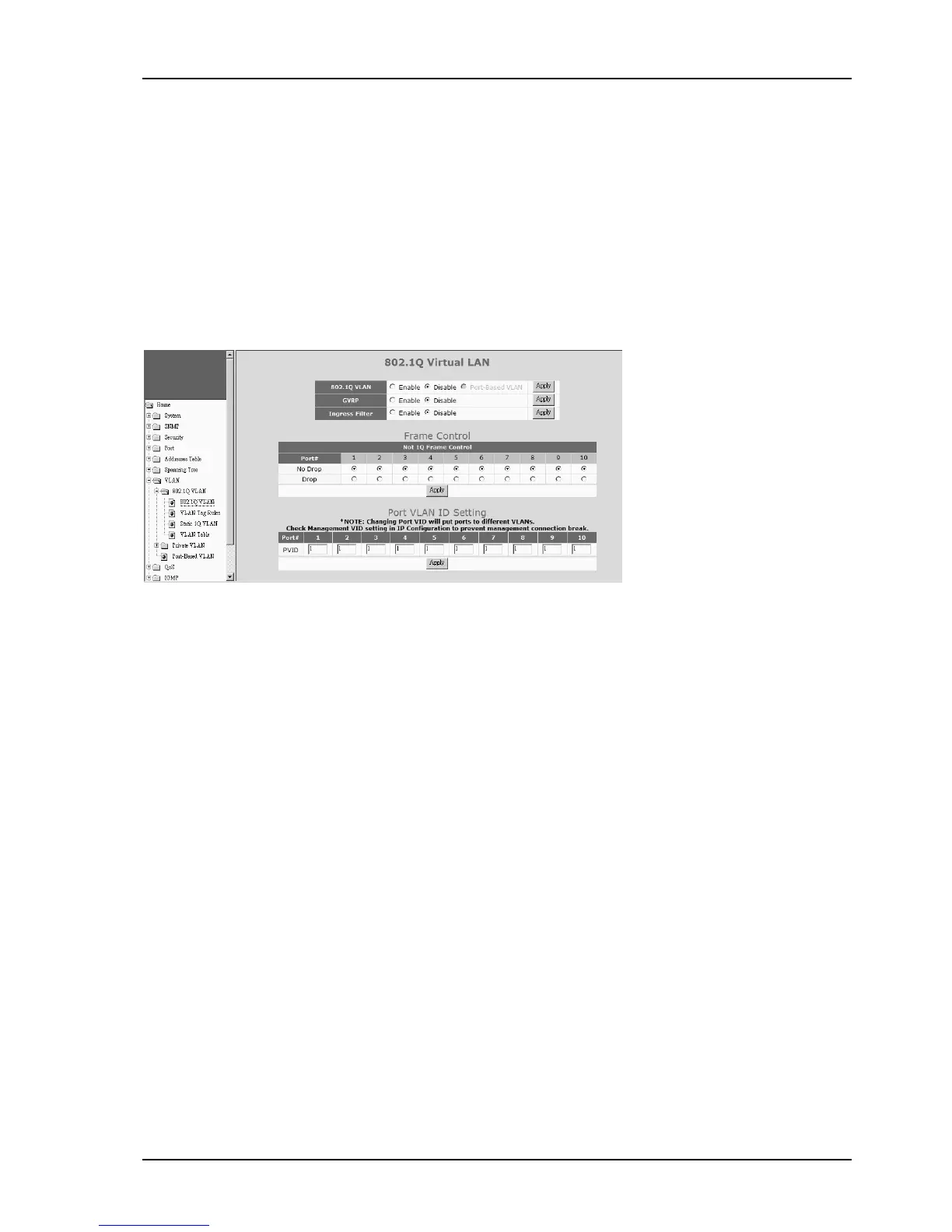

[Frame Control]
This function could be used to drop non-802.1Q frames (untagged packets).
[Port VLAN ID Setting]
PVID is used to set Port VLAN ID. When untagged packet is received, PVID of the ingress port will be used as the its
VLAN ID. PVID is also used as the VLAN ID for tag adding when untagged packet is translated to tagged packet.
