Chapter 6. Manage / Configure the Switch
134

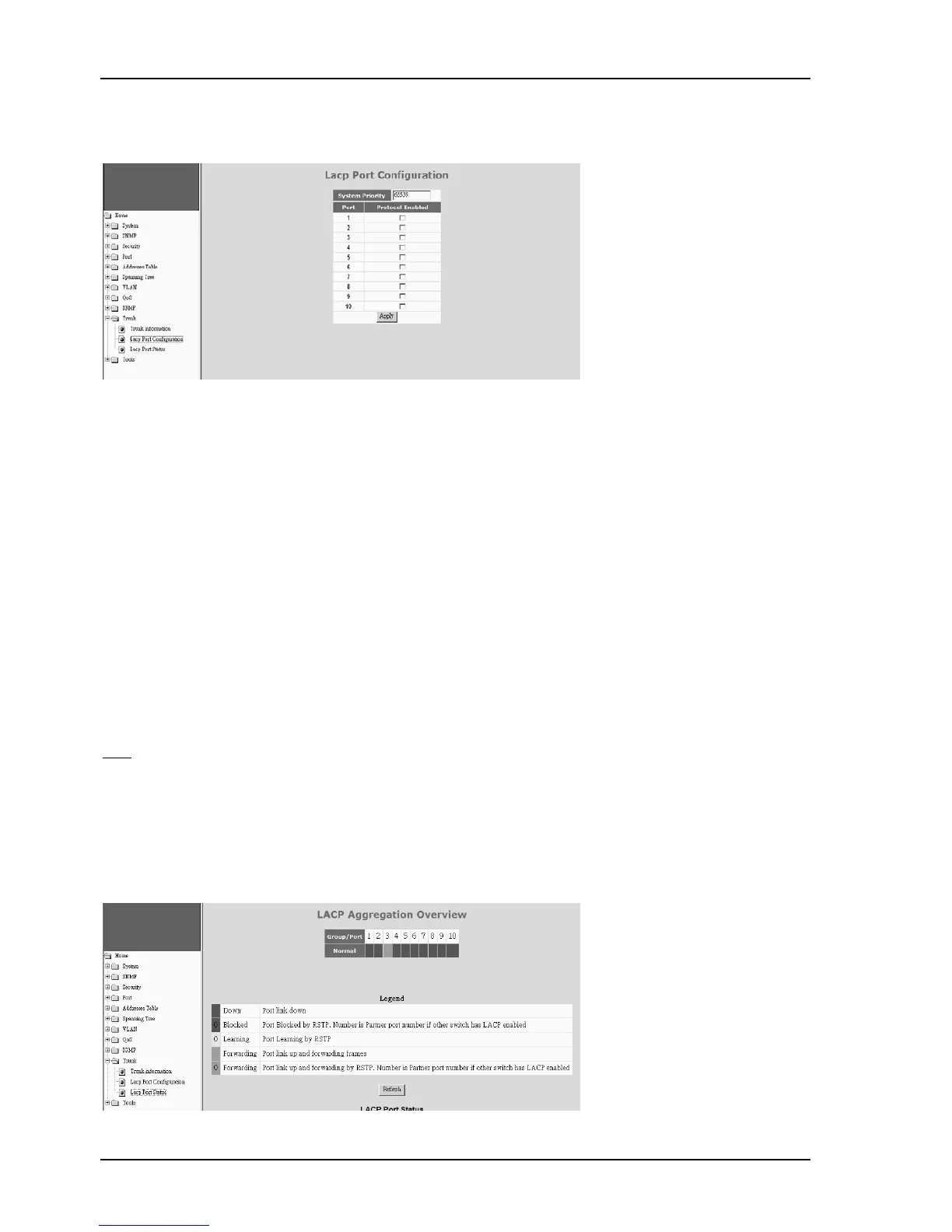

2). Lacp Port Configuration
This page is used to configure LACP function. With LACP protocol, switches can learn trunk connections
automatically.
Follow the steps to do it. (*Don’t connect trunk cables until this function is set.)
a. Enable Trunk function at “Trunk Information” page first. Then click [Apply].
b. Assign System Priority. (Its value is 1~65535 and higher number has lower priority. Combining with the Mac
address of the switch, it is used to identify this switch in LACP protocol operation.)
c. Select ports that will run LACP protocol.
d. Click [Apply].
Note
: If ports are already in static trunk group, they are not allowed to apply as LACP ports. If static ports are selected
as LACP ports, warning message will be prompted when [Apply] is clicked.
3). Lacp Port Status
This is for LACP protocol running status.
