TRANSMISSION SYSTEM
4-41
D569-W02 May-2003

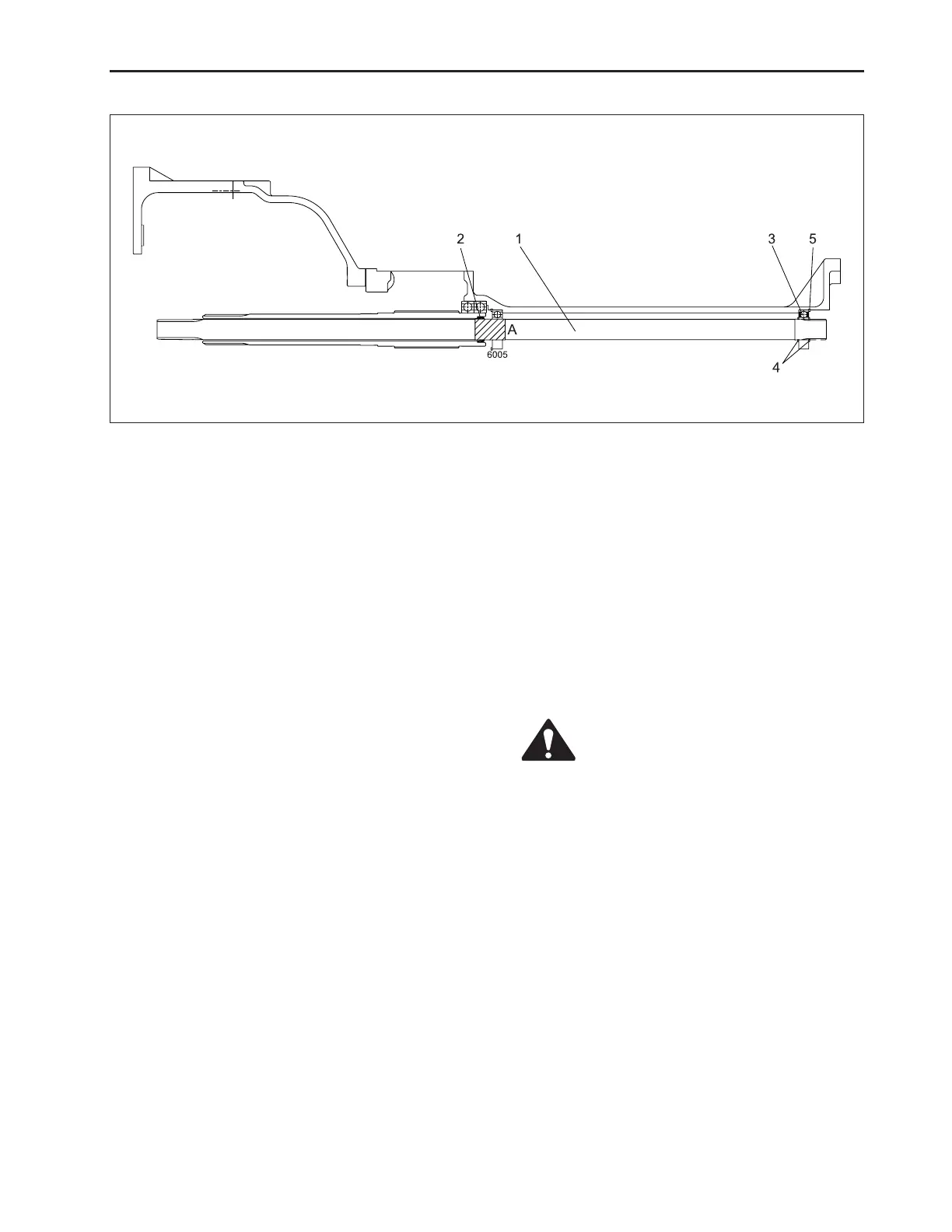

(1) PTO Drive Shaft
(2) Oil Seal
(3) Ball Bearing
M.PTO DRIVE SHAFT
a. To Disassembling
1. Separate the middle case and the transmission
case.
2. Remove snap ring (5) on the back of PTO drive shaft
(1).
3. Slightly knock PTO drive shaft to the back of the
middle case to remove 6005 ball bearing (3) and
snap ring (4) at a time.
569W459A
(4) Snap Ring
(5) Snap Ring
b. To Assemble
1. Sub-assemble snap ring (4), 6005DD ball bearing
(3) and snap ring (4) on PTO drive shaft.
2. After applying grease on the oil seal (2) contacted
section (A) of PTO drive shaft (1), perform assem-
bly by pushing forward from the back of the middle
case while slowly rotating.
3. Install mounting snap ring (5) of 6005DD ball bear-
ing (3).
• For assembling the PTO drive shaft,
grease the section A (where oil seal is
applied) previously.
CAUTION
