CHAPTER 4 8454
4-42
D569-W03 June-2003
To Disassembling PTO Clutch Ass’y
1. Push down pressure plate (8) with an exclusive tool
and take out snap ring (9).
2. Take out clutch disc (10), clutch plate (11), spring
(7), return plate (6) and brake disc (5).
3. Separate snap ring (18) from the PTO clutch shaft
section and take out spline hub (15).
4. Take out snap ring (19) in the PTO clutch, and slightly
knock PTO clutch shaft (16) backward to remove.
5. Inflate the PTO clutch with air to take out piston (2).
(1) PTO Clutch Body (11) Clutch Plate
(2) Piston (12) Ball Bearing
(3) Piston Ring (13) Needle Bearing
(4) Piston Ring (14) Seal Ring
(5) Brake Disc (15) Spline Hub
(6) Return Plate (16) PTO Clutch Shaft
(7) Spring (17) Bushing
(8) Pressure Plate (18) Snap Ring
(9) Snap Ring (19) Snap Ring
(10) Clutch Disc

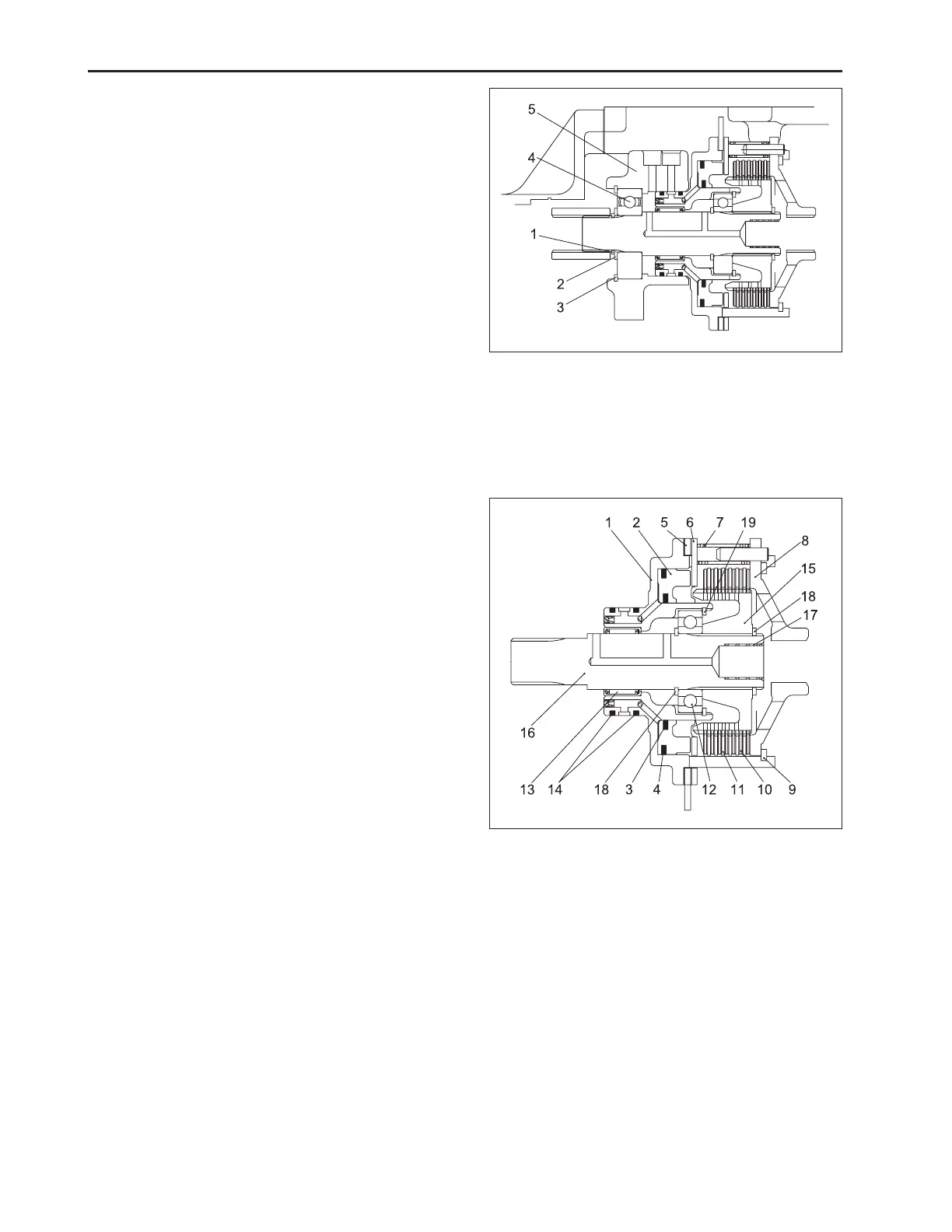

N. PTO CLUTCH
a. To Disassembling
1. Remove the middle case and the transmission
case.
2. Remove snap ring (1) and spacer (2) fixed of the
PTO clutch shaft.
3. Loosen
φ
62 snap ring (3) on PTO clutch bracket
(5).
4. Loosen four M12 bolts on PTO clutch bracket (5)
and the transmission case to Disassembling PTO
clutch bracket.
5. Take out the PTO clutch ass’y.
(1) Snap Ring
(2) Spacer
(3) Snap Ring
(4) Ball Bearing
(5) PTO Clutch Bracket
569W460A
569W461A
