Ex Series
Ex450
REF
NO.
PART NUMBER
DESCRIPTION
QTY
1
CY-1A8170-34500
R3 TIRE KIT,WHEEL
2
2
CY-1A8170-34510
R3 TIRE 44X18.00-20
2
3
CY-1A8170-34530
R3 WHEEL R
2
4
CY-1A8170-14210
BOLT, HUB M14
16
111

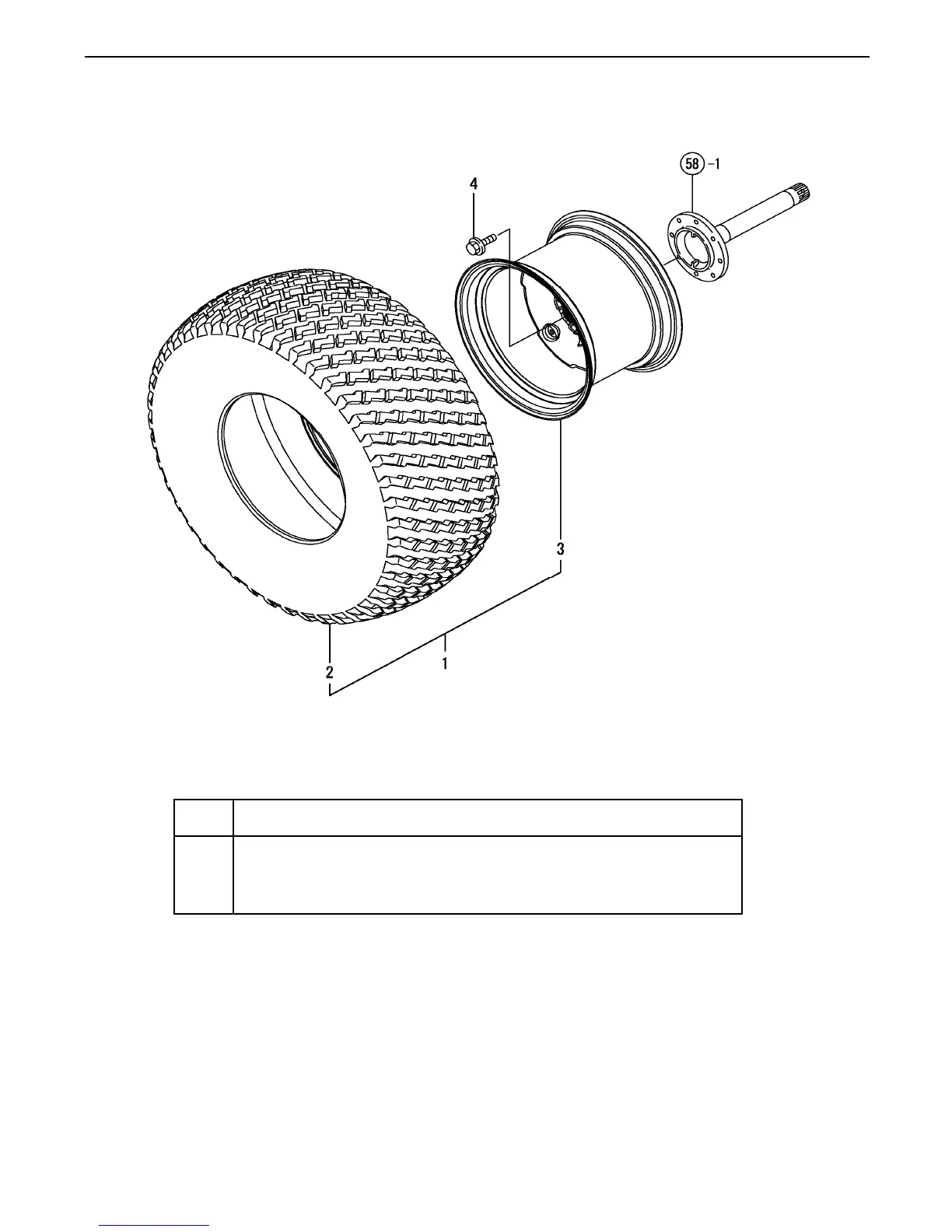

FIG. 60. REAR WHEEL TIRE 2
Copyright 2008 Cub Cadet Yanmar LLC
110
112
Table of Contents
Index
2
Example
2
Engine Section Index
3
Cylinder Block
5
Gear Housing
6
Mounting Flange and Oil Sump
7
Cylinder Head and Bonnet
8
Suction Manifold
11
Exhaust Manifold and Silencer
12
Camshaft and Driving Gear
13
Crankshaft and Piston
15
Hydraulic Pump
16
Balancer
19
Lubricating Oil System
20
Cooling Water System
22
Fuel Injection Pump
24
Governor
27
Fuel Injection Valve
28
Starting Motor
30
Generator
32
Tracton Section Index
34
Engine Accessories Mounting
38
Engine Accessories
40
Accelerator Lever
42
Exhaust
45
Tank Fuel Oil
46
Tank Bracket
47
Fuel Pipe
48
Shutter Plate
49
Front Bracket
50
Front Hitch
51
Center Pin
52
Knuckle Arm
53
Tie Rod
54
Front Ring Gear
55
Differential Gear
56
Propeller Shaft
57
Front Drive Shaft
58
Front Axle Housing
59
Front Gear Case
60
Front Shaft
61
Front Spindle
62
Shaft Cover
63
Front Wheel Tire
64
Stering Wheel
67
PST Cylinder
69
PST Valve
70
PST Piping
72
Clutch Housing
74
Docking Bolt
75
Dual Clutch and Shaft
76
Clutch Release
78
Clutch Pedal
79
Transmission Case
80
Center Plate
82
Oil Strainer
83
Main Shaft
85
Driven Shaft
86
Counter Shaft
88
Reduction Shaft
89
Reverse Gear
90
Connecting Shaft
91
PTO Drive Shaft
92
PTO Shaft
93
Main Change Lever
94
Main Change
96
Reverser Change
98
Reverse Lever
99
Sub Change Lever
100
PTO Change
101
Front Drive
102
Front Shift
103
Ring Gear
104
Rear Housing
105
Differential Lock
106
Final Pinion and Final Gear
108
Rear Axle Shaft
109
Rear Wheel Tire
110
Brake
113
Brake Pedal
114
Hydraulic Cylinder Case
116
Piston and Lift Crank
118
Control Valve
120
Relief Valve
121
Stop Valve
122
Safety Valve
123
Rear Remote Valve 2P
126
Hydraulic Control
128
Hydraulic Control Knob
131
Hydraulic Line
132
Hydraulic Filter
134
Seal
135
Wire Harness
136
Battery
138
Switches
139
Seat Switch
140
Lamps
141
Front Lamp
143
Meter
144
Relay
146
Front Frame
147
Frame, Hood
148
Hood
151
Front Grille
152
Side Cover
155
Dashboard
156
Fender
158
Step
160
Driver Seat
161
Seat Belt
163
Labels
164
Labels, Safety
167
Three Point Link
168
Top Hook
170
PTO Guard
171
Draw Bar Hitch
173
Safety Frame
174
Heater
177
Rear Remote Valve 1P
178
Extra Hitch
180
