Cub Cadet Yanmar Sx3100 - Page 175

Sx Series
Sx3100
Copyright 2010 Cub Cadet Yanmar LLC
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-1A7335-71550 Spring 1
2 CY-1A8300-85010 Frame Assy, Upper 1
3 CY-194330-62530 Stopper, Pedal 2
4
N/A
Frame Assy, Upper 1
5
N/A
Frame Assy, Upper 1
6 CY-1A8300-85430 Bolt, M16X90 2
7 CY-1A8300-85440 Nut, M16 (Nylock 2
8 CY-1A8300-85910 Pin Assy, Stopper 2
9 CY-1A8300-85920 Pin Stopper Cmp 2
10 CY-1A8300-85930 Hitch Pin Clip 2
11 CY-198172-85440 Nut, 12 8
12 CY-198165-85970 Bolt M12X 35 Plated 8
13 CY-198165-85980 Bolt M14X 30 Plated 2
14 CY-22137-080000 Washer 8, Polished 3
15 CY-22417-300250 Cotter Pin 3.0X 25 1
16 CY-26106-080122 Bolt M 8X 12 Plated 2
175

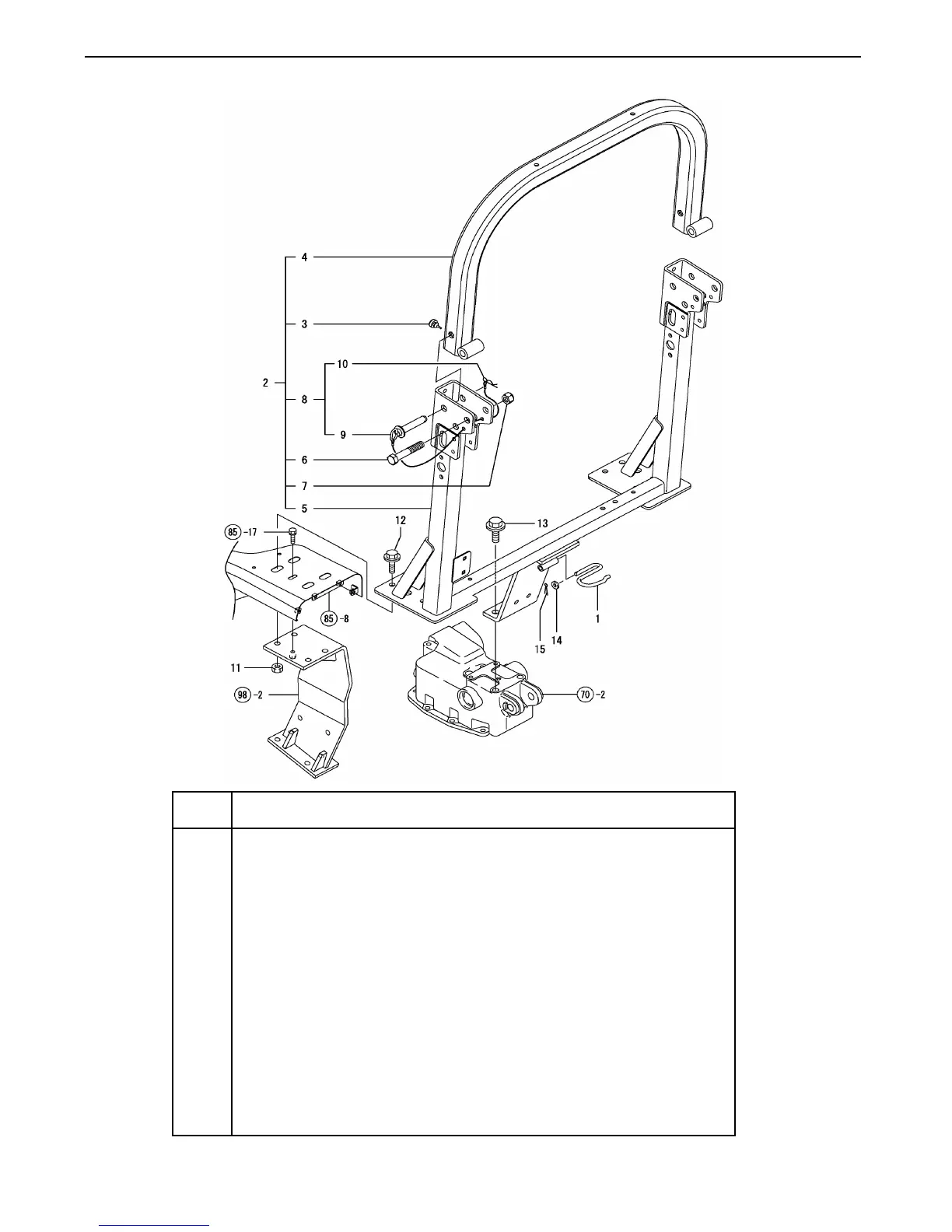

FIG. 99. ROPS 2
