Page 62 (Front Tire R3)
Cub Cadet Yanmar Sx3100 - Front Tire R3
192 pages
Manual
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Sx Series
Sx3100
Copyright 2010 Cub Cadet Yanmar
LLC
REF
NO.
PART NUMBER
DESCRIPTION
QTY
1
CY-
1A8300-14700
Tire
Kit, Front R3
2
2
CY-
1A8300-14710
Tire, 24X8.
50-14 R3
2
3
CY-
1A8300-14730
Wheel,
2
4
CY-
1A8300-14740
Valve,
2
62

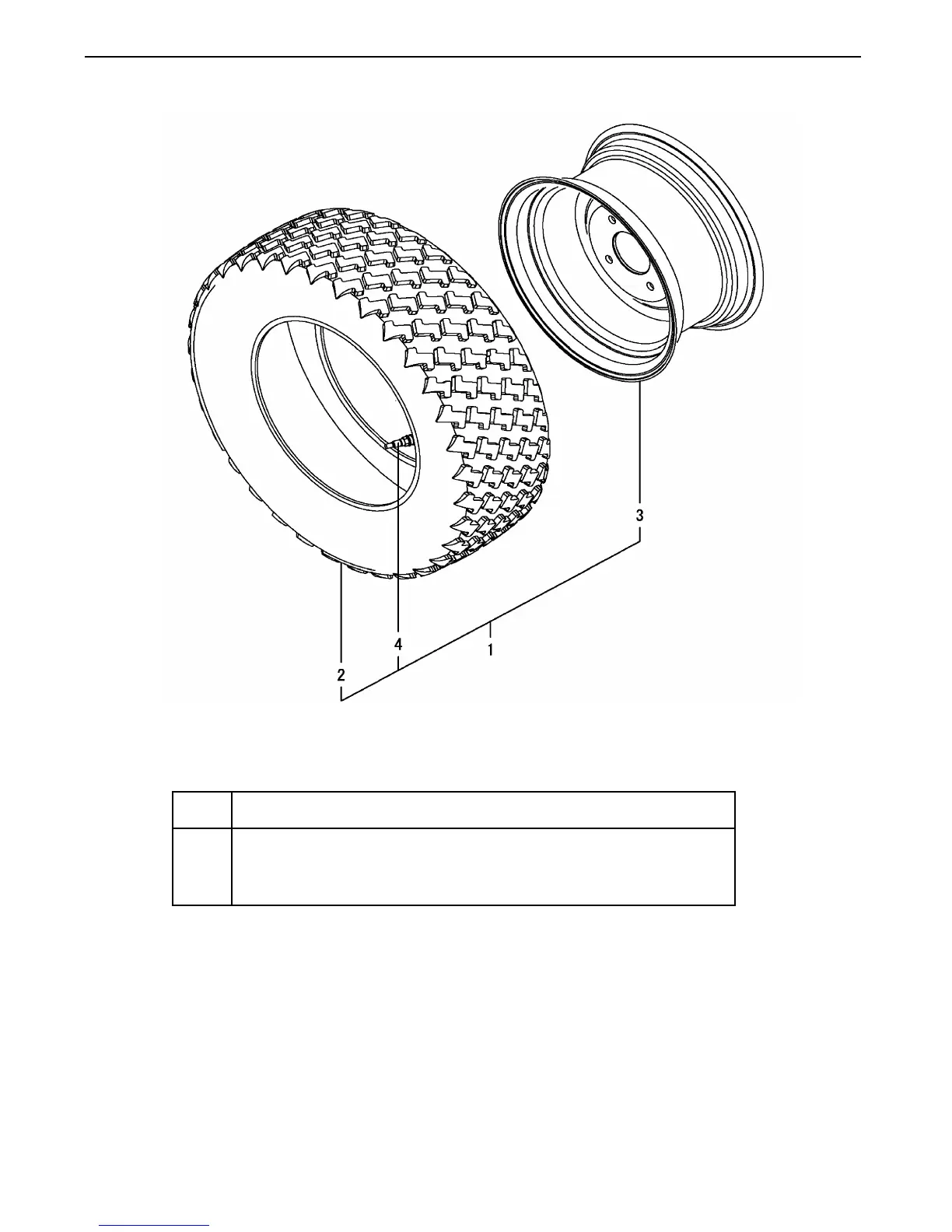

FIG. 18. FRONT
TIRE R3
61
63
