Sx Series
Sx3100
Copyright 2010 Cub Cadet Yanmar LLC
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-129150-14200 Tappet 6
2 CY-129150-14400 Rod, Push 6
3 CY-129129-14580 Camshaft Assy 1
4 CY-129150-02450 Metal,Thrust(Cam 1
6 CY-129150-14101 Gear, Camshaft 1
7 CY-22512-070140 Key 7X 14 1
8 CY-26106-080142 Bolt 8X 14 Plated 2
9 CY-119802-25101 Gear Assy, Idle 1
12 CY-119802-25071 Bush, Idle Gear 1
13 CY-129150-25301 Bolt,Fi-P 4
14 CY-119802-25901 Gear, Pump 1
15 CY-158552-51151 Flange 1
16 CY-22217-140000 Spring Washer 14 1
17 CY-26776-140002 Lock Nut M14 Plated 1
15

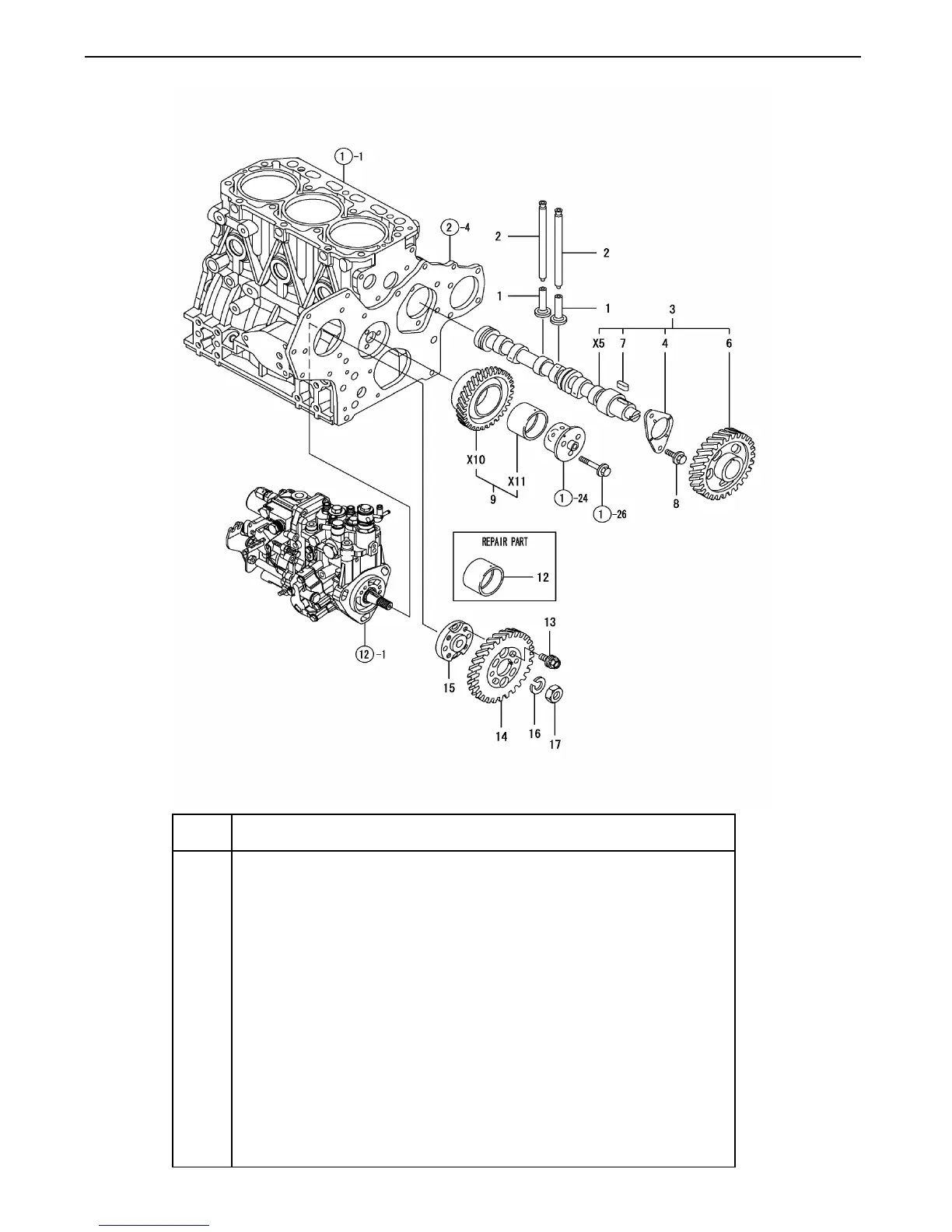

FIG. 7. CAMSHAFT & DRIVING GEAR
