Cub Cadet Yanmar Sx3100 - Cylinder Block

Sx Series
Sx3100
Copyright 2010 Cub Cadet Yanmar LLC
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-129232-01560 Cylinder Block Cmp 1
4 CY-124060-01050 Plug PT1/8 1
5 CY-129001-01250 Plug 50 1
6 CY-124160-01910 Plug PT1/4 2
7 CY-124160-01910 Plug PT1/4 1
8 CY-171051-01921 Plug 1
9 CY-129150-02020 Bolt, Metal Cap 8
12 CY-129795-02412 Bush, CamShaft 1
13 CY-27241-120000 Plug 12 2
14 CY-27243-300000 Plug 30 6
15 CY-129100-01580 Parallel Pin 8X16 2
16 CY-129100-01580 Parallel Pin 8X16 2
17 CY-129795-01950 Pipe, Knock L=18 2
21 CY-129150-02931 Metal, Thrust 2
24 CY-119803-25050 Shaft, Idle Gear 1
25 CY-22351-060012 Spring Pin 6X12 2
26 CY-26106-080402 Bolt M 8X 40 Plated 3
27 CY-129150-01200 Stud, Cylinder Head 14
28 CY-129001-01340 Gasket, (Non-Asb.) 1
29 CY-129001-02931 Main Bearing Set 4
32 CY-129150-02871 Main Metal Us=0.25 4
35 CY-129150-02941 Metal,Thrust.25(4Pie 1
5

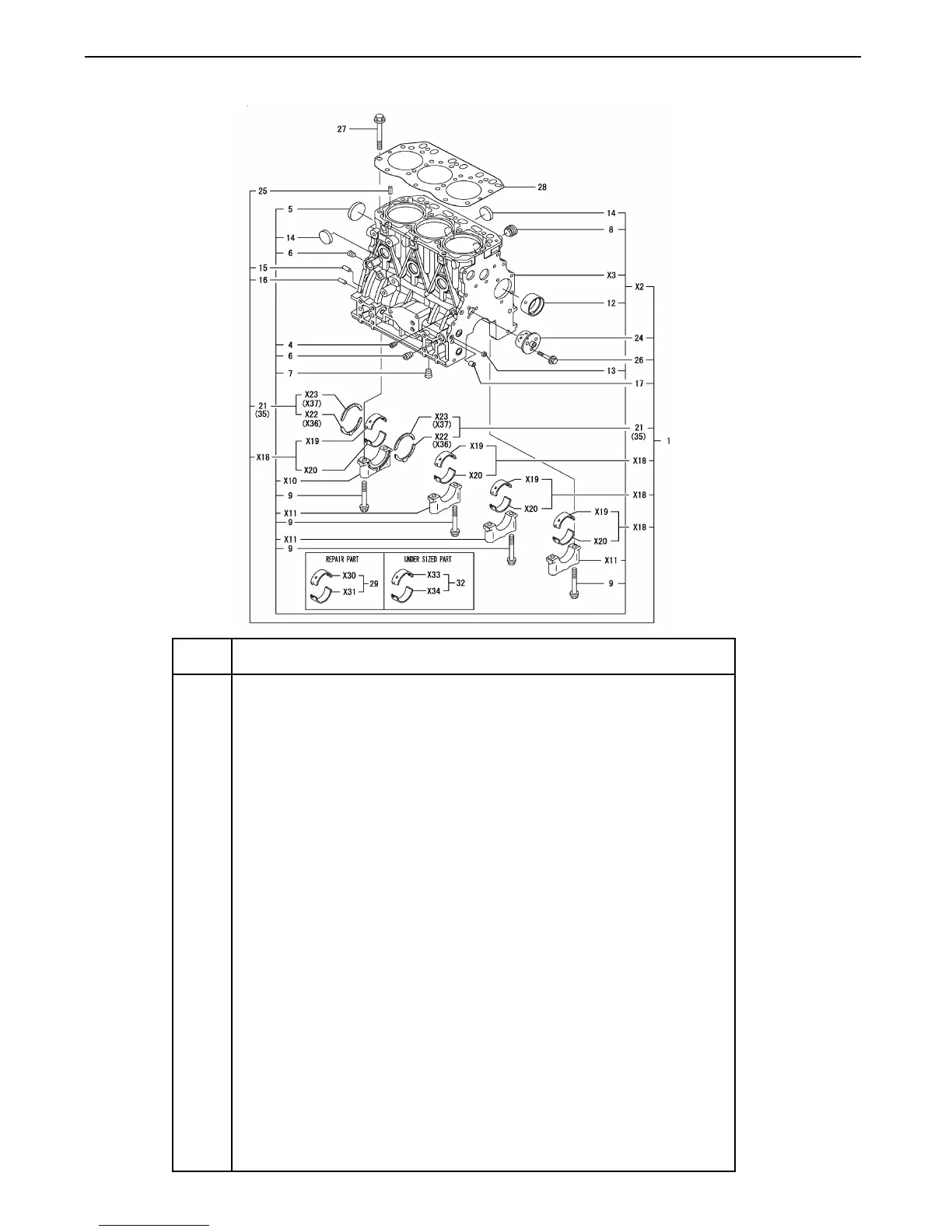

FIG. 1 CYLINDER BLOCK
