Cub Cadet Yanmar Sx3100 - Hydraulic Line

Sx Series
Sx3100
Copyright 2010 Cub Cadet Yanmar LLC
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-1A7540-48110 Pipe, High Pressure 1
2 CY-1A7530-48320 Pipe, Low Pressure 1
3 CY-198167-48340 Hose 1
4 CY-198220-48750 Connector Assy 1
5 CY-23010-030000 Clamp 30 2
6 CY-23414-180023 Gasket 18 2
7 CY-24311-000200 O-Ring 1A P-20.0 1
8 CY-24311-000220 O-Ring 1A P-22.0 1
9 CY-26013-060322 Bolt M 6X 32 3
10 CY-26013-080452 Bolt M 8X 45 2
11 CY-26018-080202 Bolt M 8X 20 2
137

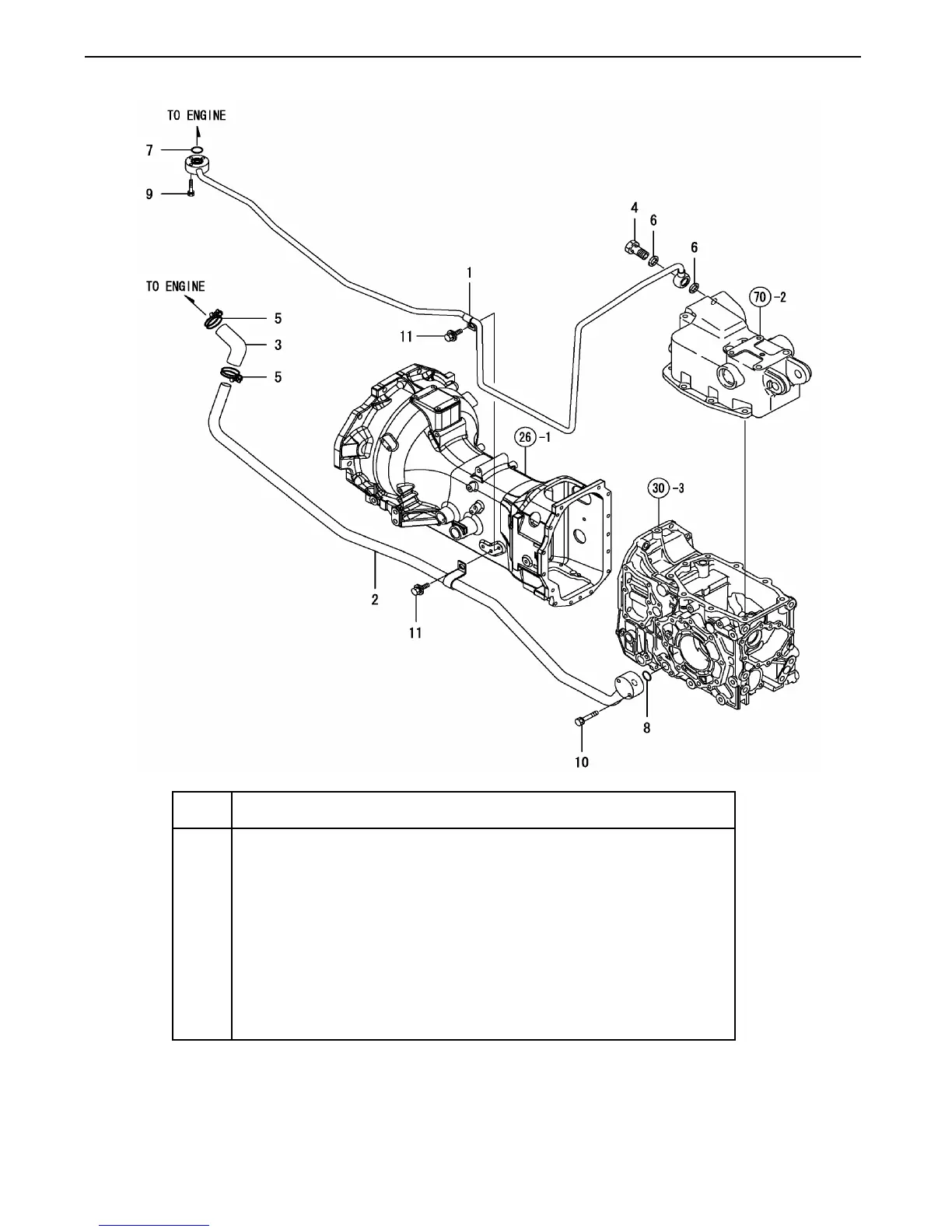

FIG. 75. HYDRAULIC LINE
