Cub Cadet Yanmar Sx3100 - Front Axle Housing

Sx Series
Sx3100
Copyright 2010 Cub Cadet Yanmar LLC
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-194447-13490 Cap W/Dipstick 1
2 CY-198165-13600 Case L Comp, F. Axle 1
3 CY-194850-13660 Bush 2
4 CY-198165136202 Case R,Front Axle 1
5 CY-198165136311 Cover,Front Axle Cas 1
6 CY-198165-24440 Gasket(20*12*2 1
7 CY-198165-24490 Bolt M 12X 12 Plated 1
8 CY-22252-000520 Circlip 52 1
9 CY-22351-080020 Spring Pin 8X20 2
10 CY-24311-000180 O-Ring 1A P-18.0 1
11 CY-24321-000500 O-Ring 1A G-50.0 2
12 CY-24321-001150 O-Ring 1A G-115.0 1
13 CY-24421-173007 Seal Tc17 30 07, Oil 1
14 CY-26013-100252 Bolt M10X 30 6
15 CY-26016-100302 Bolt M10X 30 6
55

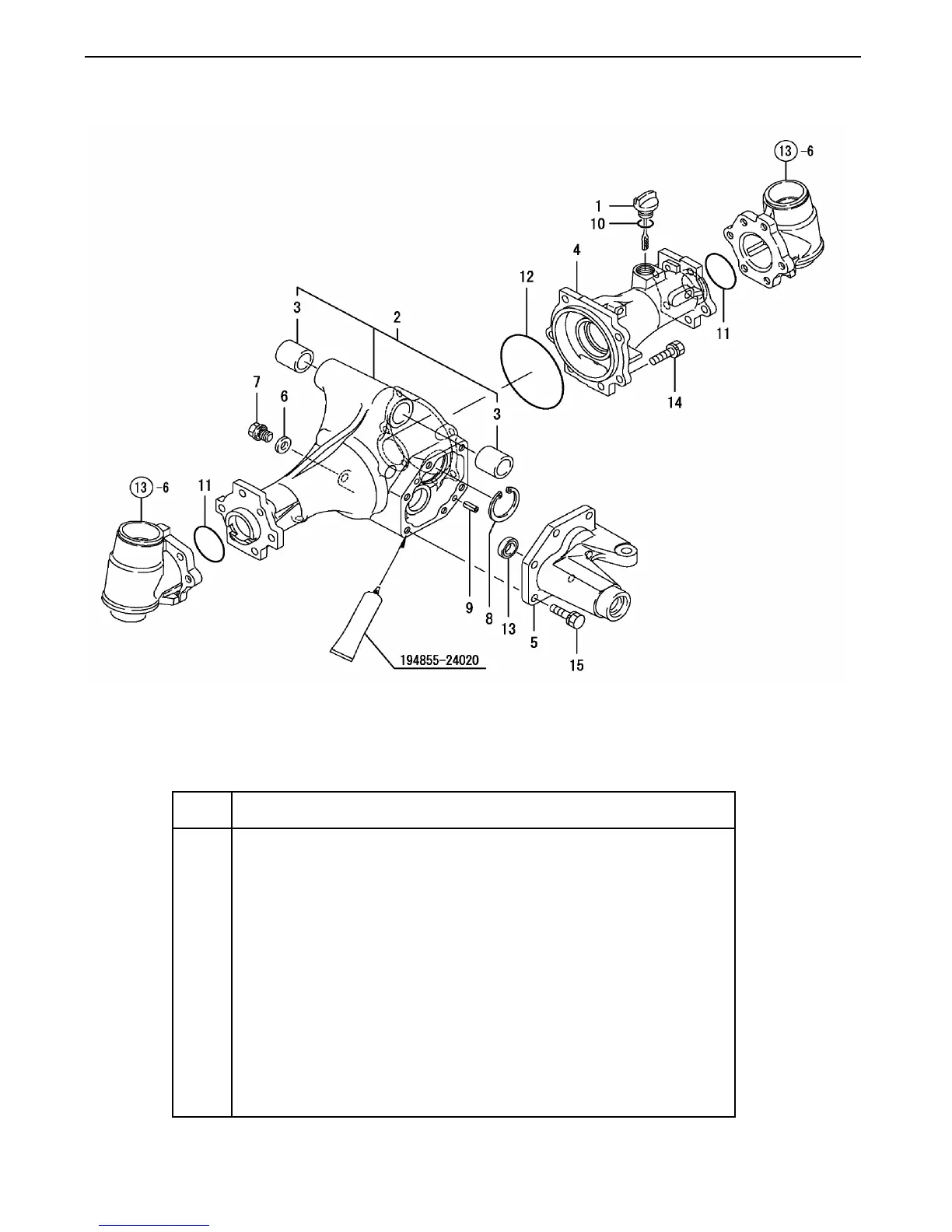

FIG. 12. FRONT AXLE HOUSING
