Cub Cadet Yanmar Sx3100 - Docking Bolt

Sx Series
Sx3100
Copyright 2010 Cub Cadet Yanmar LLC
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-1A7530-21150 Stay Cmp, Gear Box 1
2 CY-1A7530-21210 Rubber,St 4
3 CY-1A7530-21220 Collar10.6X13.8X12.5 4
4 CY-1A7530-21320 Plate,C/H 1
5 CY-22157-080000 Washer 8 2
6 CY-22157-100000 Washer 10 2
7 CY-22217-100000 Spring Washer 10 1
8 CY-22217-120000 Spring Washer 12 1
9 CY-22351-080016 Spring Pin 8X16 2
10 CY-24761-040000 Nipple B,Grease 4
11 CY-26013-080252 Bolt M 8X 25 2
12 CY-26013-100352 Bolt M10X 35 1
13 CY-26013-120352 Bolt M12X 35 3
14 CY-26013-120452 Bolt M12X 45 5
15 CY-26018-080162 Bolt M 8X 16 4
16 CY-26116-100804 Bolt M10X 80 Plated 1
17 CY-26716-100002 Nut 10 1
18 CY-26756-120002 Lock Nut 12 1
72

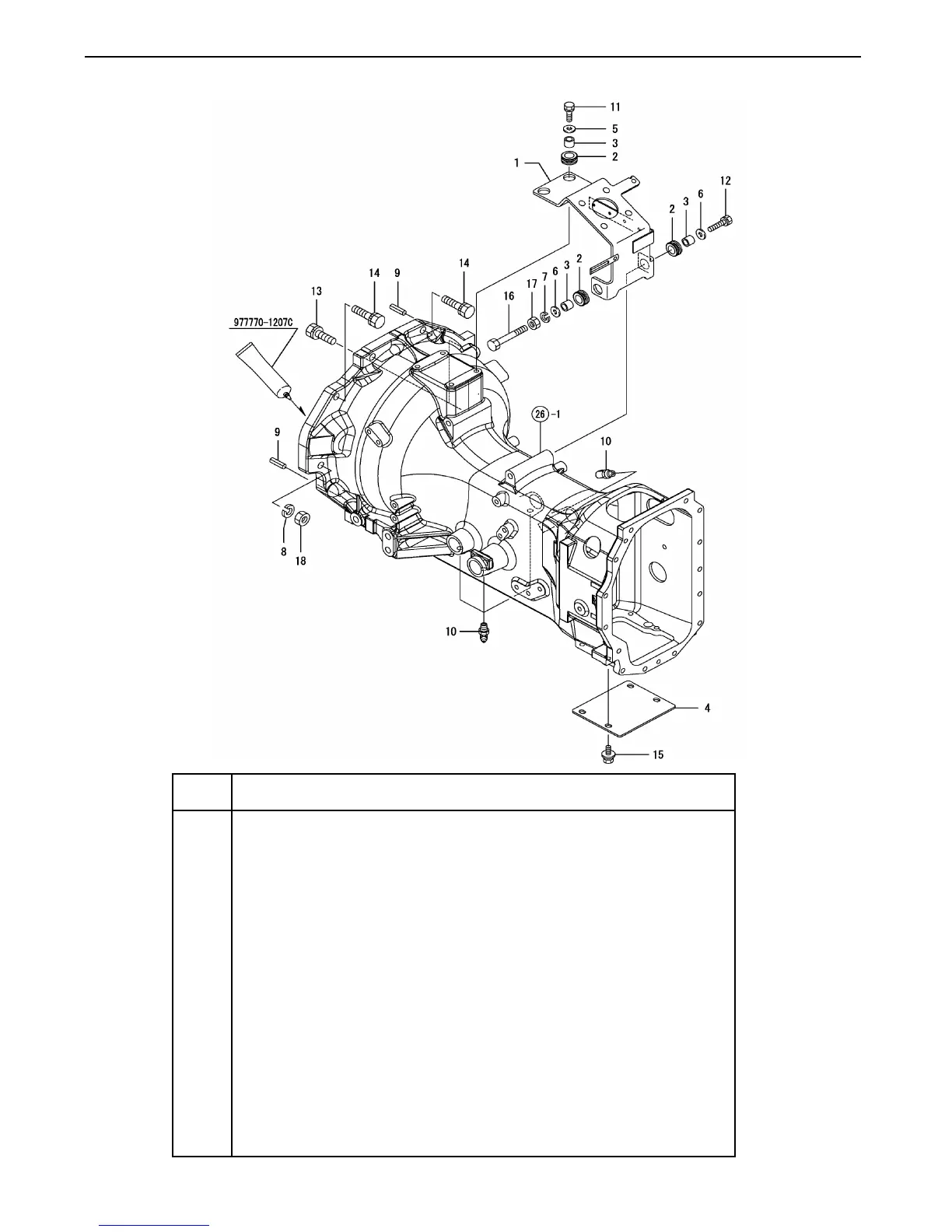

FIG. 27. DOCKING BOLT
