Cub Cadet Yanmar Sx3100 - Motor Case

Sx Series
Sx3100
Copyright 2010 Cub Cadet Yanmar LLC
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-192157-24850 Pin 12X22,Knock 2
2 CY-168HK0-29520 Shaft, Motor 1
3 CY-168HK0-29530 Case, Motor 1
4 CY-198167-29640 Packing,Motor Case 1
5 CY-22242-000170 Circlip 17 1
6 CY-22252-000470 Circlip 47(H) 2
7 CY-24101-063034 Ball Bearing 1
8 CY-26016-101002 Bolt, 10 X 100 2
9 CY-27260-470000 Plug 47,Bore 1
108

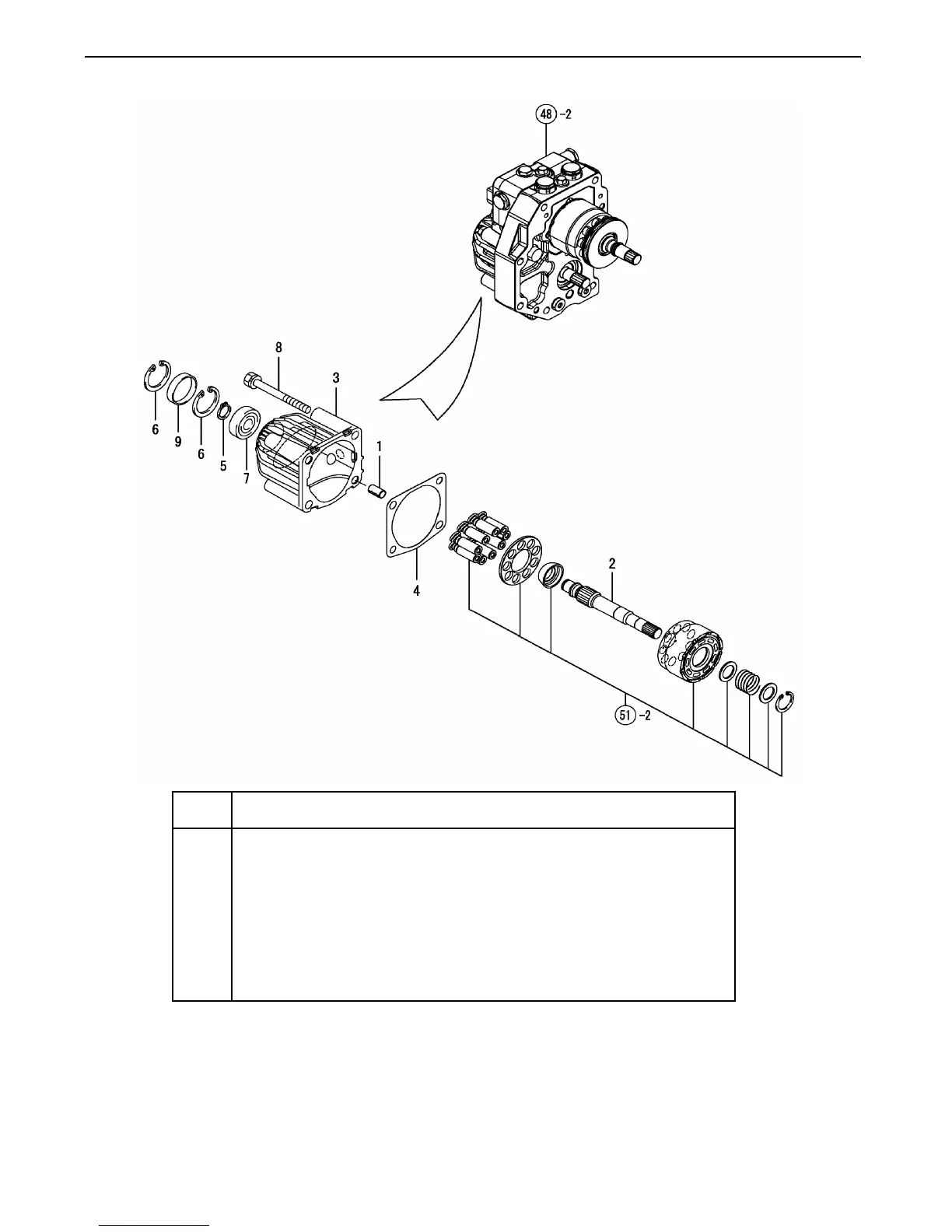

FIG. 53. MOTOR CASE
