Sc2450
Copyright 2010 Cub Cadet Yanmar LLC
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-1C6860-02300 Pan,Fuel 1
2 CY-1A7530-04110 Tank, Fuel Oil 1
3 CY-1A8160-04130 Cap, Fuel Tank 1
4 CY-1A7530-04310 Stay Assy, Tank F 1
5 CY-1A7530-04330 Stay R Cmp, Tank 1
6 CY-1A7530-04340 Stay Cmp, Tank 1
7 CY-1A7531-04410 Stay Cmp,Separater 1
8 CY-194990-22050 Nut W/Washer 8 4
9 CY-119225-52102 Pump Assy, Fuel Feed 1
10 CY-119802-55700 Separator Assy 1
11 CY-129100-55690 Ring, Retaining 1
12 CY-119802-55710 Element 1
13 CY-119802-55730 Cup Assy 1
14 CY-24311-000160 O-Ring 1A P-16.0 1
15 CY-24321-000650 O-Ring 1A G-65.0 1
16 CY-22157-060000 Washer 6 6
17 CY-26013-080702 Bolt M 8X 70 1
18 CY-26018-060162 Bolt M6X16 2
19 CY-26018-060202 Bolt M 6X 20 2
20 CY-26018-060252 Bolt, M6X25 4
21 CY-26018-080162 Bolt M 8X 16 2
22 CY-26019-060162 Bolt M 6X 16 1
45

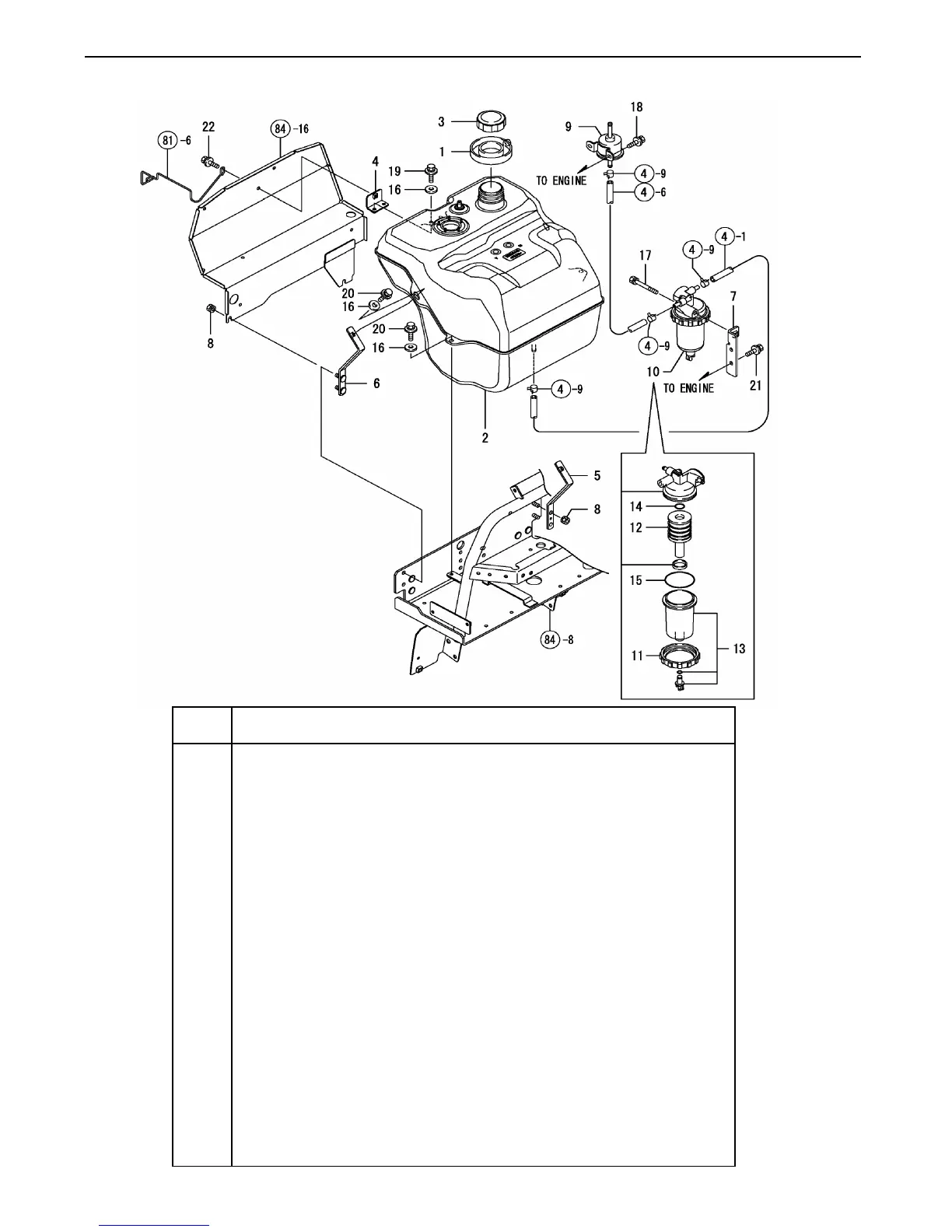

FIG. 3. TANK, FUEL
