Cub Cadet Yanmar Sx3100 User Manual

Sx Series
Sx3100
Copyright 2010 Cub Cadet Yanmar LLC
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-198421-27110 Spring 38.4 1
2 CY-1A7530-27410 Lever Cmp 1
3 CY-198167-27480 Pin,Switch Renge 1
4 CY-198167-27490 Holder,Switch 1
5 CY-198167-27521 Fork,Shift Renge 1
6 CY-198167275301 Arm,Cmp Shift 1
7 CY-1A7530-27610 Shaft, Range Fork 1
8 CY-194197-27681 Plate, Keep 1
9 CY-22190-100000 Seal Washer 10(Bolt) 1
10 CY-22312-080180 Parallel Pin, M8X16 1
11 CY-22351-035032 Spring Pin 3.5X32 1
12 CY-22351-060025 Spring Pin 6X25 1
13 CY-22351-060032 Spring Pin 6X32 1
14 CY-24190-100003 Ball 5/16, Steel 1
15 CY-24311-000125 O-Ring 1A P-12.5 1
16 CY-24311-000140 O-Ring 1A P-14.0 1
17 CY-26016-080352 Bolt M 8X 35 1
18 CY-26106-100252 Bolt M10X 25 Plated 1
91

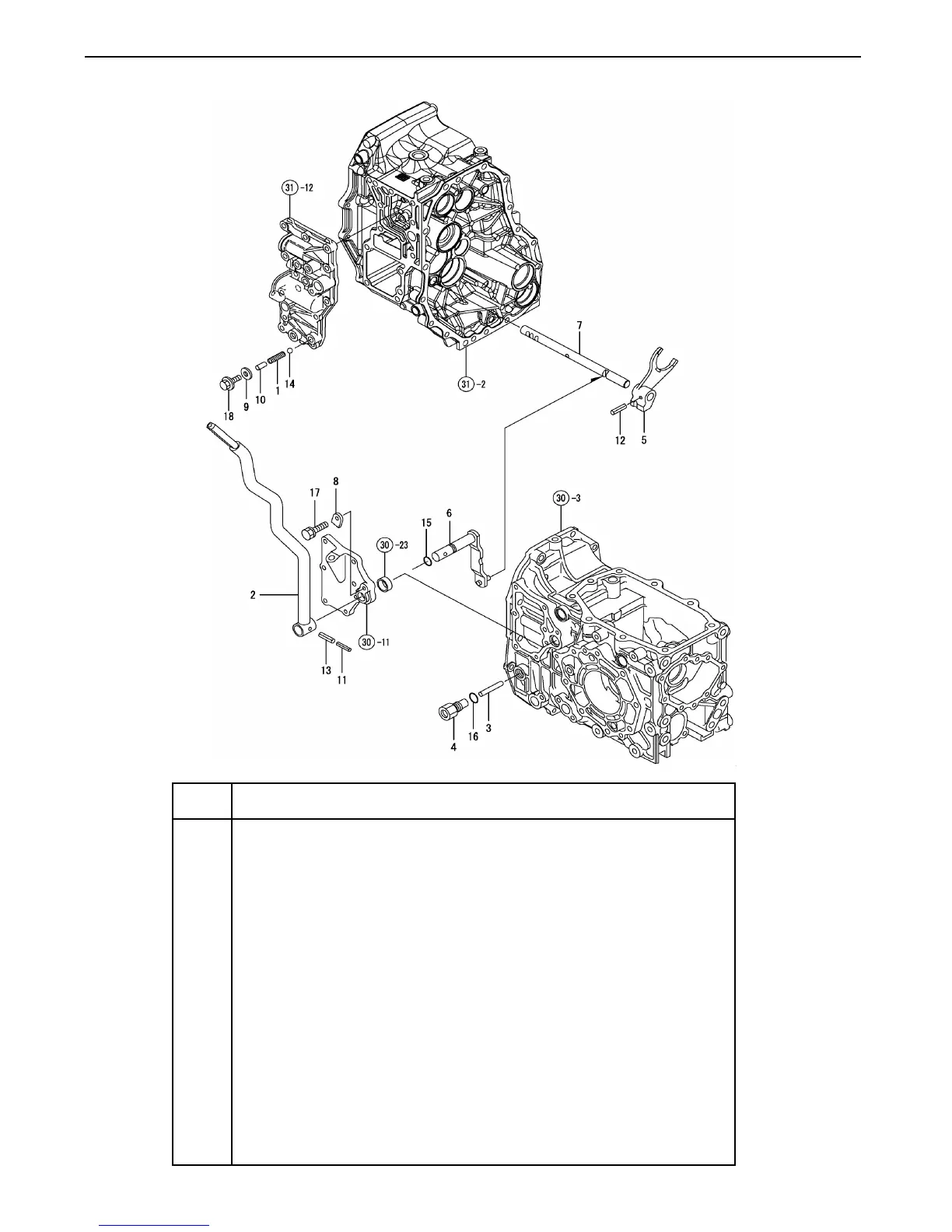

FIG. 42. RANGE SHIFT
