Sx Series
Sx3100
Copyright 2010 Cub Cadet Yanmar
LLC
REF
NO.
PART NUMBER
DESCRIPTION
QTY
1
CY
-1TN325-
23100
Quick Link A
ssy
1
2
CY
-1TN325-
23310
R
etaining Pin Cmp
2
3
CY-194180-72950
Pin Assy, Lock
2
4
CY
-1TN325-
73110
1-115 Pin
4
5
CY-24761-010000
Nipp
le M6F, Gr
ease
4
6
CY-26116-060502
Bolt M 6X
50 Plat
ed
4
7
CY-26347-060002
U-Nu
t M 6
4
183

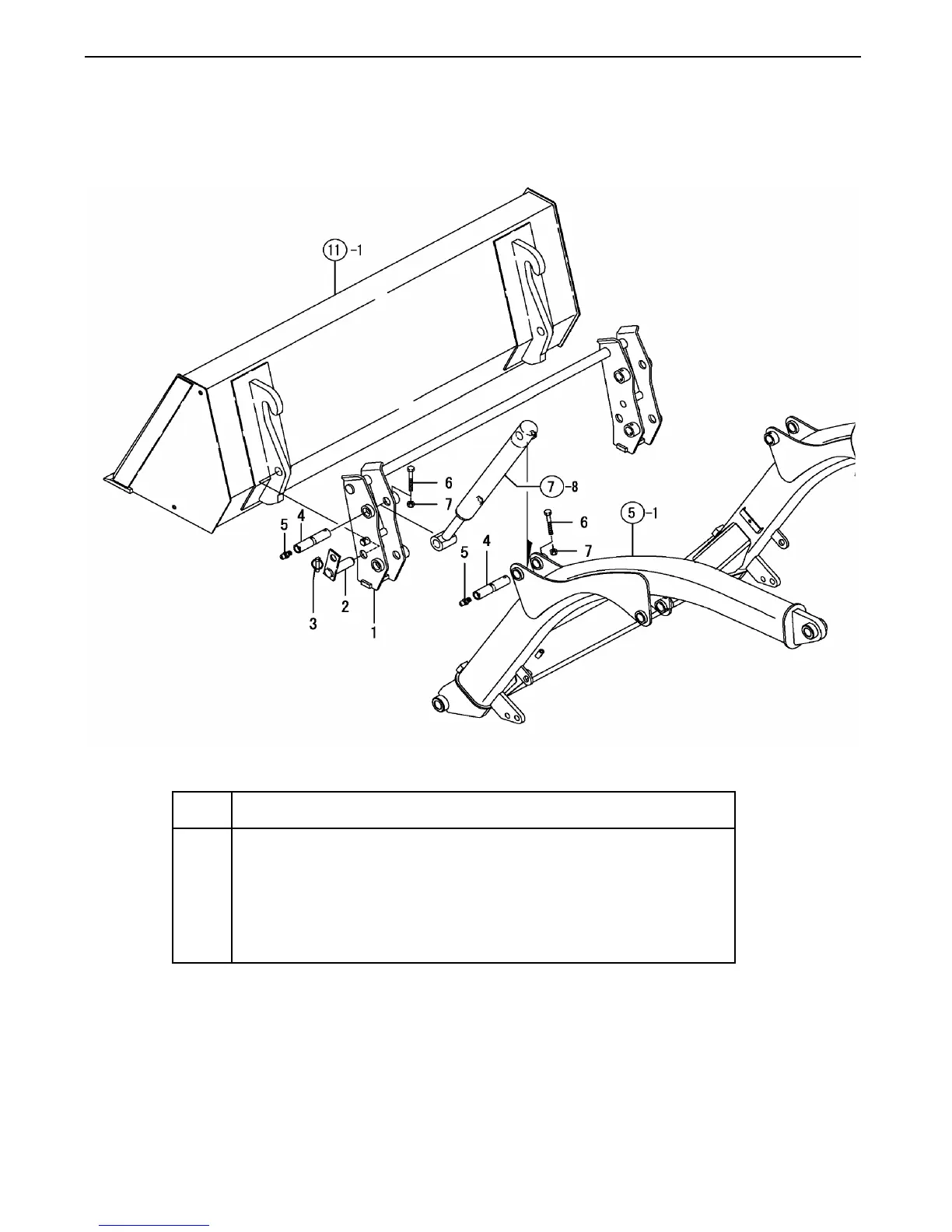

FIG. 6. QUICK LINK
182
184
Table of Contents
Engine Section Index
3
Cylinder Block
5
Gear Housing
6
Mounting Flange & Oil Sump
9
Cylinder Head & Bonnet
10
Suction Manifold & Air Cleaner
12
Exhaust Manifold & Muffler
14
Camshaft & Driving Gear
15
Crankshaft & Piston
16
Hydraulic Pump
19
Lubrication Oil System
20
Cooling Water System
22
Fuel Injection Pump
24
Governor
26
Fuel Injection Valve
28
Starting Motor
30
Generator
32
Gasket Kit
34
Tractor Section Index
38
Engine Accessories
42
Accel Lever
44
Tank, Fuel
45
Fuel Pipe
46
Front Bracket
47
Center Pin
48
Tie-Rod
49
Drive Pinion
50
Differential Gear
51
Propeller Shaft
52
Front Shaft
53
Front Axle Housing
55
Front Gear Case
56
Front Spindle
60
Shaft Cover
61
Front Tire R3
62
Front Tire R4
63
Hub Bolt, Front
64
Steering Wheel
65
Pst Valve
66
Pst Cylinder
67
Pst Piping
68
Clutch Housing
71
Docking Bolt
72
Damper Disc
73
Clutch Shaft
75
Transmission Case
76
Center Plate
78
Oil Cap
80
Oil Strainer
81
Input Shaft
82
Main Shaft
83
Counter Shaft
84
Pto Drive Shaft
85
Pto Clutch Shaft
86
Pto Shaft
88
MID Pto Shaft
89
Inertia Brake
90
Range Shift
91
Pto Change
92
Front Drive
94
Front Shift
97
Hst Control
98
H.s.t.
102
Center Case
103
Pump
104
Motor
105
Power Pump
106
Motor Case
108
Ring Gear
109
Differential Carrier
111
Rear Housing
112
Differential Lock
114
Final Pinion
115
Final Gear
116
Rear Axle Shaft
117
Rear Hub Bolt
121
Hydraulic Pedal
122
Cruise Control
124
Disc Brake
125
Brake Pedal
126
Parking Brake
128
Hydraulic Lift
130
Hydraulic Control
132
Stop Valve
133
Sub Control Valve
134
Valve Accessories
136
Hydraulic Line
137
Wire Harness
138
Battery
141
Switch
142
Relay
147
Hood
148
Dashboard
150
Fender
152
Step
154
Seat Bracket
156
Driver Seat
158
Label
160
Pto Guard
166
Pto Shaft Cover
167
Oil Seal Cover
169
3-Point Hitch
170
Rear Hitch
172
Drawbar Hitch
173
Rops
174
Labels Safety
179
Support Frame
180
Bracket
181
Boom
182
Quick Link
183
Cylinder
184
Hydraulic Piping
186
Protector
188
Stand
189
Bucket
190
5
