Sx Series
Sx3100
Copyright 2010
Cub Cadet Yanmar LLC
REF
NO.
PART NUMBER DESCRIPTION QTY
1 CY-129232-01600 Flange, Mounting 1
2 CY-26206-100202 Bolt M10X20 8
3 CY-129052-01692 Sump Assy, Lub Oil 1
5 CY-124160-01910 Plug Pt1/4 1
6 CY-129232-01710 Cover, Oil Pan 1
7 CY-129054-01640 Drain Plug 1
9 CY-22190-120002 Seal Washer 12 1
10 CY-129555-01750 Pipe, Knock 1
11 CY-129001-91870 Bolt M 8X100 10
12 CY-129001-91910 Bolt M 8X120 4
13 CY-26106-080122 Bolt M 8X 12 Plated 6
14 CY-26106-080252 Bolt M 8X 25 Plated 6
15 CY-26106-080502 Bolt M 8X 50 Plated 2
16 CY-729402-01650 Case Assy, Oil Seal 1
18 CY-129120-01780 Seal, Oil 1
19 CY-129486-01670 Bolt M8X30,Collar Hd 9
9

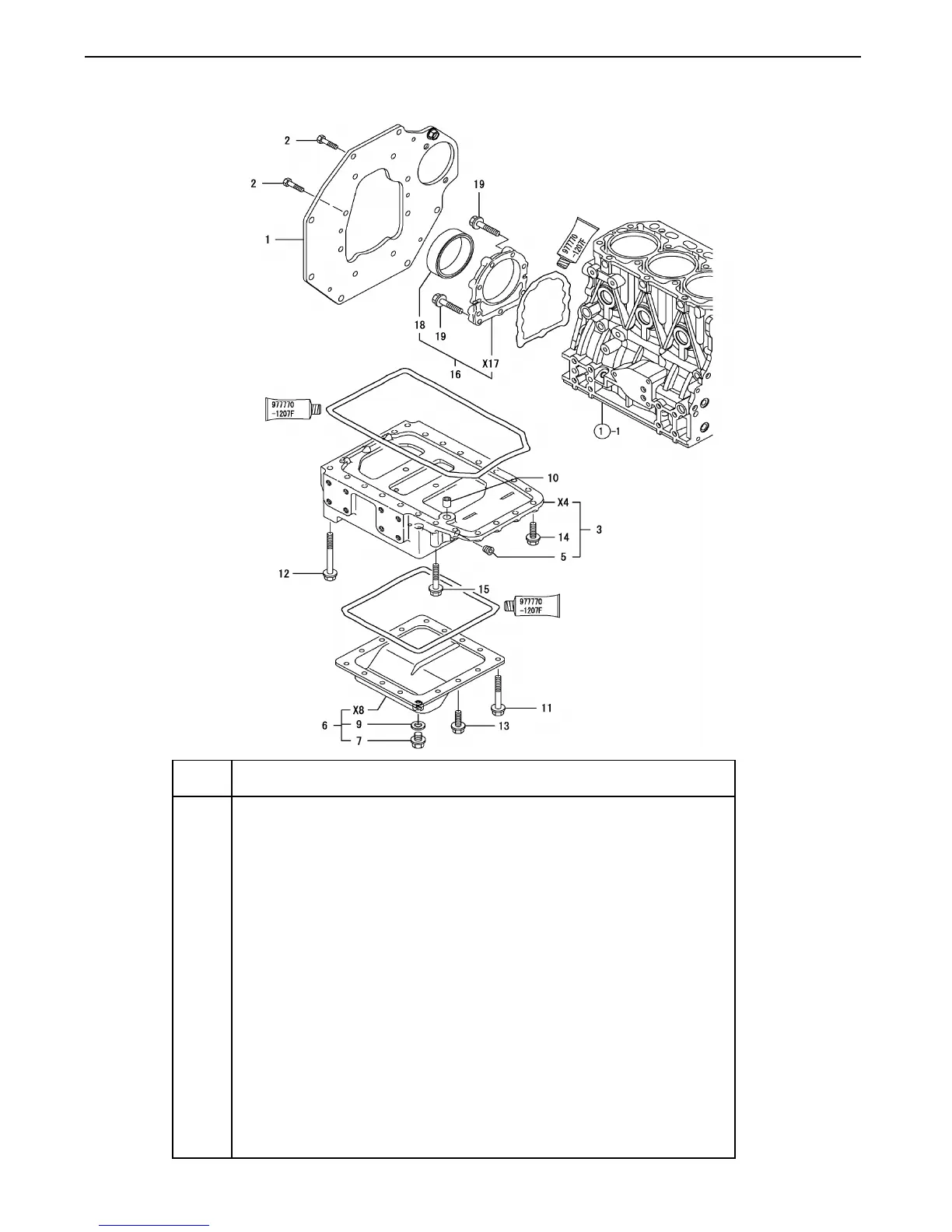

FIG. 3. MOUNTING FLANGE & OIL SUMP
