Remote Interlock Pin Assignments
In order to connect an external door switch to the remote interlock plug, the user must purchase
a replacement four pin Mini DIN Plug and an external door switch. Connect the external door
switch to the pin assignment found in the table below.
Pin Signal Name Signal Description
1 Return Connect to switch common
2 Remote Interlock Connect to Switch, Normally Open
3 None No Connection
4 None No Connection
3
2
1

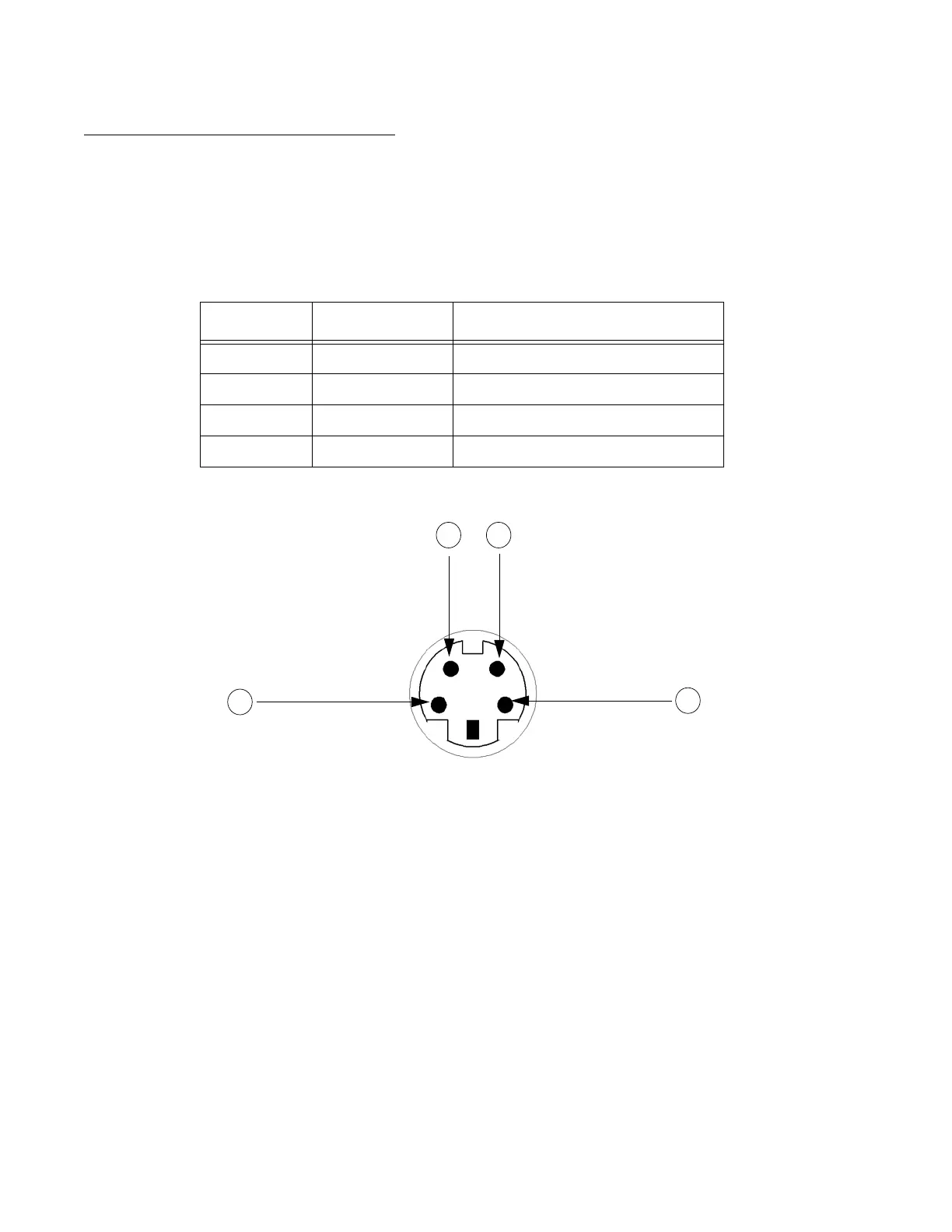

Remote Interlock pin assignments (mating face shown)
4
