APPENDIX B B-1
GenesisPlus Operator Manual
D1151, R
EV C, 10/16
Symbols

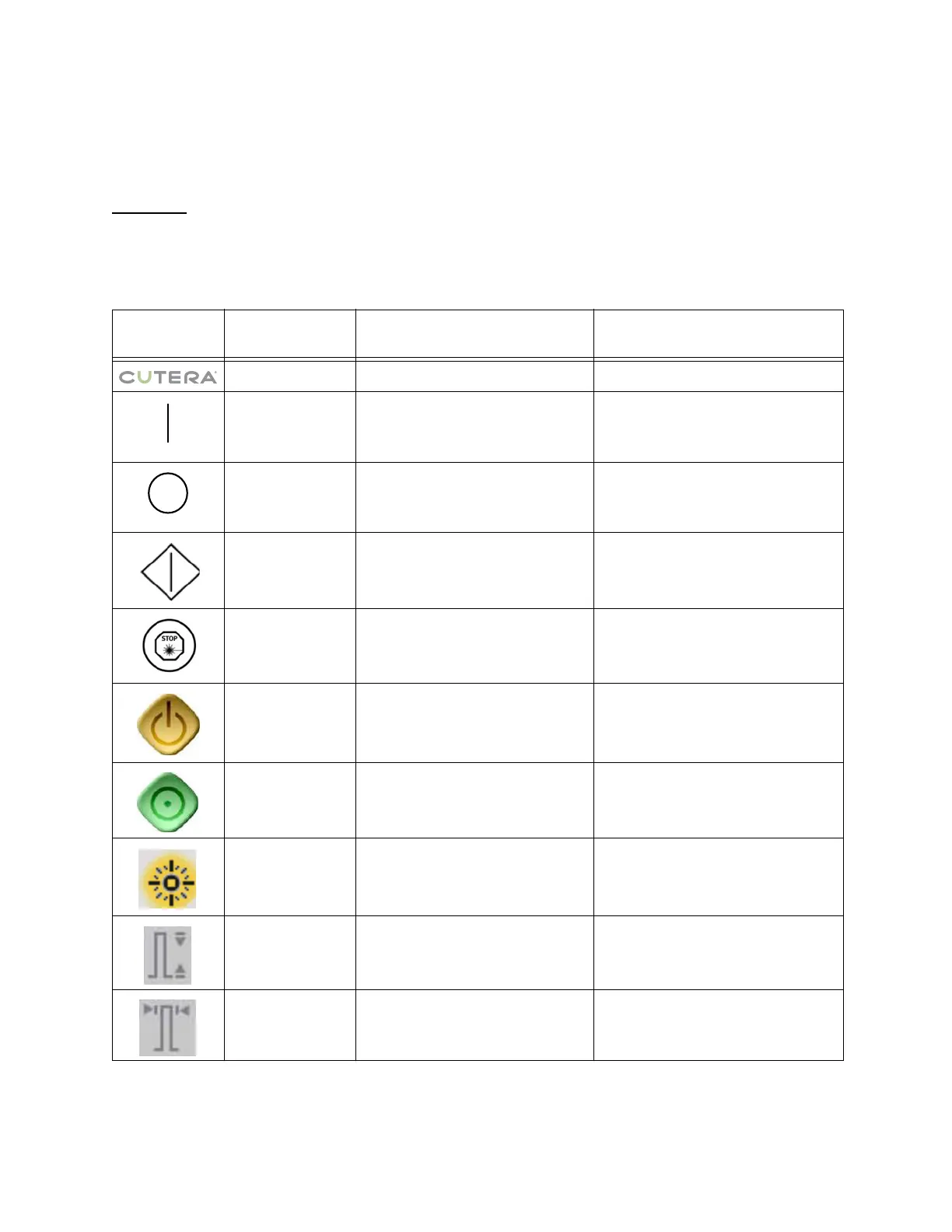

This appendix describes the laser system symbols and their meanings.
Symbol
Standard
Reference
Description Location
Cutera logo Control panel
417-5007 Mains ON Rear panel (at circuit breaker) and
control panel (next to keyswitch)
417-5008 Mains OFF Rear panel (at circuit breaker) and
control panel (next to keyswitch)
417-5104 Momentary start Control panel (next to keyswitch)
DIN 18734 Emergency OFF Control panel (next to red button)
417-5266 Standby Handpiece control screen
417-5264 Ready Handpiece control screen
Cutera-defined Laser emission indicator Handpiece control screen
DIN 18734
Fluence (J/cm
2
)
Handpiece control screen
DIN 18734 Pulse width (ms) Handpiece control screen
