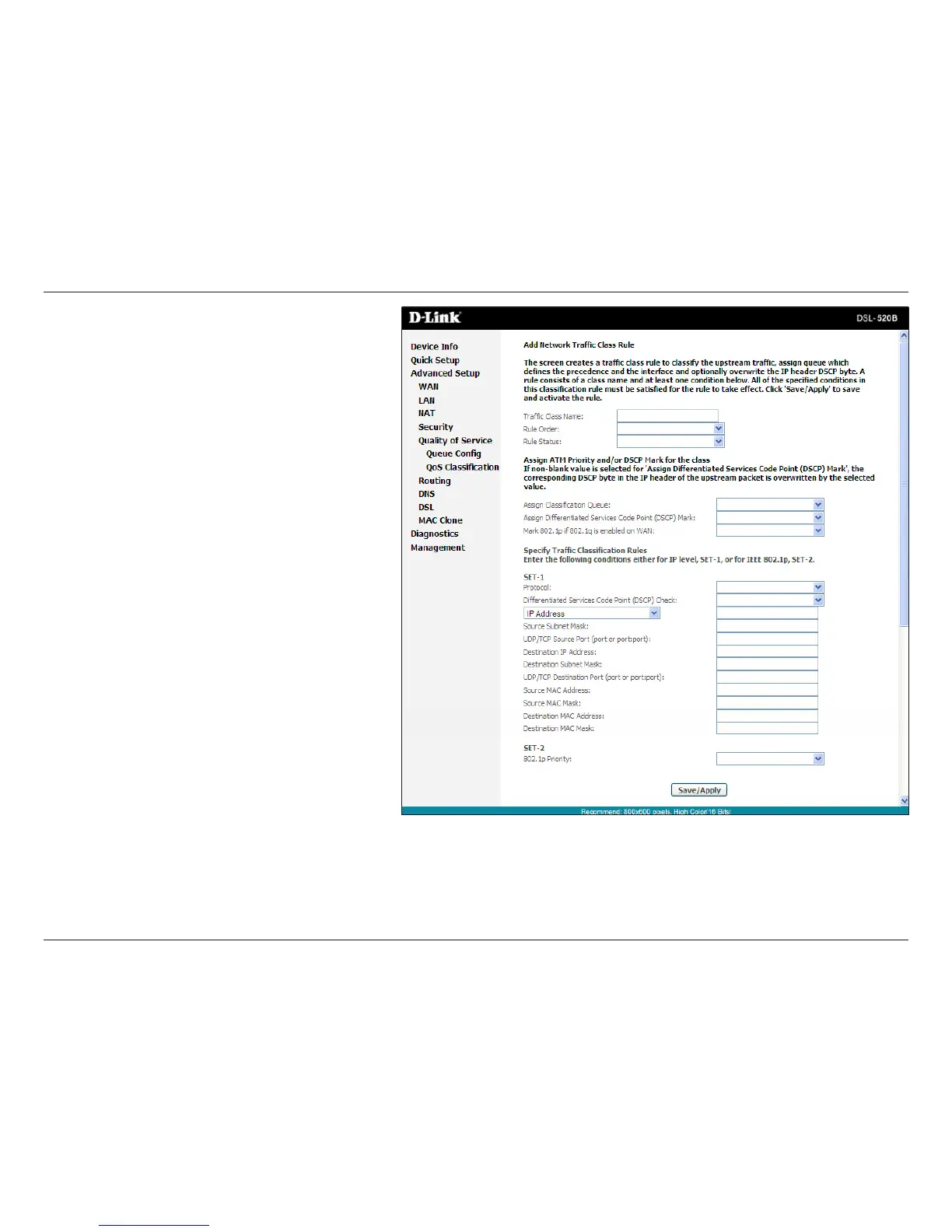

Trac Class Name: Enter a name of the class.
Rule Order:Selectorderforqueue.
Rule Status:Enableordisablethistracclassrule.
Assign Classication Queue:Selectaclassicationqueue.
Assign Dierentiated Service Code Point (DSCP) Mark:
Select a mark service that modies the original packet IP
header if all rules dened within the classication class are
matched.(CS-MarkIPPrecedence,AF-AssuredForwarding,
EF-Expedited
Forwarding)
Mark 802.1p if 802.1q is Enabled: Select an 802.1p priority
number that serves as the 802.1p value.
There are two sets of classication rules. Set-1 is based on
dierent elds within TCP/UDP/IP layer plus physical LAN
port. Set-2 is based on MAC layer IEEE 802.1p priority eld.
Set-1 Rules contain the following:
PhysicalLANPort:SelectoneamongEthernetportsand
