D-Link DSL-520B User Manual

75D-Link DSL-520B ADSL2+ Modem User Manual
Section 11 - Management

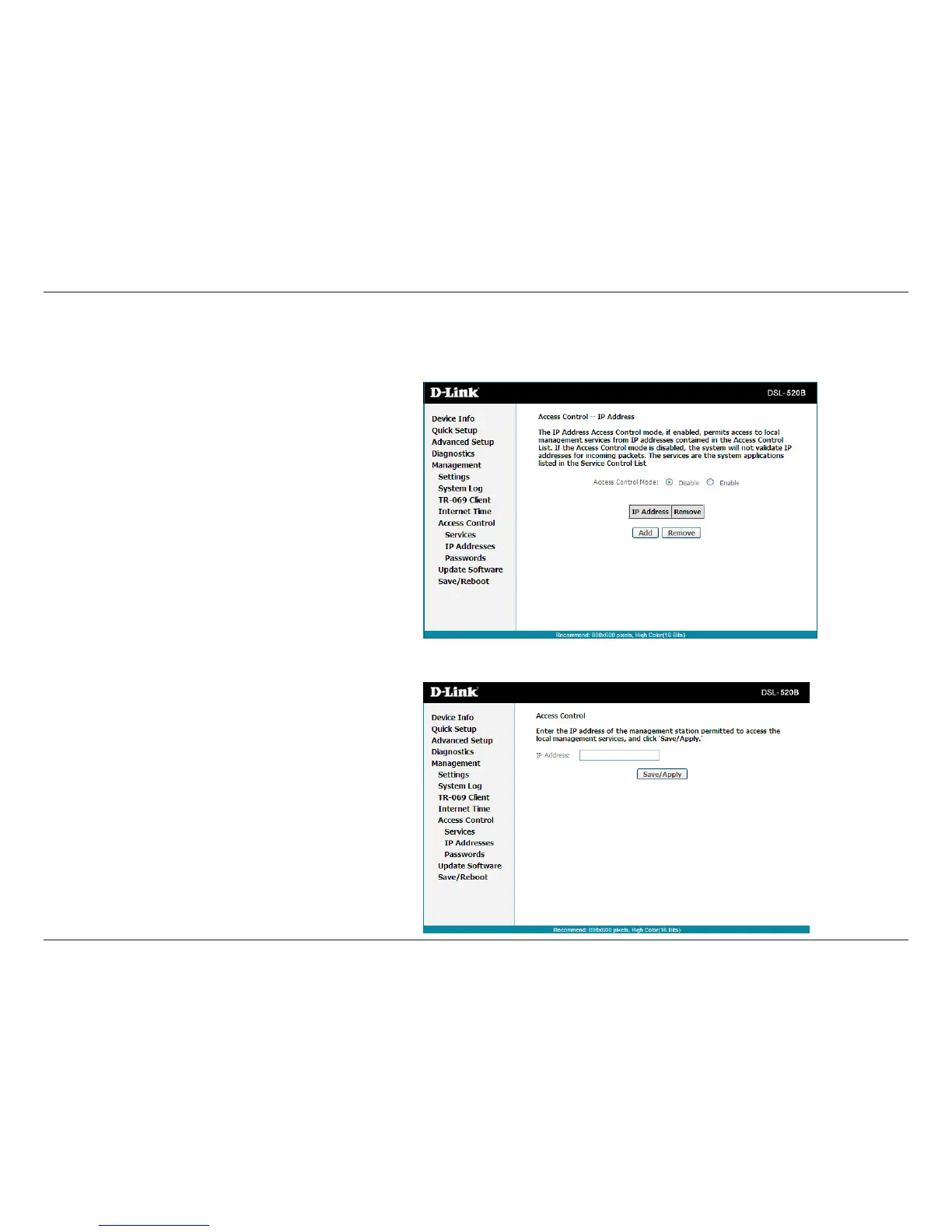

Access Control—IP Address
Web access to the modem can be limited when Access Control Mode is enabled.
Add the IP address to the IP address list by clicking on the Add
button,thenselectEnabled to enable Access Control Mode.
Enter the IP address of the management station permitted
to access the local conguration and click Apply. This will
return you to the previous screen where you can enable
access control.
IfAccessControlModeisdisabled,anyworkstationconnected
locally to your modem can access the web interface provided
the correct username and password is supplied at log on.

D-Link DSL-520B Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Interfaces

ADSL interface	RJ-11 connector
LAN interface	RJ-45 port
Ethernet	10/100BASE-T
