6D-Link DVA-5582 User Manual
Section 1 - Product Overview
Hardware Overview

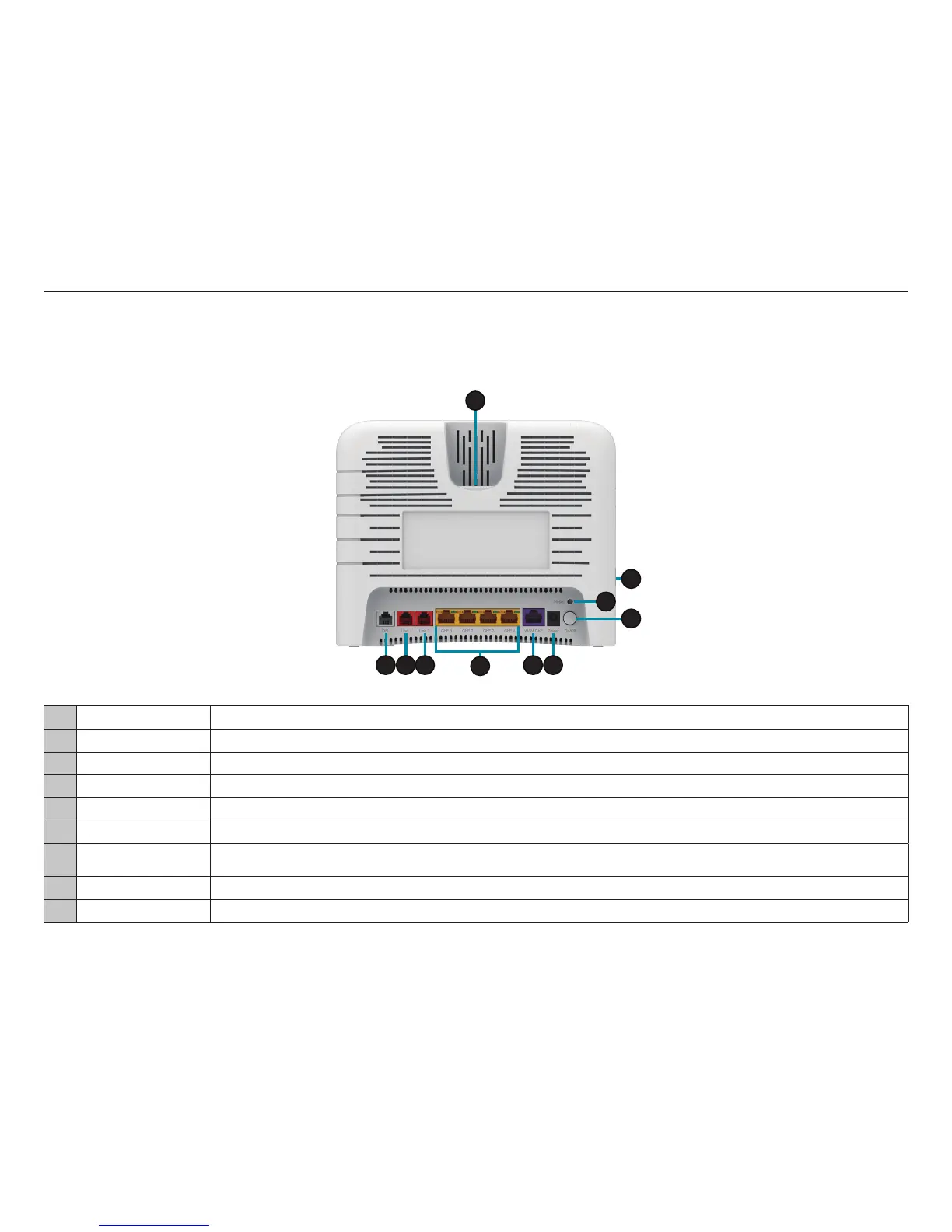

Rear View
1 DSL RJ-11 interface. Connect the router to DSL connector through a telephone cable.
2 PHONE (1/2) RJ-11 interface, using the telephone cable to connect the telephone set.
3 Gigabit LAN (1-4) RJ-45 interface for connecting to the Ethernet interface of PC or other Ethernet devices through an Ethernet cable.
4 Gigabit WAN RJ-45 interface for connecting to another router or Ethernet modem.
5 Power Input For connecting the power adapter. Power input is 12V DC, 2A.
6 Power Button Power on or o the device.
7 RESET
Reset to the factory defaults. Keep the device powered on, push a paper clip into the hole, press and hold the button
for 5 seconds, and then the system restores the default settings.
8 WPS Press for 1 second to enable WPS pairing. Press and hold for 10 seconds to disable Wi-Fi.
9 USB USB port, for connecting a 3G/4G dongle or other USB storage devices.
1
2
2
3
54
6
7
8
9
