D-Link MYDLINK DNR-322L User Manual

36D-Link DNR-322L User Manual
Section 3 - Conguration

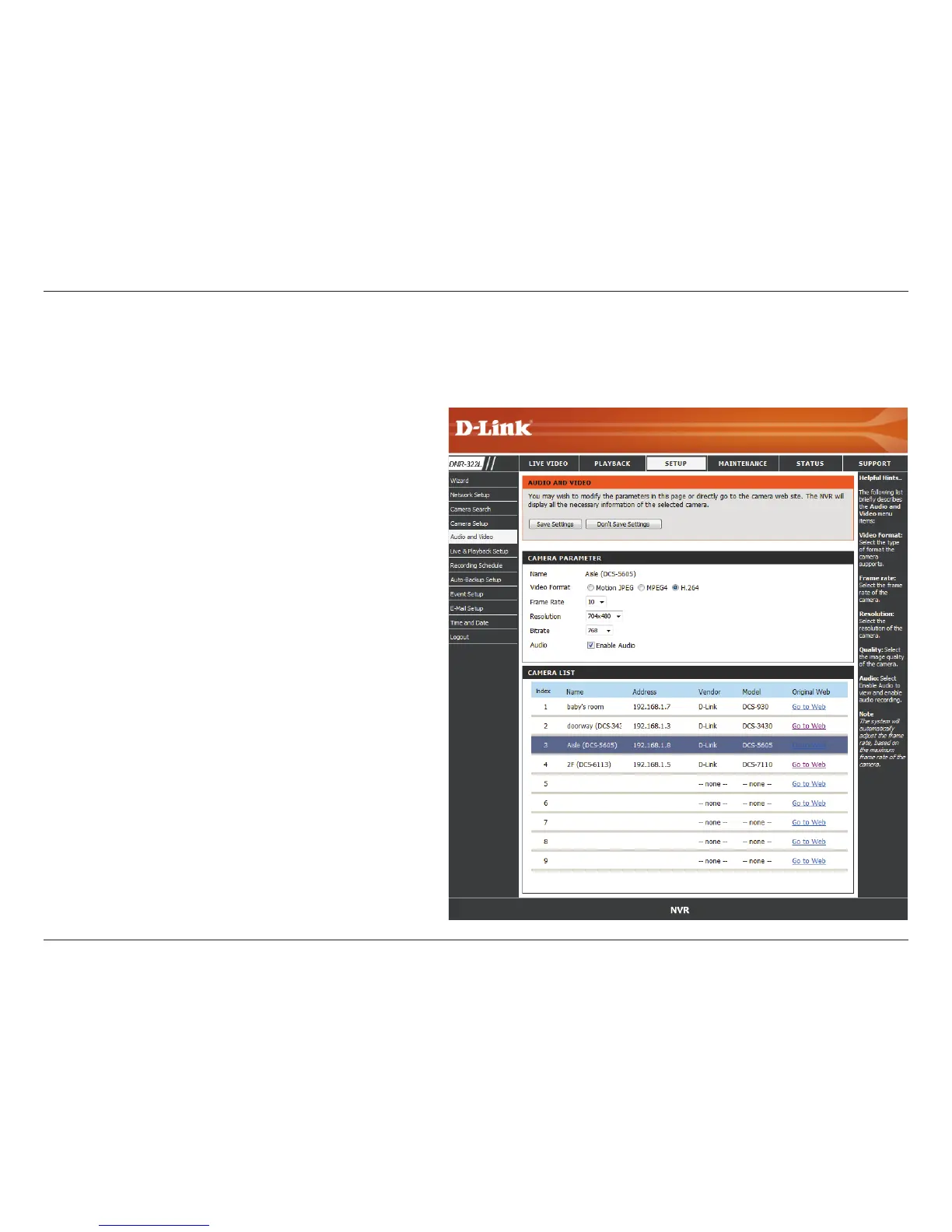

Audio and Video
Step 1: Select the camera which you would like to modify
in the camera list.
Step 2: NVR will display the parameters for the selected
camera. You can modify the information at this page.
Camera
Name:
Video Format:
Frame rate:
Resolution:
Quality:
Audio:
Go to Web:
The name of the camera.
Select the video format the camera supports.
Select the frame rate.
Select the resolution.
Select the image quality.
Check the Enable Audio option for live view and
recording
Click to connect to the web page of the selected
network camera for advanced setup. For example,
motion detection should be congured via the
camera web interface to enable the NVR to
receive the trigger message.
Step 3: Click the Save Settings button.
Note: The system will adjust the frame rate automatically based
on the maximum frame rate which that camera can support.
This section will allow you to congure and modify the audio and video parameters for each camera.

D-Link MYDLINK DNR-322L Specifications

Power

power adapter	DC 12V/4 A
max power consumption	25.20 W
standby state max power consumption	0.23 W

Operating Environment

operating temperature	0˚ to 55˚ C (32˚ to 131˚ F)
storage temperature	Operating: 5% to 90% (non-condensing)

Memory

flash rom	128 MB
ram	256 MB DDR II

Weight and Dimensions

dimension	4.53 x 5.76 x 7.03 inches (115 x 146.4 x 178.5 mm)
weight	0.875 kg (1.93 lbs)
