D-Link MYDLINK DNR-322L User Manual

41D-Link DNR-322L User Manual
Section 3 - Conguration

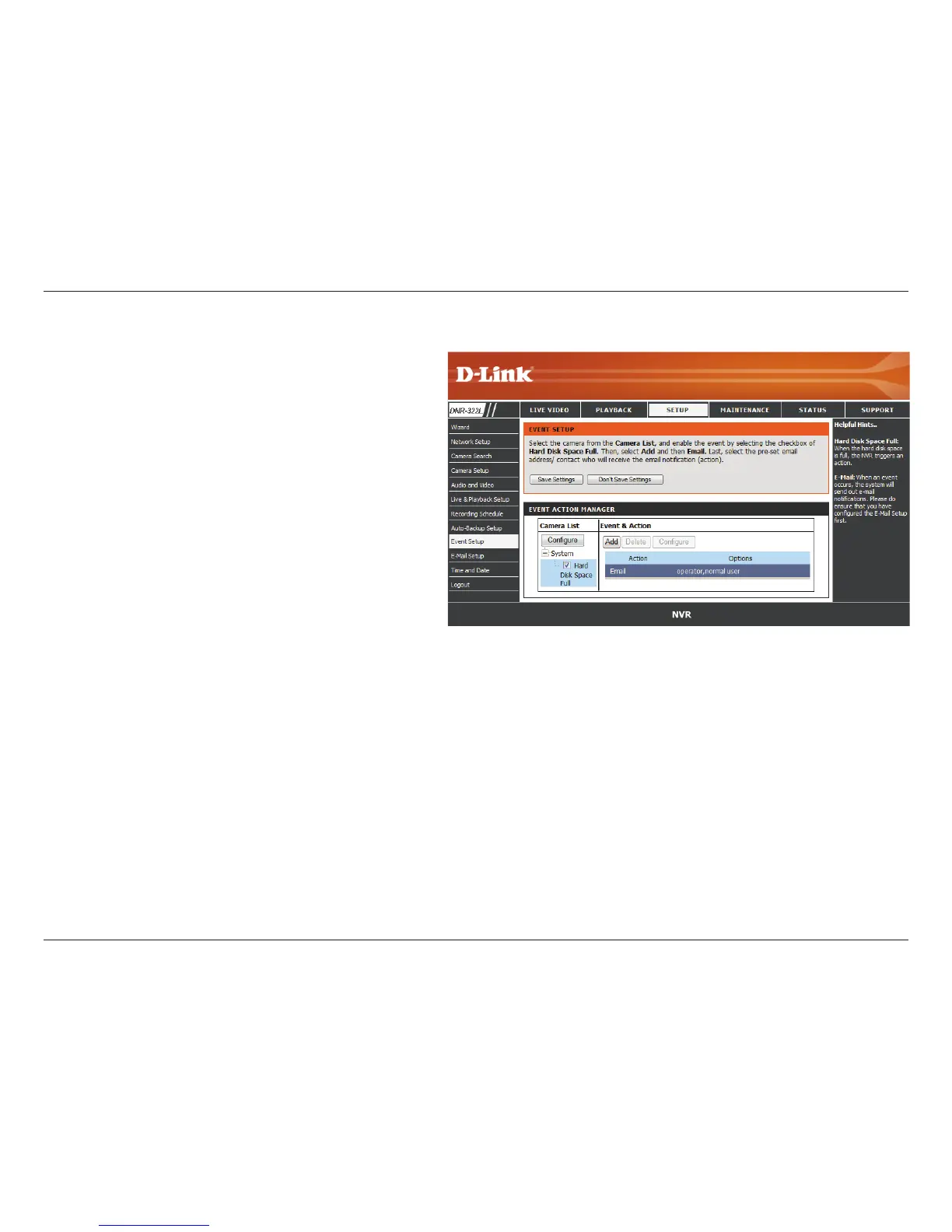

Event Setup
Hard Disk
Space Full:
When the Overwrite function is not enabled,
NVR will stop recording when HDD full.
Step 1: Select the event below.
E-mail: If the event occurs, the system will send an
E-mail to the pre-set contacts.
Step 2: Click the Add button to setup the actions of
the event.
Step 3: Click the action, and then click the Congure
button to modify the details of that action if necessary.
Step 4: Repeat step 2 through 3 to add more actions.

D-Link MYDLINK DNR-322L Specifications

Power

power adapter	DC 12V/4 A
max power consumption	25.20 W
standby state max power consumption	0.23 W

Operating Environment

operating temperature	0˚ to 55˚ C (32˚ to 131˚ F)
storage temperature	Operating: 5% to 90% (non-condensing)

Memory

flash rom	128 MB
ram	256 MB DDR II

Weight and Dimensions

dimension	4.53 x 5.76 x 7.03 inches (115 x 146.4 x 178.5 mm)
weight	0.875 kg (1.93 lbs)
