D-Link Wireless AC1200 User Manual

25D-Link DIR-850L User Manual
Section 3 - Conguration
Home

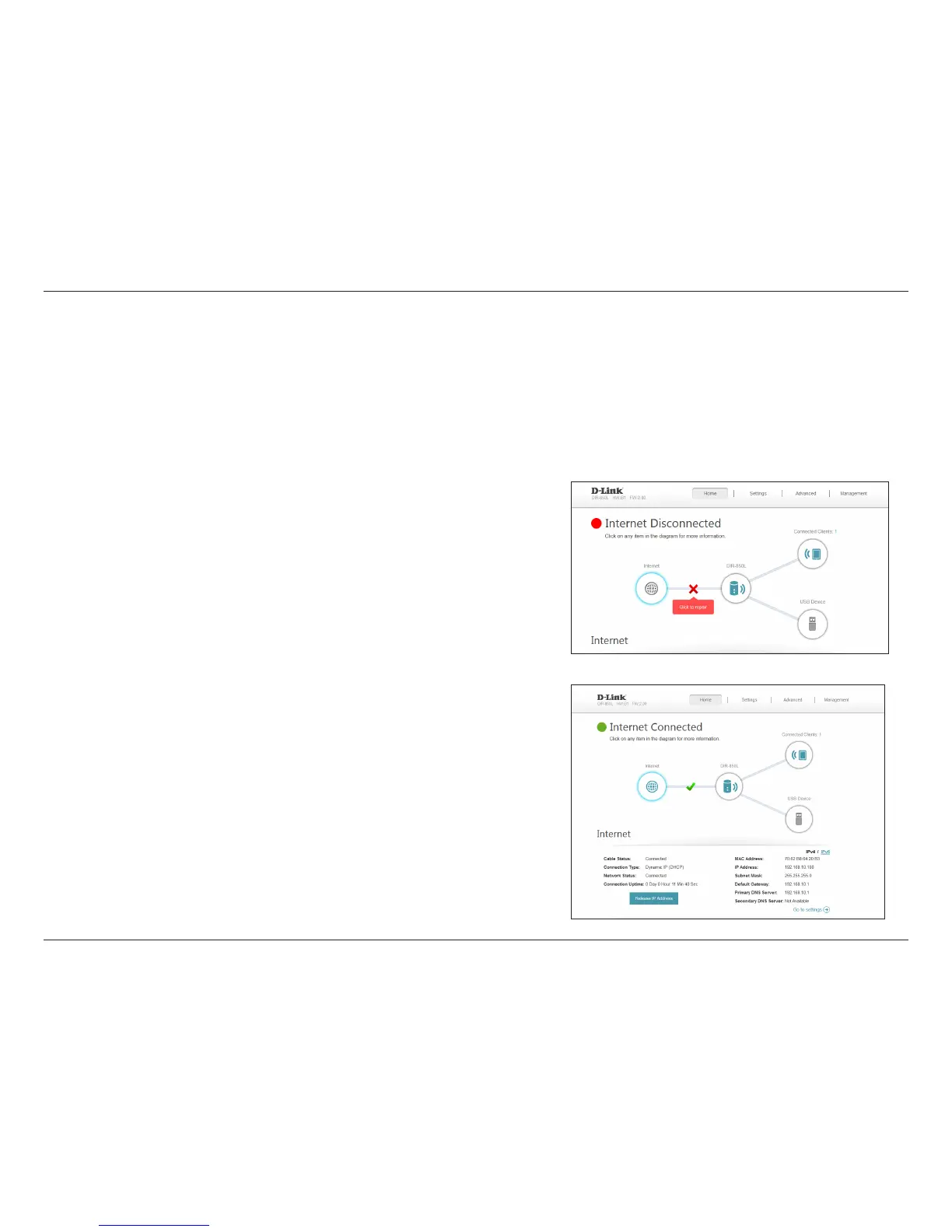

The current status of the router is displayed on the Home page in the form of an interactive diagram. You can click on an icon
to see information about the selected part of the network at the bottom of the screen.
The Home page shows whether or not the router is currently connected to the
Internet. If disconnected, click on Click to repair to launch the Setup Wizard.
(Refer to "Setup Wizard" on page 12.)
To view details about your Internet connection, click on the Internet icon. Click
Release IP Address to disconnect from the Internet. If you do this and wish to
reconnect, click Renew.
To recongure the Internet settings, refer to "Internet" on page 29.
Internet

D-Link Wireless AC1200 Specifications

General

Wireless Speed	1200 Mbps
LAN Ports	4 x 10/100/1000 Mbps
WAN Port	1 x 10/100/1000 Mbps
Wireless Standard	802.11ac
Frequency Bands	2.4 GHz, 5 GHz
Security	WPA, WPA2
Antenna Type	External
