DAELIM S2 125

11-5
TRANSMISSION/CRANKSHAFT/CRANKCASE

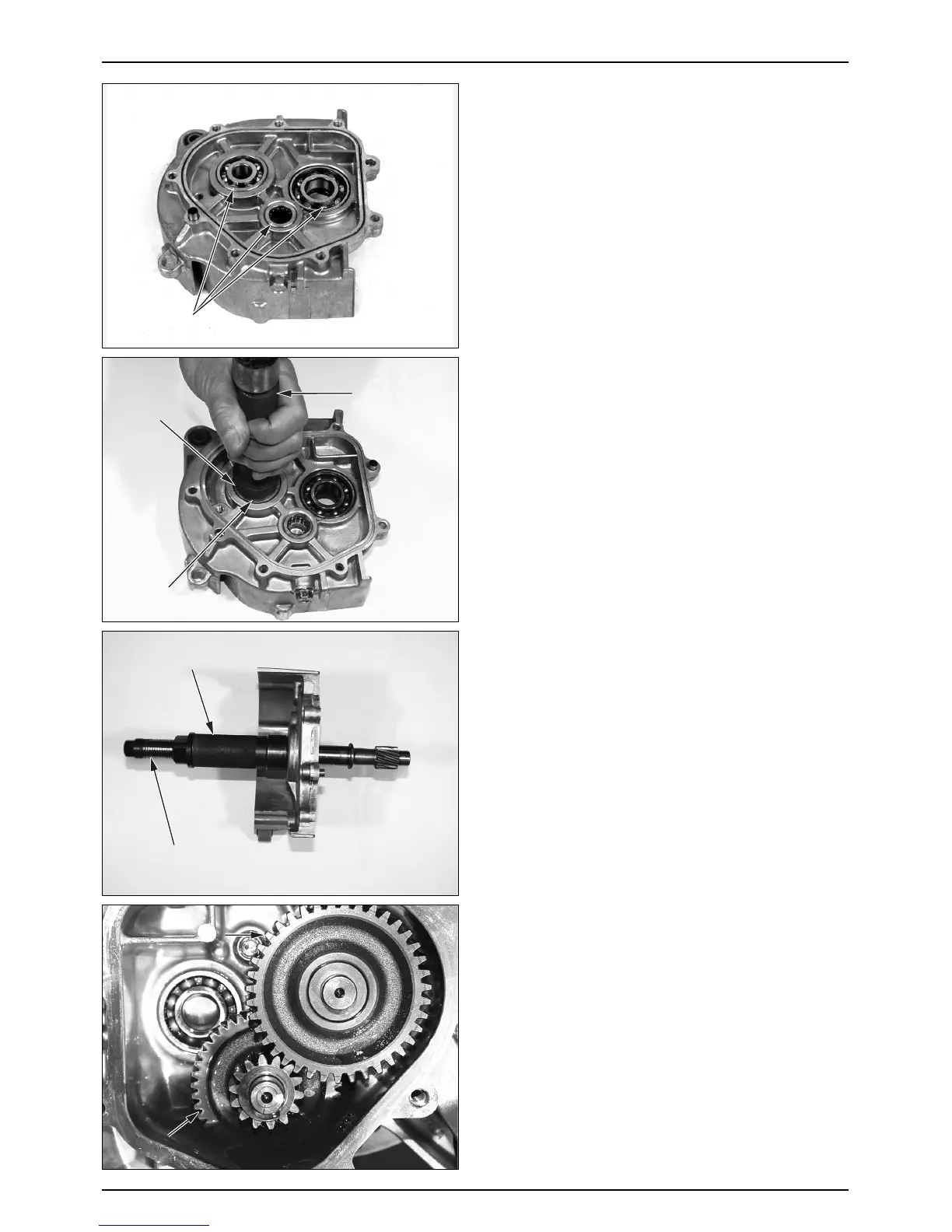

TRANSMISSION ASSEMBLY
● Install the drive shaft on the transmission cover.
● Install a new drive shaft oil seal.
TOOLS : CRANK ASSEMBLY SHAFT
CRANK ASSEMBLY COLLAR
TRANSMISSION BEARING INSPECTION
● Check that the bearing outer race fits the case tightly
without play.
● Turn the inner race and check that the bearing turns
smoothly and quietly.
● Replace the bearings if necessary.
● Install the bearing to the case with special tools.
TOOLS : DRIVE HANDLE A
OUTER DRIVER
DRIVER PILOT
● Check the LH. crankcase oil seal for wear or damage.
● Inatall the final shaft and counter shaft on the LH.
crank case.
BEARING
OUTER
DRIVER
OUTER
HANDLE
DRIVER
PILOT
CRANK ASSEMBLY COLLAR
CRANK ASSEMBLY SHAFT
FINAL SHAFT
COUNTER SHAFT
