DAELIM S2 125

11-6
TRANSMISSION/CRANKSHAFT/CRANKCASE

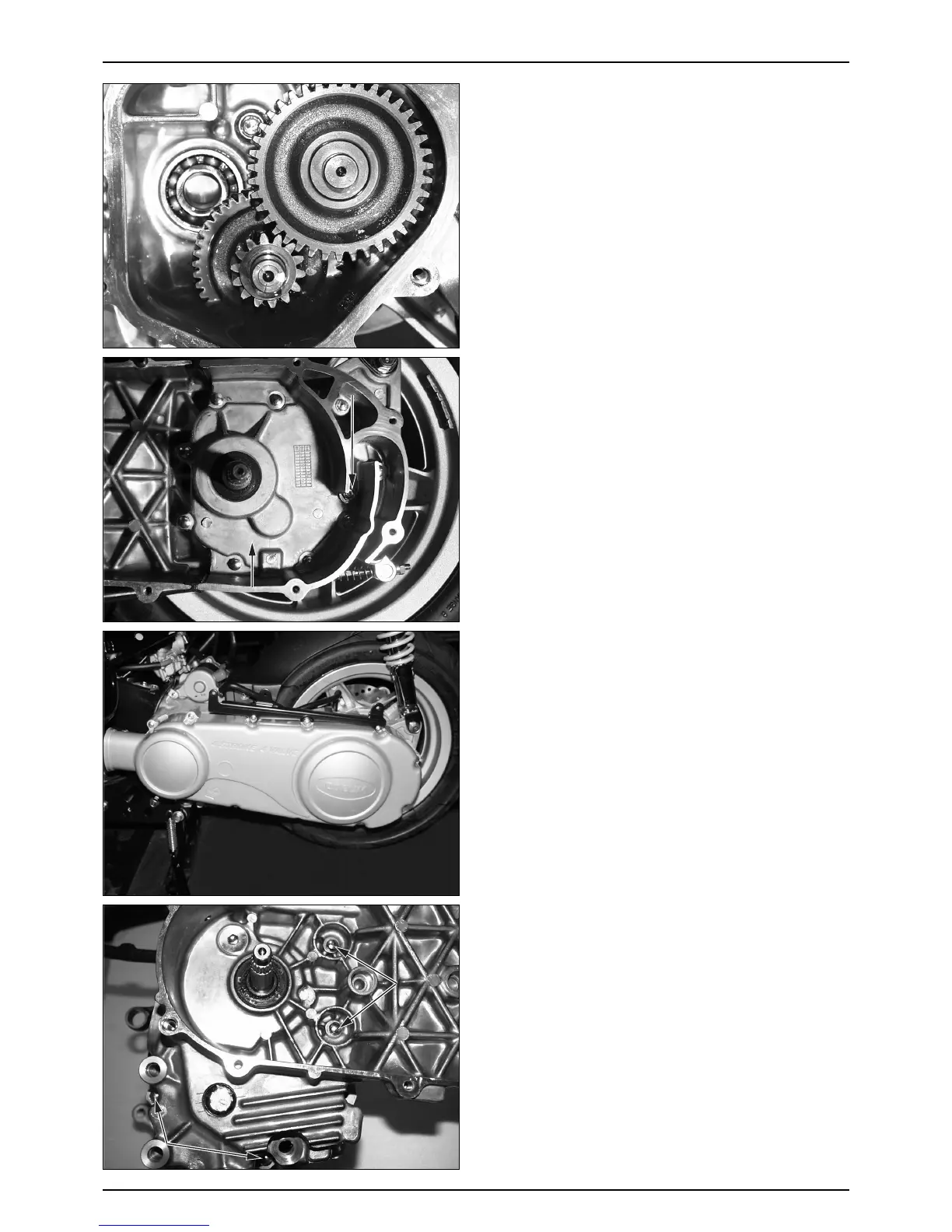

TRANSMISSION COVER
OIL CHECK BOLT
SETTING
BOLTS
SETTING
BOLTS
● Install a new gasket and dowel pin.
● Tighten the transmission cover with the setting bolts.
● Install the following parts.
-Rear wheel (⇨13-5 )
-Rear swing arm (⇨13-8 )
-Rear brake caliper (⇨13-3 )
-EX. muffler (⇨ 3-8 )
-Continuously variable transmission (⇨SECTION 7 )
-RH. crank case cover (⇨8-4 )
● Install the rear cushion upper bolt.
● Install the transmission bleeder tube.
● Remove the oil check bolt, release the transmission oil
filler ACG cap or the LH. crankcase until the oil
overflow through oil hole and fill the recommended oil
slowly.
● Install the oil check bolt and the cap.
RECOMMENDED OIL : SAE 80W- 90
TRANSMISSION OIL AMOUNT : 0.15
ℓ
● Loosen the 8 RH./LH. crankcase setting bolts.
CRANK CASE REMOVAL
● Remove the engine from the frame. (⇨6-2 )
● Remove the RH./LH. crankcase cover.(⇨8-4,7-2)
● Remove the transmission cover. (⇨11-3 )
● Remove the parts to disassemble crankcase.
