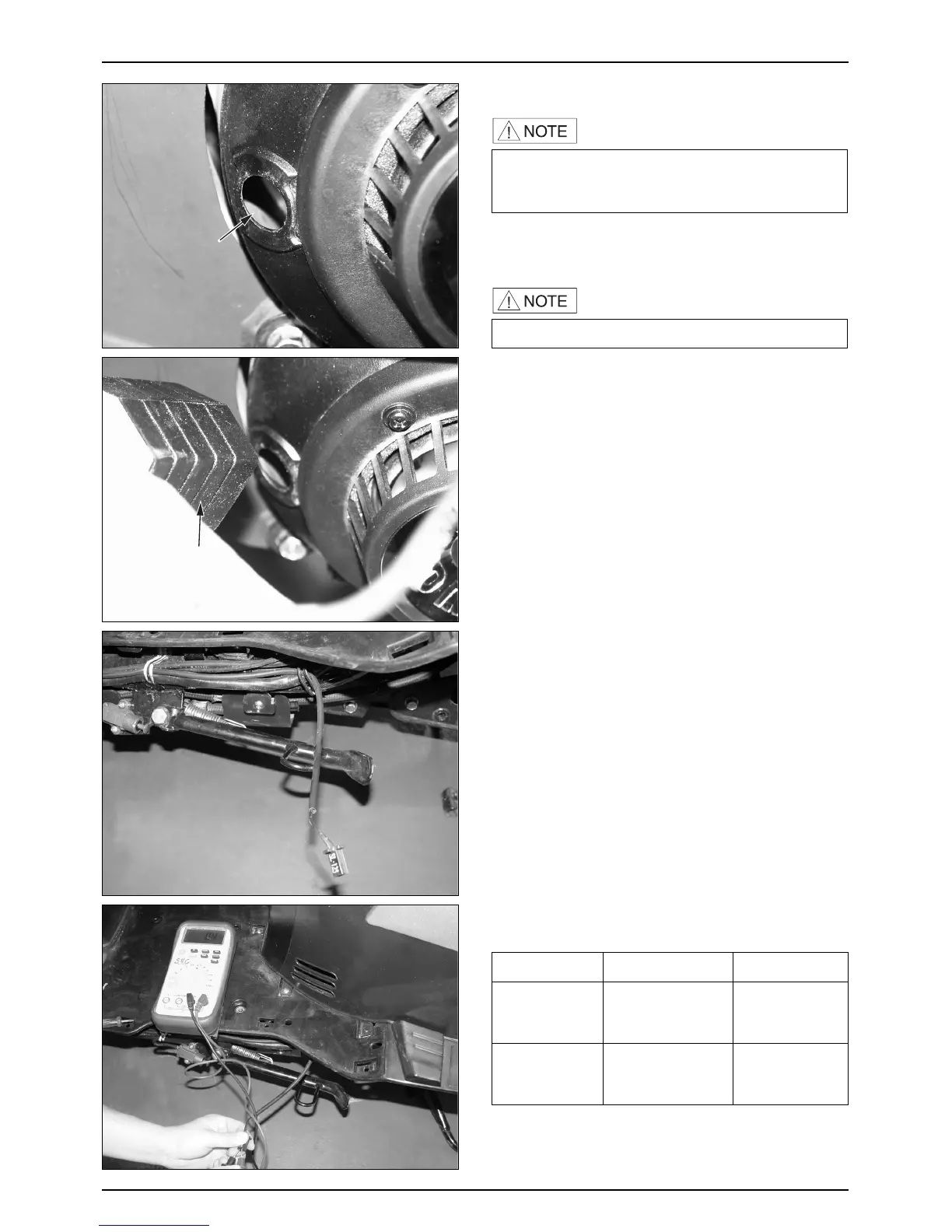

DAELIM S2 125

IGNITION TIMING INSPECTION
● Start and warm up the engine.
● Remove the plug maintenance cover.
● Connect the timing light to the high-tension cord.
● Remove the timing hole cap from the RH. shroud, and
start the engine.
● If the F mark on the rotor is aligned with the index
mark on the case at the correct idling speed, then the
timing is correct.
IDLING SPEED : 15
°
BTDC 1, 800 rpm
● Increase engine speed by rotating the stop screw on the
carburetor. At the engine speed greater than 4,000rpm,
the ignition timing is correct if the index mark is set
within the advance mark.
● Install in the reverse order of removal.
SIDE STAND IGNITION
CUT-OFF SWITCH
INSPECTION
● Remove the floor mat.
● Remove the RH. floor side cover. (⇨3-4)
● Remove the coupler of the side stand switch.
● Check for continuity between the terminal as shown
below ;
·As the system uses the CDI unit, the ignition timing
need not be adjusted. Check the ignition system if
the ignition timing is incorrect.
·Read the timing light manual prior to using it.
15-5
IGNITION SYSTEM
TIMING CHECK
TIMING LIGHT
ON
(Side stand is
lowered)
OFF
(Side stand is
retracted)
NO
CONTINUITY
CONTINUITY
BLACK AND
BLACK/BLUE
BLACK AND
BLACK/BLUE
ITEM TERMINAL SPECIFICATION
