15-6
IGNITION SYSTEM

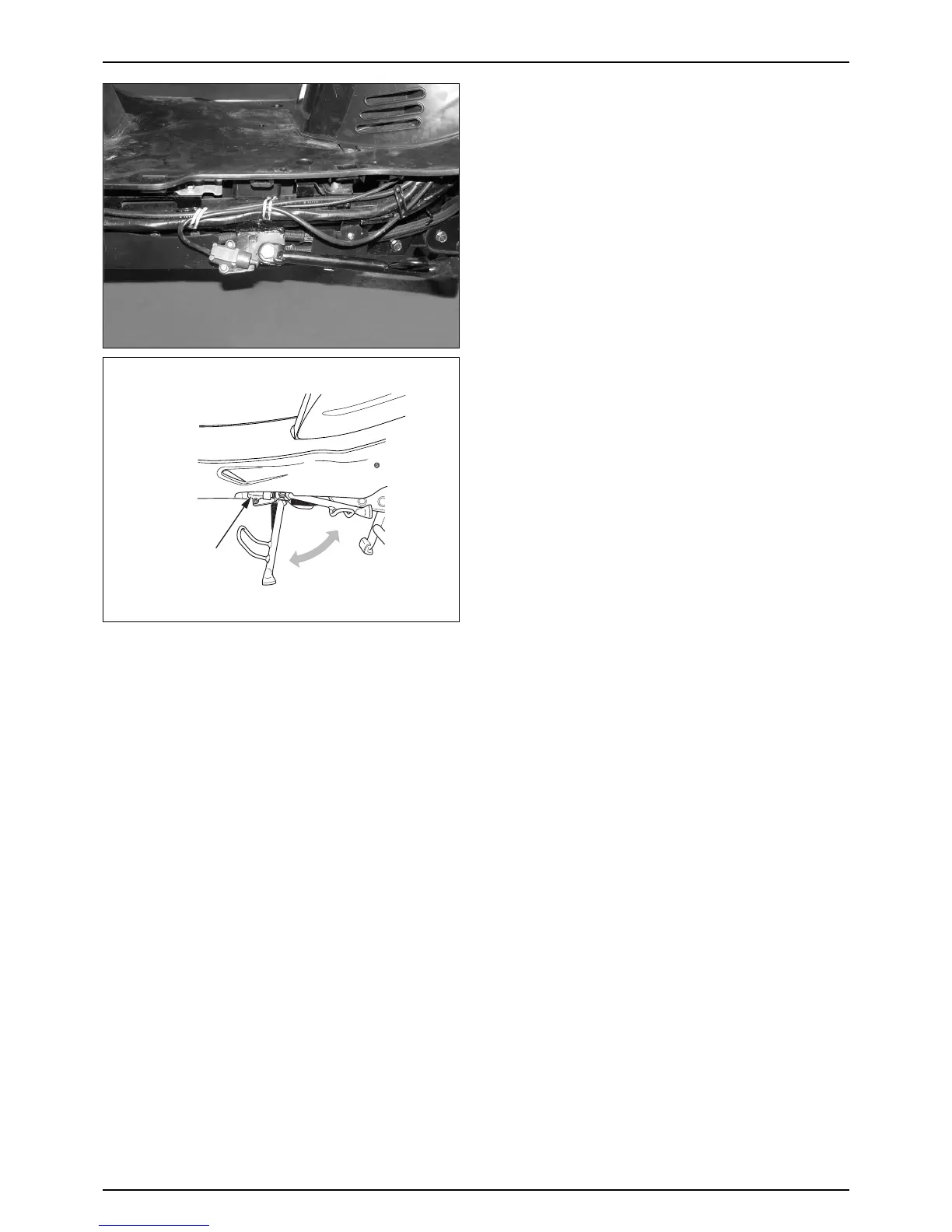

REMOVAL
Remove the floor mat.
Remove the center cover. (3-3)
Remove the RH. floor side cover. (3-4)
Remove the coupler of the side stand switch.
Remove the LH. floor side cover. (3-4)
Loosen the side stand switch mounting 2 bolts.
Release the wire clamps and remove the side stand
switch.
INSTALLATION
Install in the reverse order of removal.
Check the side stand ignition cut-off switch.
- Put the side stand up.
- Start the engine.
- Lower the side stand. The engine should stop as you
put the side stand down.
SIDE STAND
SWITCH
