DAELIM S2 125 Service Manual

4-6
LUBRICATION SYSTEM

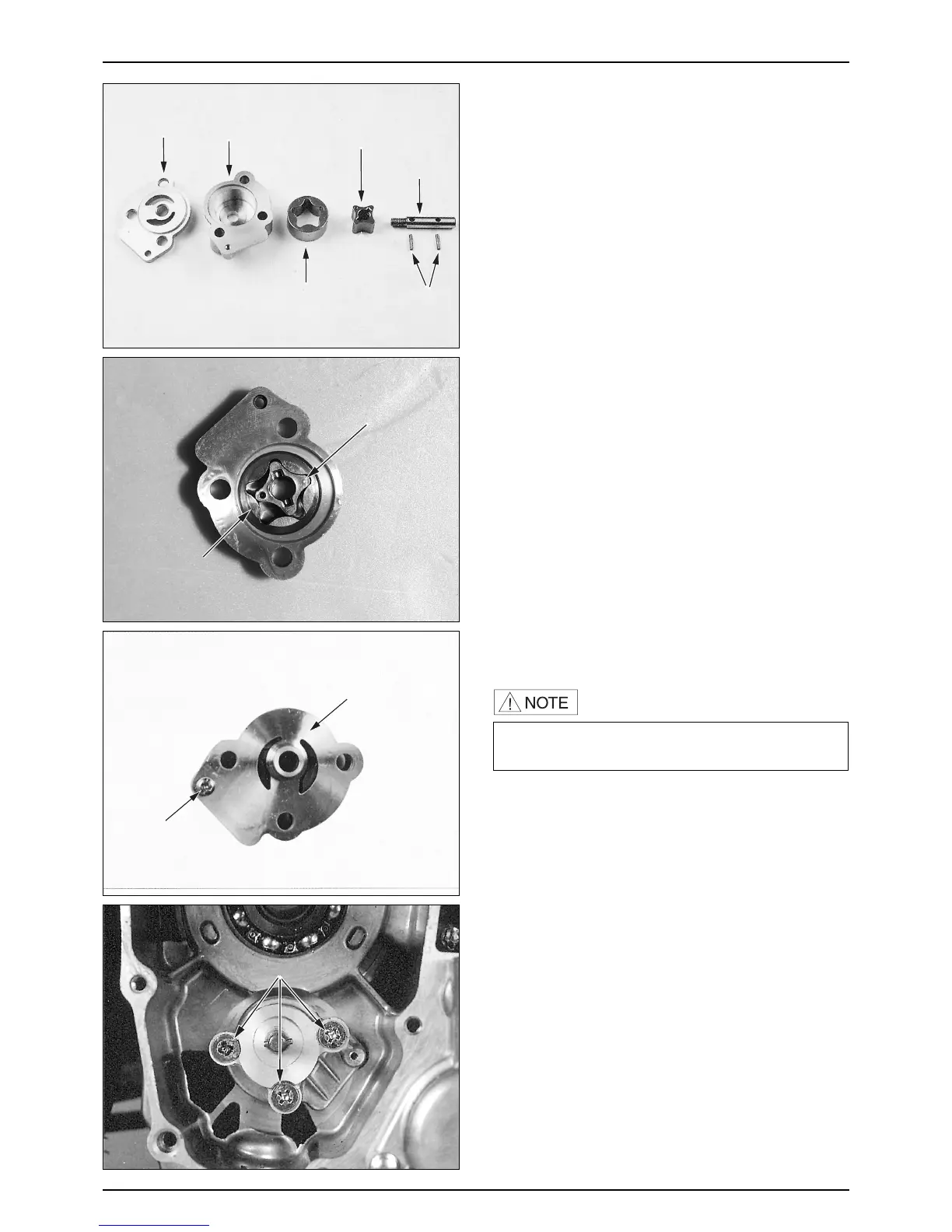

●Install the inner and outer rotors to the pump body.
●Assemble the pump shaft with setting pin.
OIL PUMP ASSEMBLY
●Clean all parts with fresh cleaning oil.
●Install the oil pump plate to the pump body.
●Tighten the pan screw.
OIL PUMP INSTALLATION
●Install the oil pump to the RH. crankcase.
●Install the following parts.
-Oil pump drive gear and driven gear.
-Starting clutch assembly. (⇨8-8)
-Starter driven gear and reduction gear (⇨8-5, 8-7)
-A.C. generator (⇨8-2)
-RH. crank case cover (⇨8-4)
-Shroud and cooling fan (⇨8-2)
-Rear swing arm (⇨13-7)
-Rear caliper (⇨13-3)
-Muffler (⇨3-8)
•After installing, check the oil pump to operate
smoothly.
PUMP PLATE
PUMP BODY
INNER ROTOR
PUMP SHAFT
OUTER ROTOR
ROLLER2.5x11.8
INNER ROTOR
OUTER ROTOR
PUMP PLATE
PAN SCREW
FLAT SCREW

DAELIM S2 125 Specifications

General

Displacement	124.6 cc
Fuel System	Carburetor
Front Suspension	Telescopic Fork
Rear Brake	Drum
Front Tire	120/70-12
Rear Tire	130/70-12
Cooling System	Air-cooled
Transmission	Automatic (CVT)
Front Brake	Disc
