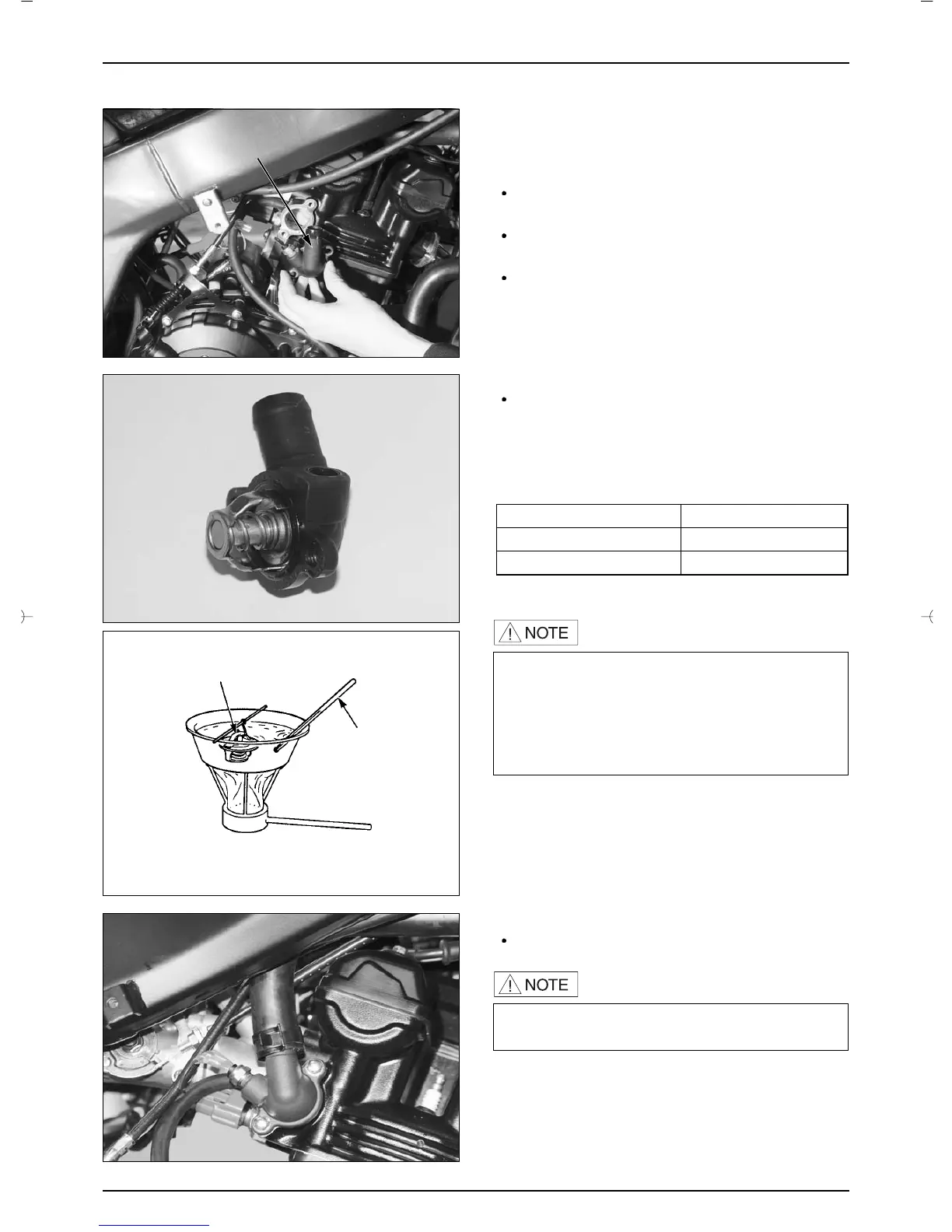

COOLING SYSTEM
THERMOSTAT
REMOVAL
Disconnect the water hose from the thermostat
cover.
Remove the 2 bolts and separate the thermostat
cover.
Remove the thermostat from thermostat cover.
INSPECTION
Suspend the thermostat in a pan of water over a burner
and gradually raise the water temperature to check its
operation.
Technical data
INSTALLATION
Install in the reverse order of removal.
• Do not let the thermostat touch the pan as it will
give a false reading.
• Replace the thermostat if the valve stays open at
room temperature.
• Test the thermostat after it is opened for about 5
minutes and hold the temperature at 70℃
• When assembling, the location of air vent hole
must be upward.
THERMOMETER
THERMOSTAT
6-11
Begins to open
Full-open
Valve lift
80±2℃
90℃±3℃
3.5~4.5mm
