DAELIM VJF125 - Page 216

15-11
REAR WHEEL/REAR SUSPENSION

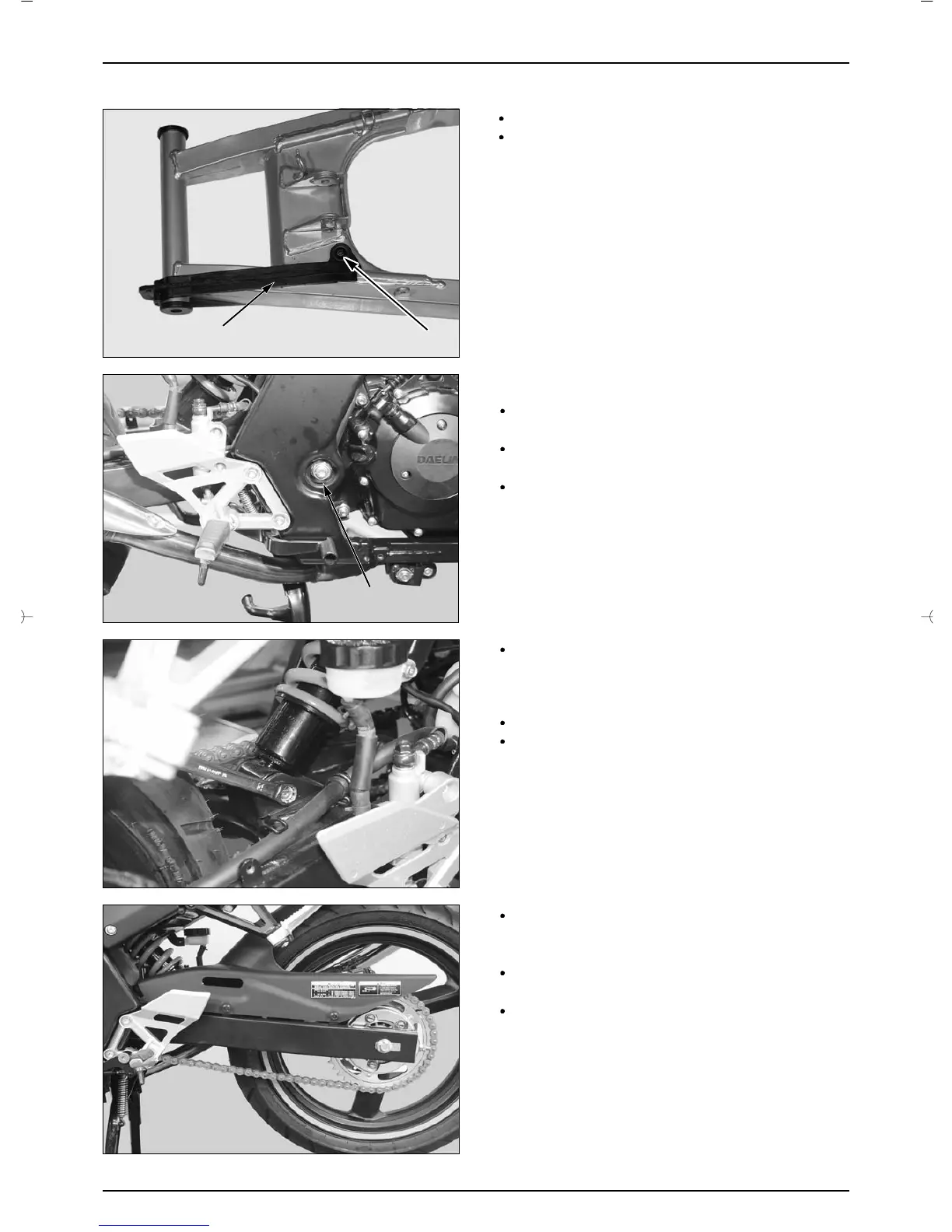

Install the dust seal caps into the swingarm.
Install the drive chain slider on the swingarm, then
tighten the screws.
TORQUE : 0.6 kgf
·
m ( 6 N
·
m)
INSTALLATION
Apply thin coat of grease to the swingarm pivot bolt
surface.
Align the drive chain installed swingarm to drive slider
and install the frame.
Install the pivot bolt from the left side and tighten the
u-nut to the specified torque.
TORQUE : 8.8 kgf
·
m
Install the swingarm-to-rear cushion lower flange bolt,
then tighten the bolt to the specified torque.
TORQUE : 4.0 kgf
·
m
Install the brake hose to swingarm clamp correctly.
Install the rear caliper bracket into the groove of the
swingarm.
Install the rear wheel mudguard and tighten the
mudguard 4 mounting bolts.
Install the rear wheel. (⇨15-3)
Install the removed parts in the reverse order of
removal.
