16-10
HYDRAULIC BRAKE

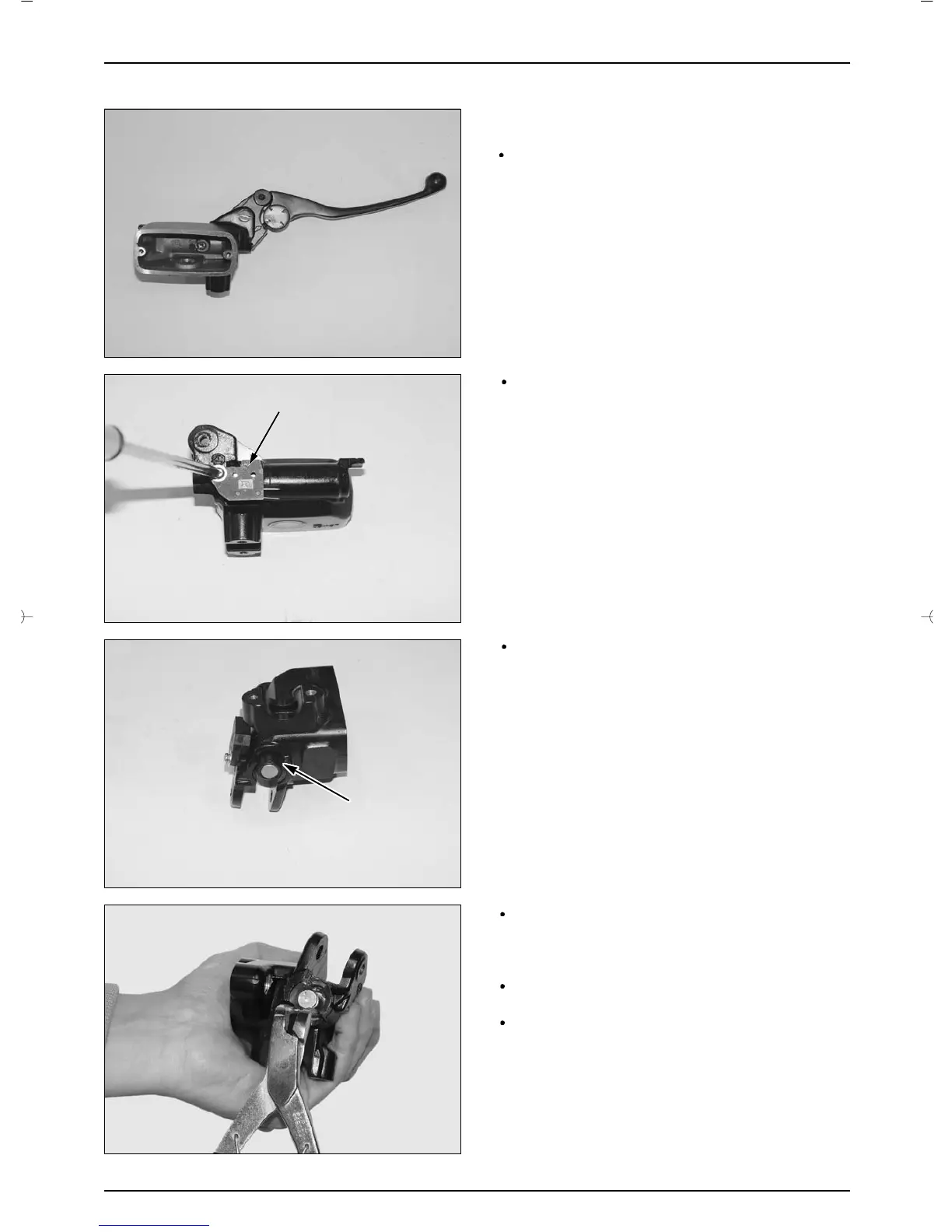

DISASSEMBLY
Remove the handle lever bolt/nut and RH. handle lever
assembly.
Loosen the screw and remove the front brake stop
switch.
Remove the boot.
Remove the circlip from the master cylinder.
TOOL : SNAP RING PLIERS
Remove the master piston and spring.
Clean the inside of the cylinder and reservoir with
brake fluid.
