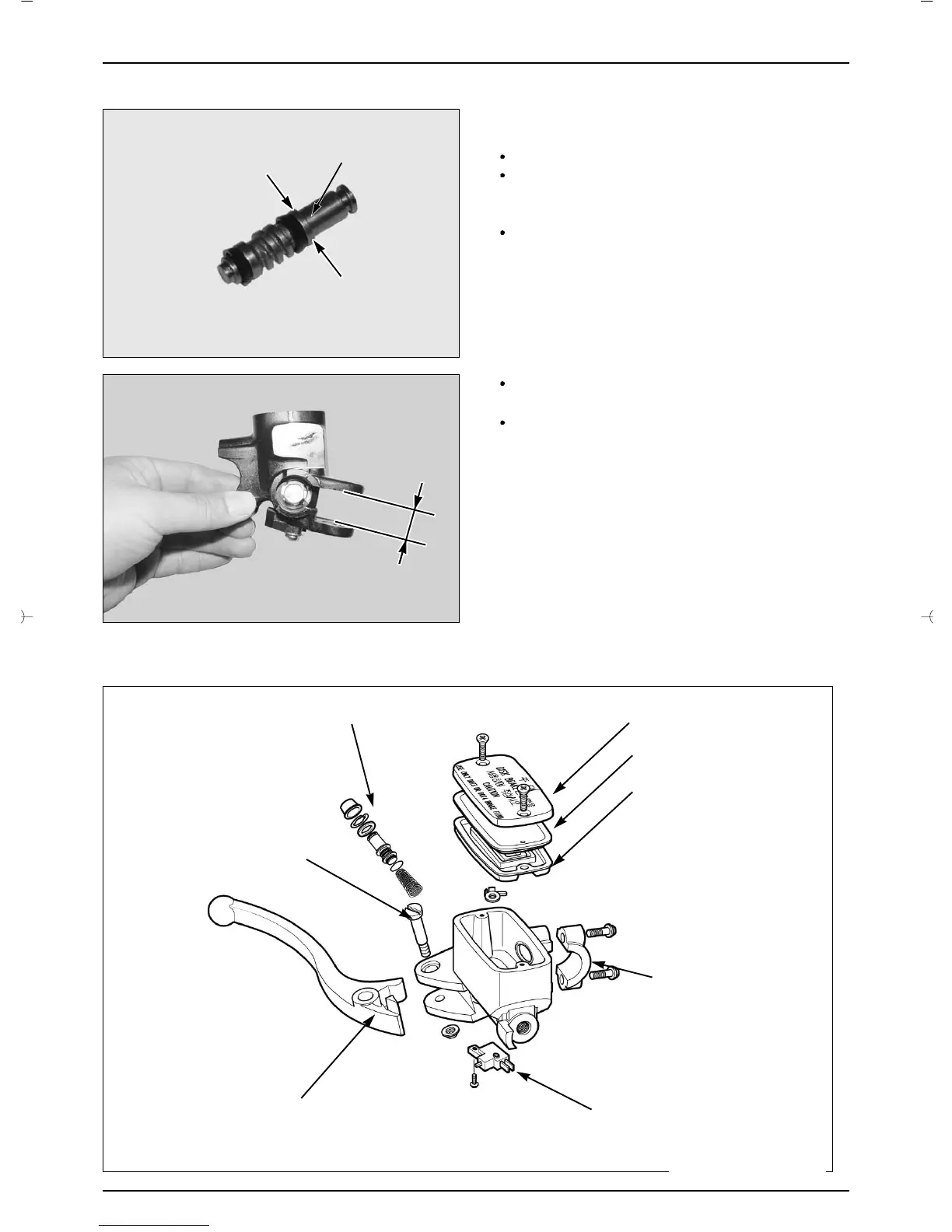

DAELIM VJF125 - Page 228

16-11
HYDRAULIC BRAKE
INSPECTION
Check the piston for abnormal scratches.
Check the primary cup and secondary cup for fatigue
or damage.
Measure the master cylinder piston O. D.
SERVICE LIMIT : 13.866mm
ASSEMBLY
Check the master cylinder for abnormal scratches.
Measure the master cylinder I.D.
SERVICE LIMIT : 14.055mm
MASTER CYLINDER PISTON SET
MASTER CYLINDER HOLDER
MASTER CYLINDER CAP
DIAPHRAGM PLATE
DIAPHRAGM
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
MASTER CYLINDER PISTON
FR. STOP SWITCH
RH. HANDLE LEVER
HANDLE LEVER BOLT
