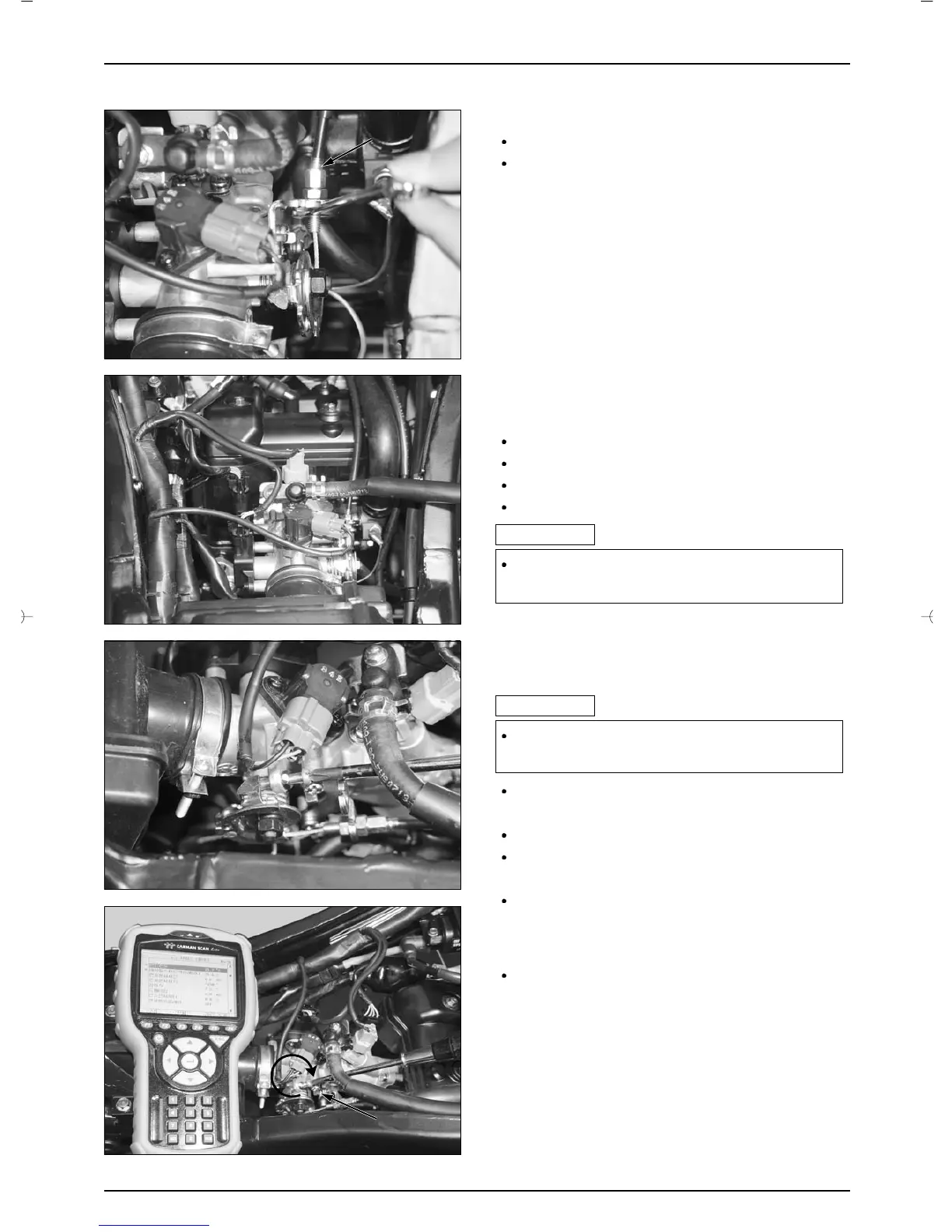

DAELIM VJF125 - Page 67

EMS(Engine Management System)
5-16
ASSEMBLY
Assemble the throttle cable.
Adjust the free play of throttle grip.
ADJUSTMENT OF IDLE SPEED
ACTUATOR (ISA)
The vehicle is warms up enough to adjust the
idling speed.
Disconnect the RH. side cover.
Connect the coupler of scanner to the coupler
of diagnostic tool.
Press the POWER button on the scanner and
check the ISA value.
If the ISA value is not around 20% adjust it
using the adjust screw to around 20% in 80~90 ℃
of engine temperature.
INSPECTION OF SENSOR AND
ACTUATOR
Connect each sensor and the actuator coupler.
Check the ISA.
Check the TPS.
Check the MAPAT sensor.
!
CAUTION
△
Be sure to the valve of TPS is whether the
standard valve after it became assembly.
!
CAUTION
△
The ECU is always initilized, before the engine
is starting.
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
THROTTLE CABLE
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
ADJUST SCREW
