DAELIM VJF125 - Injector

EMS(Engine Management System)
5-17

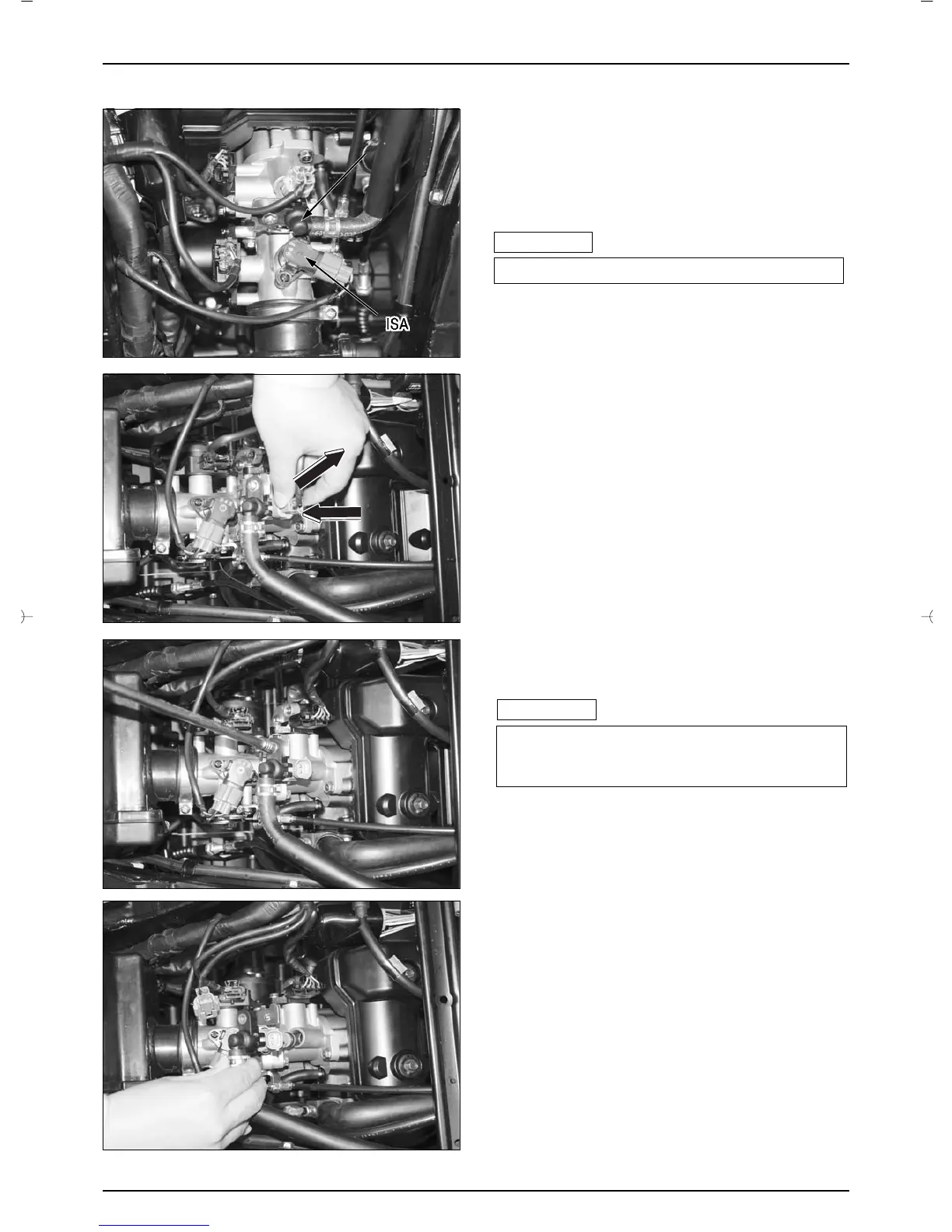

Remove
• Remove the fuel tank.
• After push the injector coupler, pulling it
upward.
• Remove the injector cap bolt.
• Be sure to injector the gasoline, after remove
the coupler from the ignition coil.
• It could be damaged for the fire, sparked on the
spark plug.
• Remove the injector.
Assemble
• Install in reverse order of removal.
9.INJECTOR
•Be sure to check the engine is cooling because
a little gasoline remains. it could be still hot
and it could be cause fire.
!
CAUTION
△
•The key is off before disassembly.
!
